Wireless Estate Intercom
WIRELESS
A
G
F
H
How it Works:
A visitor without an entry code presses the CALL button on
the keypad. The base (indoor) unit and the keypad will ring.
A user at the base (indoor) unit answers the call by pressing
the PUSH TO ANSWER/TALK button. The user at the base
unit then presses the GRANT PERMISSION button to allow
the visitor to operate the gate. The keypad's GRANTED
light comes on, indicating that the visitor can now push any
number key on the keypad to open the gate.
Visitors with access codes simply use their code to operate
the gate. Temporary codes can be programmed to expire
within a set number of days.
GTO Access Systems, LLC • 3121 Hartsfield Road • Tallahassee, Florida 32303
Telephone (850) 575-0176 • Fax (850) 575-8912 • www.gtoinc.com • www.gtoaccess.com
rev - 10/30/17
Installation Manual
C
B
D
E
PROFESSIONAL RESIDENTIAL

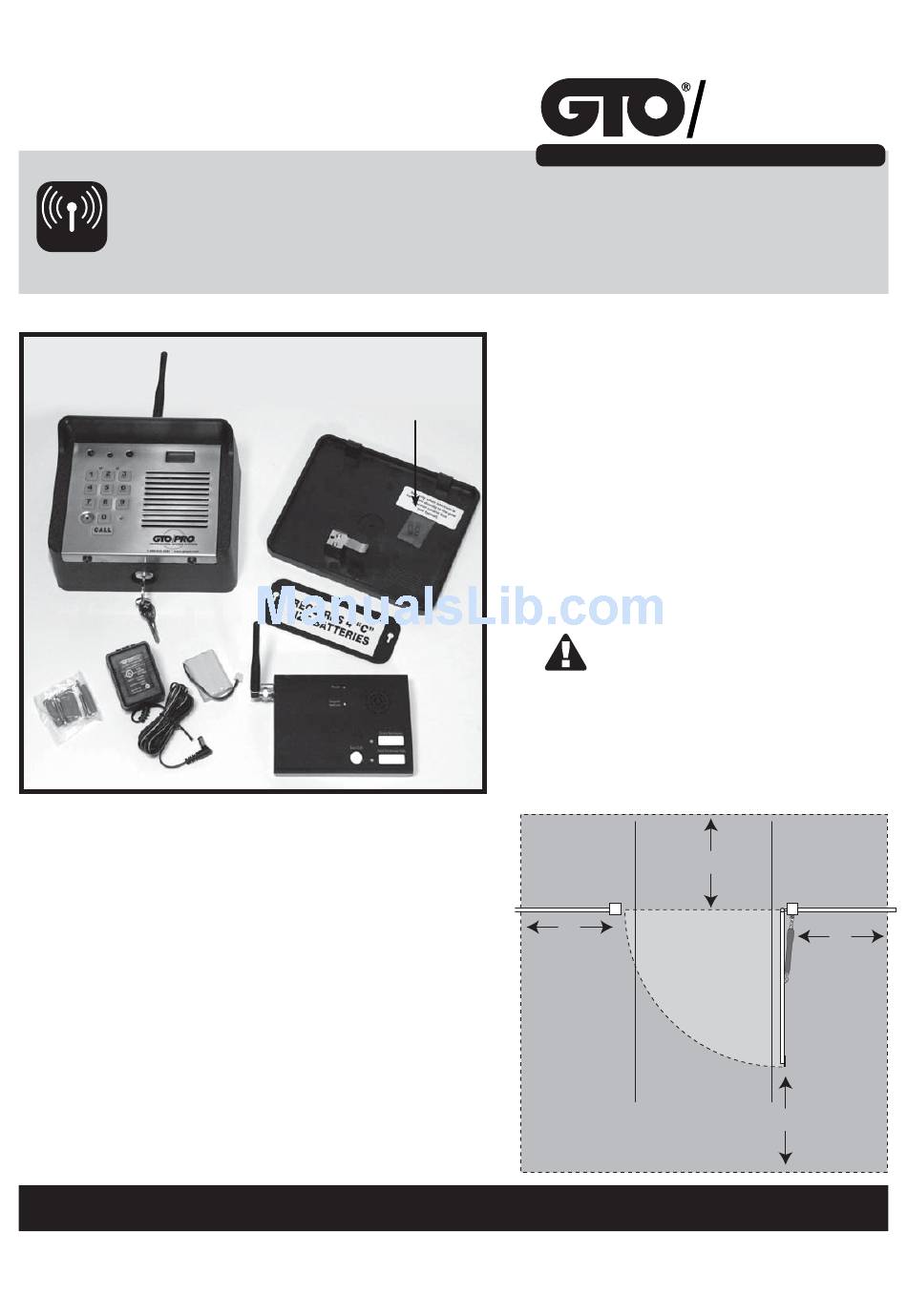

Kit Includes:
A. Keypad
B. Keypad Cover
C. Jumper (required for hard-wired installation)
D. Keypad Battery Cover
E. Base Unit
F. Base Unit Rechargeable Battery
G. Transformer
H. Screws for mounting Keypad Cover
WARNING
NEVER install the keypad portion of this
system where a person can reach through
the gate to activate it, or where a person can
touch the gate while activating the keypad.
The
recommended
between the gate and keypad is 10 ft.
10'
Moving Gate
Area
Driveway
NEVER INSTALL
any control device
within gray area
ACCESS
SYSTEMS
minimum
distance
10'
10'
10'
©2017 GTO Access Systems, LLC
Printed in China for GTO
