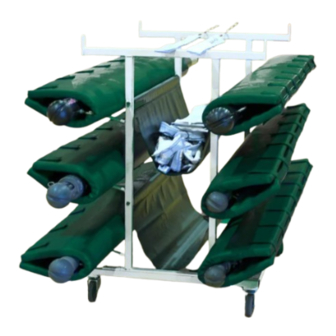

Bison Six Post Deluxe Volleyball Cart VB96 Instruction Manual

P A R T S L I S T
Item Qty Description
A 2 Cart Side
B Horizontal Tube
4
C 1 Cart base
D 4 Caster
E 2 Black Vinyl Hammock
F 16 3/8 x 3/4" Hex Bolt
♦
Inspect all contents prior to installation. Report any missing parts to dealer immediately.
♦
Read all instructions before proceeding.
1. Attach the four Casters (D) to the Cart Base (C) using 3/8-16 x 3/4" Hex Bolts (F), 3/8" Flat Washer
(H) and 3/8" Lock Washer (I). Set the assembly aside. See Figure 1.
2. Attach the Horizontal Tubes (B) to one of the Cart Sides (A) using the 1/2 x 2" Hex Bolts (K).
3. With all of the Horizontal Tubes (B) attached to one of the Cart Sides (A) slide the Black Vinyl
Hammocks (E) over the Horizontal Tubes (B). The Black Vinyl Hammocks (E) should drape down to
hold your nets, ect. See Figure 1.
4. Attach the remaining Cart Side (A) to the other end of the Horizontal Tubes (B) using the remaining
1/2 x 2" Hex Bolts (K). See Figure 1.
5. Place the Cart Side (A), Horizontal Tube (B), and Black Vinyl Hammock (E) assembly on the Cart
Base (C) and attach using 3/8 x 2" Hex Bolts (G), 3/8" Lock Washers (I) and 3/8 Hex Nuts (J).
See Figure 1.
Date: 2/15/2012
All manuals and user guides at all-guides.com
—— Instruction Manual ——
VB96
Six Post Deluxe Volleyball Cart
Rev: 1 B.A.
Item Qty Description
G 8 3/8 x 2" Hex Bolt
H 16 3/8" Flat Washer
I 24 3/8" Lock Washer
J 8 3/8 Hex Nut
K 8 1/2 x 2" Hex Bolt
N.J.C. File: \pub\vb96inst
1
Ref#: 960639
