Kramer VM-218DTxr Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

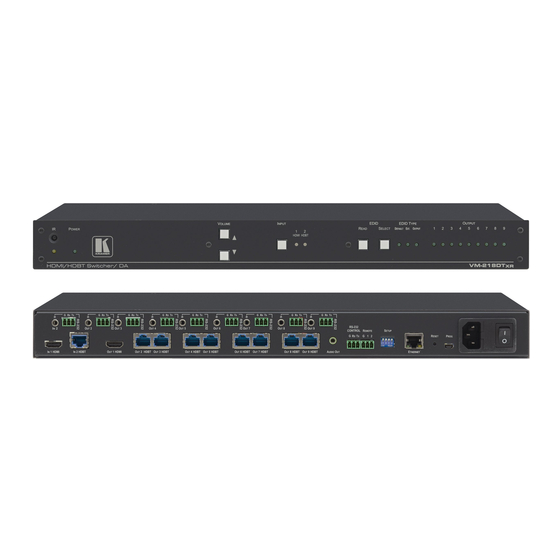

VM-218DTxr HDMI/HDBT Switcher/DA
1 Power cord
Step 2: Get to know your VM-218DTxr
# Feature
1 IR LED
2 IR Sensor
3 POWER LED
4 VOLUME ()
5 VOLUME ()
6 INPUT Selector Button
7 INPUT LEDs
8 EDID READ Button
9 EDID SELECT Button
10 EDID TYPE LEDs
11 OUTPUT LEDs (1 to 9)
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
VM-218DTxr Quick Start
VM-218DTxr Quick Start Guide
This guide helps you install and use your VM-218DTxr for the first time.
Go to www.kramerav.com/downloads/VM-218DTxr
firmware upgrades are available.
Function
Lights orange when the unit accepts IR remote commands.
Use to control a peripheral device connected to OUT 2 HDBT with that device's remote
controller.
Lights when the unit is powered.
Press to decrease the volume of the analog audio output.
Press to increase the volume of the analog audio output.
Press to select input 1 HDMI™ or input 2 HDBT.
Lights green to indicate the selected input: 1 HDMI or 2 HDBT.
Press to read the selected EDID and write it to both inputs.
Press to cycle through the sources from which to read the EDID: Default, External, or Output.
When Output is selected, cycles through outputs 1 to 9. The relevant EDID TYPE and OUTPUT
LEDs light green.
Lights green to indicate the selected EDID type: DEFAULT, EXT. (external) or OUTPUT.
In normal operation mode: lights green when an acceptor is connected to the output.
In EDID mode: when EDID TYPE OUTPUT LED lights green, press the EDID SELECT button
briefly to cycle through output 1 to 9 to select the output from which to read EDID. The relevant
LED lights during EDID setup and remains lit after completing the EDID setup.
to download the latest user manual and check if
1 Quick start guide
4 Rubber feet
P/N: 2 9 0 0 - 3 0 0 6 2 2 QS
1 Set of rack
ears
Rev: 4
