Kramer VM-22H User Manual
2x1:2 hdmi switcher/da
Hide thumbs
Also See for VM-22H:
- User manual (12 pages) ,
- User manual (14 pages) ,
- Quick start manual (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for Kramer VM-22H
Summary of Contents for Kramer VM-22H

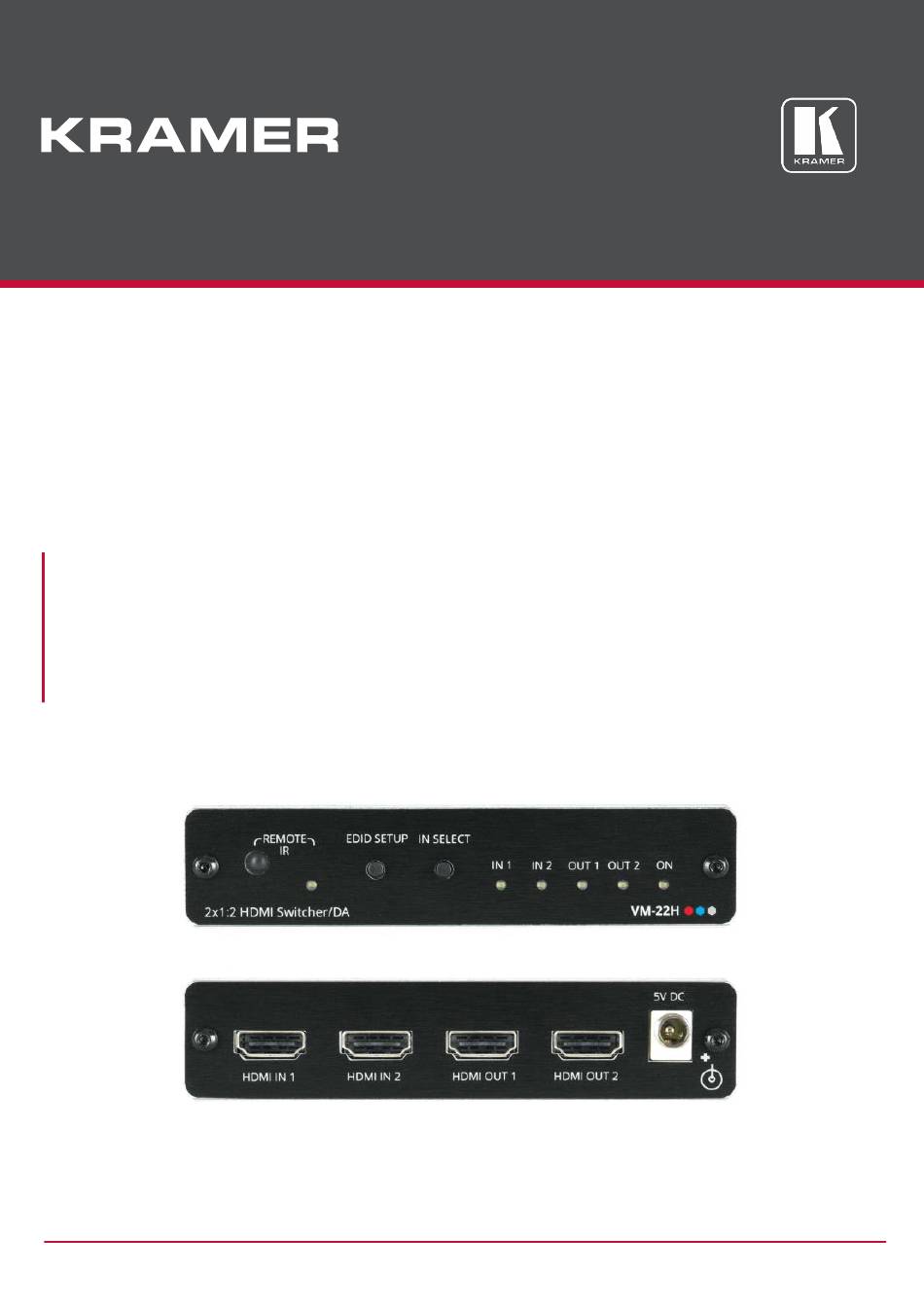

- Page 1 USER MANUAL MODEL: VM-22H 2x1:2 HDMI Switcher/DA P/N: 2900-000663 Rev 4 www.kramerAV.com...
-
Page 2: Table Of Contents
Kramer Electronics Ltd. Contents Introduction Getting Started Overview Typical Applications Defining the VM-22H 2x1:2 HDMI Switcher/DA Mounting VM-22H Connecting the VM-22H Acquiring the EDID Technical Specifications VM-22H – Contents... -
Page 3: Introduction
Kramer Electronics Ltd. Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have... - Page 4 European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at www.kramerav.com/support/recycling.
-
Page 5: Overview
I-EDIDPro™ Kramer Intelligent EDID Processing™, an intelligent EDID handling and processing algorithm that ensures Plug and Play operation for HDMI systems. • Kramer Equalization & re-Klocking™ Technology that rebuilds the digital signal integrity to travel longer distances. • 3D pass-through. -
Page 6: Defining The Vm-22H 2X1:2 Hdmi Switcher/Da
12 OUT 2 LED Illuminates when output 2 is connected and active (also illuminates or blinks during EDID setup, see Acquiring the EDID on page 7). 13 ON LED Illuminates when receiving power. VM-22H – Defining the VM-22H 2x1:2 HDMI Switcher/DA... -
Page 7: Mounting Vm-22H
Kramer Electronics Ltd. Mounting VM-22H This section provides instructions for mounting VM-22H. Before installing, verify that the environment is within the recommended range: • Operation temperature – 0 to 40C (32 to 104F). • Storage temperature – -40 to +70C (-40 to +158F). -
Page 8: Connecting The Vm-22H
Kramer Electronics Ltd. Connecting the VM-22H Always switch off the power to each device before connecting it to your VM-22H. After connecting your VM-22H, connect its power and then switch on the power to each device. To connect the VM-22H... -
Page 9: Acquiring The Edid
This is usually done only once, when the machine is being set up in an installation. Once acquired, the EDID is saved in non-volatile memory and further acquisition is not necessary. Initially, the VM-22H operates with the factory default EDID. This lets you connect the power before connecting one of the acceptors or sources. -
Page 10: Technical Specifications
12cm x 7.15cm x 2.44cm (4.7" x 2.8" 0.96") W, D, H WEIGHT: 0.3kg (0.67lbs) approx. INCLUDED ACCESSORIES: Power supply, bracket installation kit, infrared remote control transmitter OPTIONS: HDMI/HDMI male-to-male cables Specifications are subject to change without notice at http://www.kramerelectronics.com VM-22H – Technical Specifications... - Page 11 Electronics products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this product is returned uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re- installation of this product from or into any installation.
- Page 12 SAFETY WARNING Disconnect the unit from the power supply before opening and servicing For the latest information on our products and a list of Kramer distributors, visit our website where updates to this user manual may be found. We welcome your questions, comments, and feedback.
