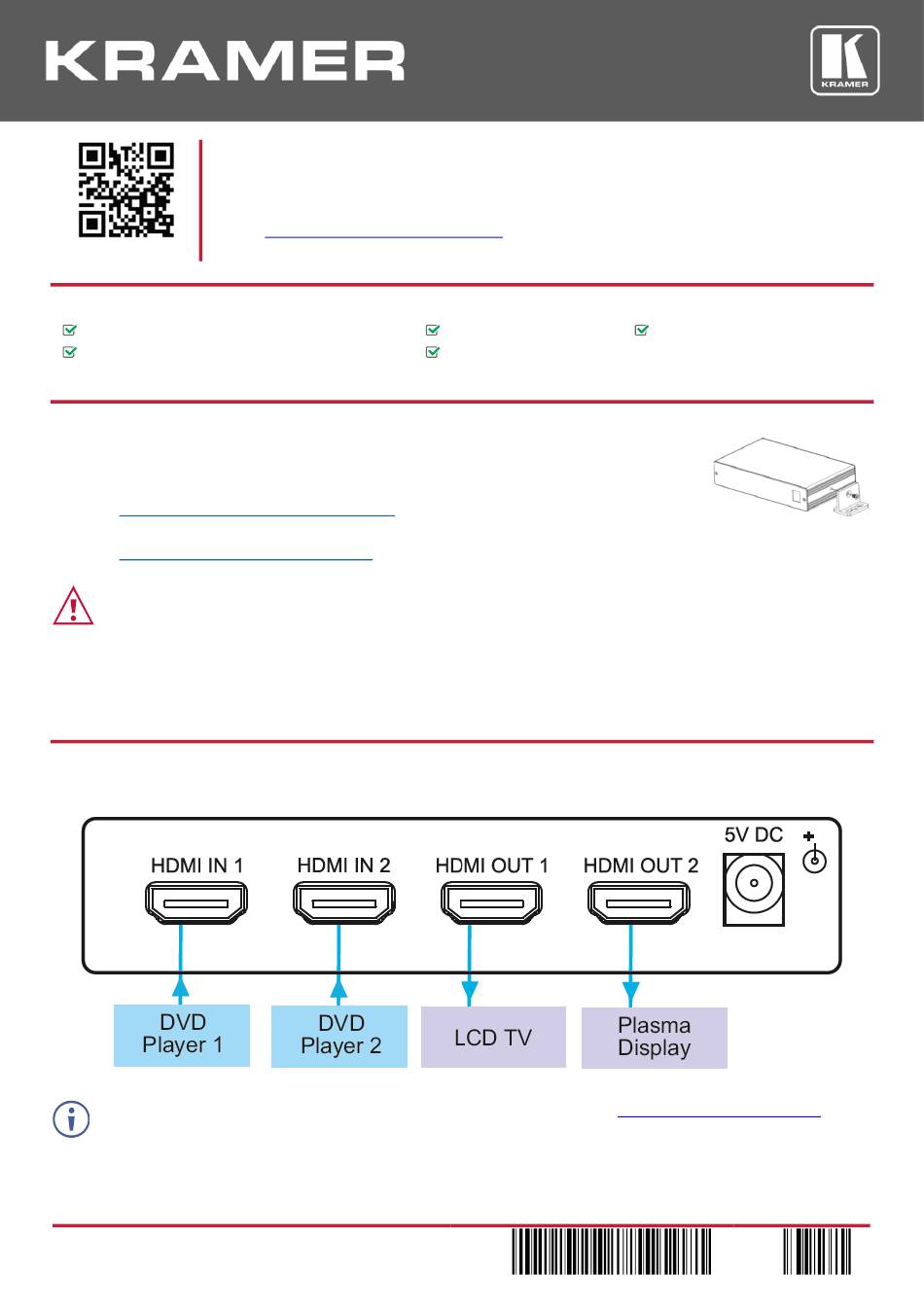

Kramer VM-22H Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

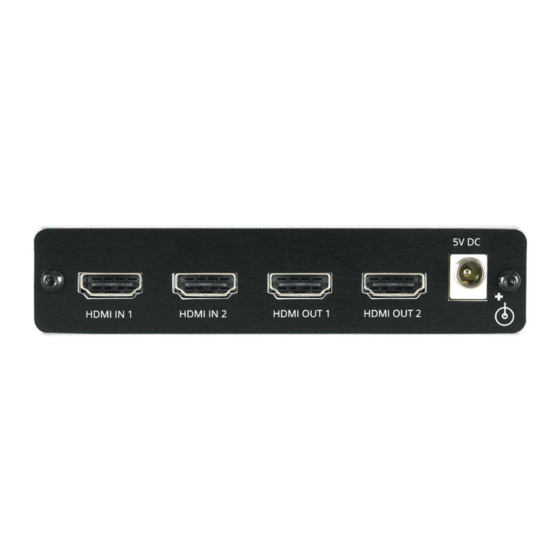

VM-22H 2x1:2 HDMI Switcher/DA
1 Power supply (5V DC)

Step 2: Mount VM-22H

Install VM-22H using one of the following methods:
•
Attach the rubber feet and place the unit on a flat surface.
•
Fasten a bracket on each side of the unit and attach it to a flat surface
www.kramerav.com/downloads/VM-22H
(see
•
Mount the unit in a rack using the recommended rack adapter
www.kramerav.com/product/VM-22H
(see
•
Ensure that the environment (e.g., maximum ambient temperature & air flow) is compatible for the
device.
•
Avoid uneven mechanical loading.
•
Appropriate consideration of equipment nameplate ratings should be used for avoiding overloading of
the circuits.
•
Reliable earthing of rack-mounted equipment should be maintained.
•
Maximum mounting height for the device is 2 meters.

Step 3: Connect inputs and outputs

Always switch OFF the power on each device before connecting it to your VM-22H.
To achieve specified extension distances, use the recommended Kramer cables available at www.kramerav.com/product/VM-22H.
Using third-party cables may cause damage!
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
VM-22H Quick Start
VM-22H Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/VM-22H
upgrades are available.
).
).
VM-22H for the first time.
to download the latest user manual and check if firmware
4 Rubber feet
Kramer RC-IR3 Infrared Remote Control Transmitter with
batteries and user manual
P/N: 2 9 0 0 - 3 0 1 1 2 0 QS
1 Quick start guide
Rev: 4
