JCM DBV-200 Installation Instructions

The JCM      SENTRY - Intelligent Bezel
TM
DBV-200 and WBA 12/13
IGT      Installation Instructions*
Description

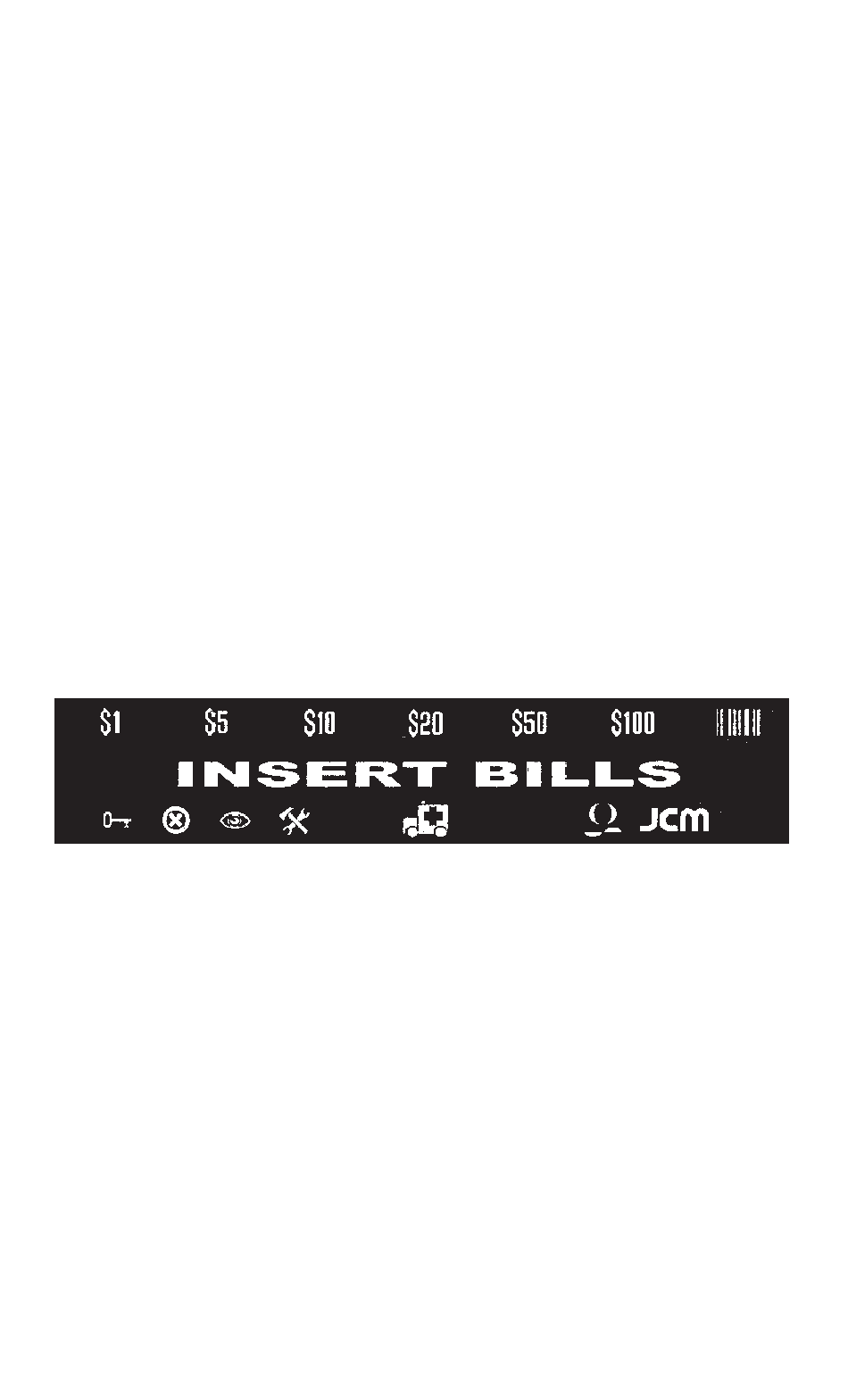

The SENTRY bezel attaches to existing IGT faceplates, and
connects to the WBA Bill Validator to provide both the machine
user and the slot technicians improved information about the
operation of the Bill Validator.
For the slot user, the SENTRY displays the denominations
currently acceptable by the Bill Validator. The last bill entered is
identified by the appropriate denomination light changing from
green to orange.
When there is a problem requiring immediate attention, a flashing
blue icon of an ambulance blinks on the front of the bezel and the
Bill Validator shuts down. If a red icon also lights up, this gives the
slot tech more specific information about the problem. The red
icons are a key, a crossed circle, an eye, and crossed hammer and
wrench. The JCM logo indicates the cash box is full when lit.
*Models include: S Plus , S2000 , Game King Plus 19" Upright
TM TM TM
