Ojmar OTS BASIC Assembly Instructions page 2

ORIENTACIÓN DE LA
CERRADURA
Lock installation must be carried
out with screws in four drilled
holes.
Lock assembly depending on if
it is right handed or left handed
is as follows.
ASSEMBLY
CONSIDERATIONS
The OTS lock is fi xed to the
locker door with four screws.
1.- Recommended screws:
- Conglomerate doors: Coach
nut 4.5 x 35 (depending on the
thickness of the door)
- Phenolic or metal doors:
Raised countersunk screw
Philips M5 x 35 (depending on
the thickness of the door)
2.- The maximum tightening
torque to apply to the tightening
of each screw or coach nut will
be 300 Ncm.
3.- The hole diameter for the
knob must be 23 mm (+1/0
mm). Bevelling the hole on
the inner area of the door is
recommended.
During installation, ensure that
the lock does not collide with
the locker body with the door
open.
The dimensions and location of
the fi xing holes are shown in
the figures 1.2.
ASSEMBLY AND
INSTALLATION PROCESS
The steps to follow to assemble
an OTS lock on a support or
furnishing should be followed in
this order:
1.- Mark the holes according to
fi gure 1.3.
2.- Drill the handle hole.
3.- If necessary, drill the holes to
secure the lock.
4.- Screw the lock with four set
screws.

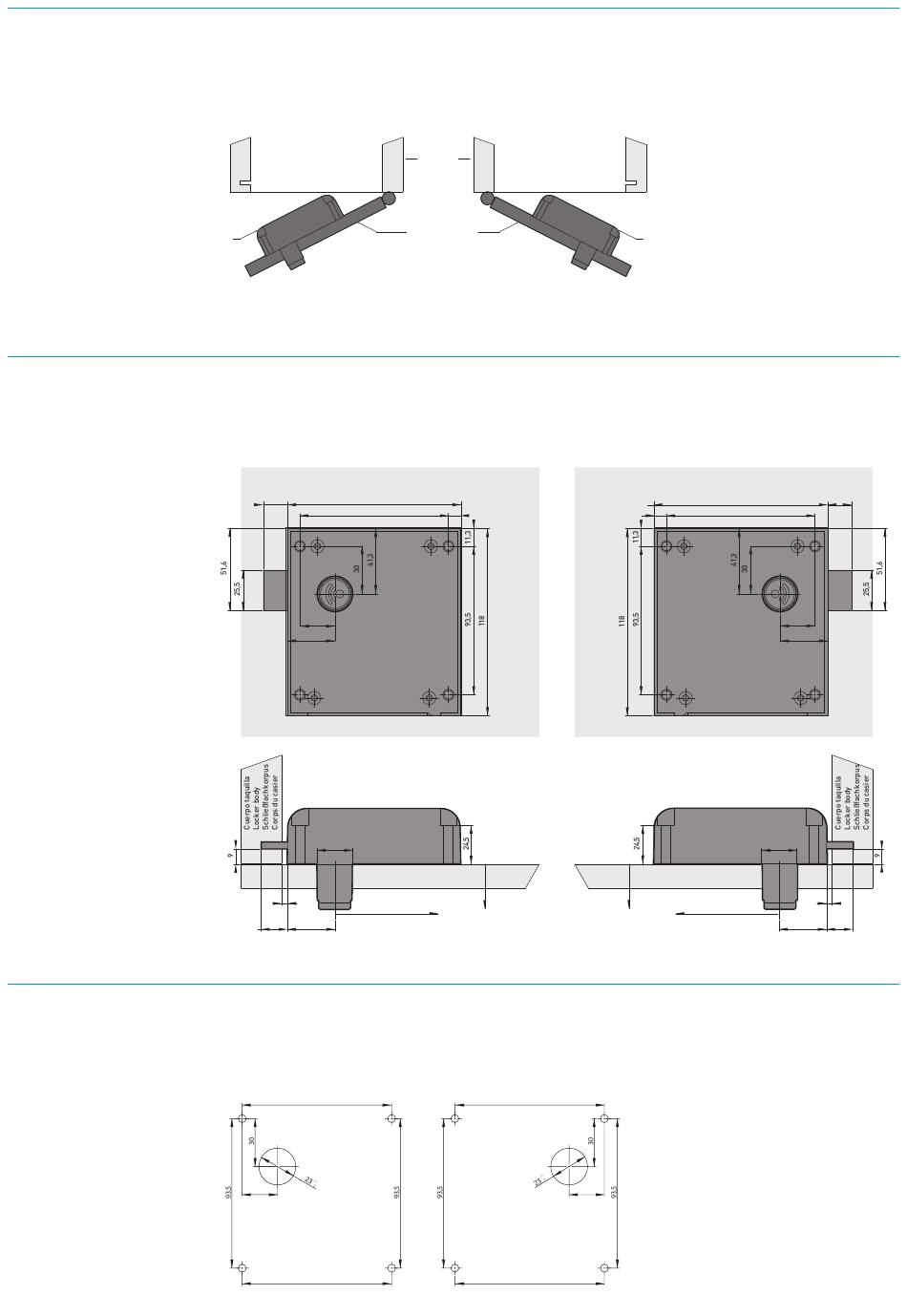

1.1
Representation of right and left handed locks
OTS
Right
1.2
Measurements of OTS lock in mm.
15 109,5
93,5
22
30
+1
ø 23
0
Puerta taquilla · Locker door
Schließfachtür · Porte du casier
4
min. 240 mm
15 30
1.3
Measurements of the mounting holes in mm.
93,5
22
93,5
Right
TAQUILLA
LOCKER
SCHLIEßFACH
CASIER
PUERTA TAQUILLA
LOCKER'S DOOR
SCHLIEßFACHTÜR
PORTE DU CASIER
Left
8
max. 20 mm
Al pivote de puerta
To the door's axis
bis zum Türzapfen
Axe de la porte
93,5
22
93,5
Left
OTS
109,5
8 93,5
Puerta taquilla · Locker door
Schließfachtür · Porte du casier
max. 20 mm
min. 240 mm
Al pivote de puerta
To the door's axis
bis zum Türzapfen
Axe de la porte
15
22
30
+1
ø 23
0
4
30 15
