EOM-G103-PHR-PTP Series
Quick Installation Guide
Version 1.1, January 2021
Technical Support Contact Information
www.moxa.com/support
 2021 Moxa Inc. All rights reserved.
P/N: 1802001030011
*1802001030011*

Advertisement

loading

Summary of Contents for Moxa Technologies EOM-G103-PHR-PTP Series

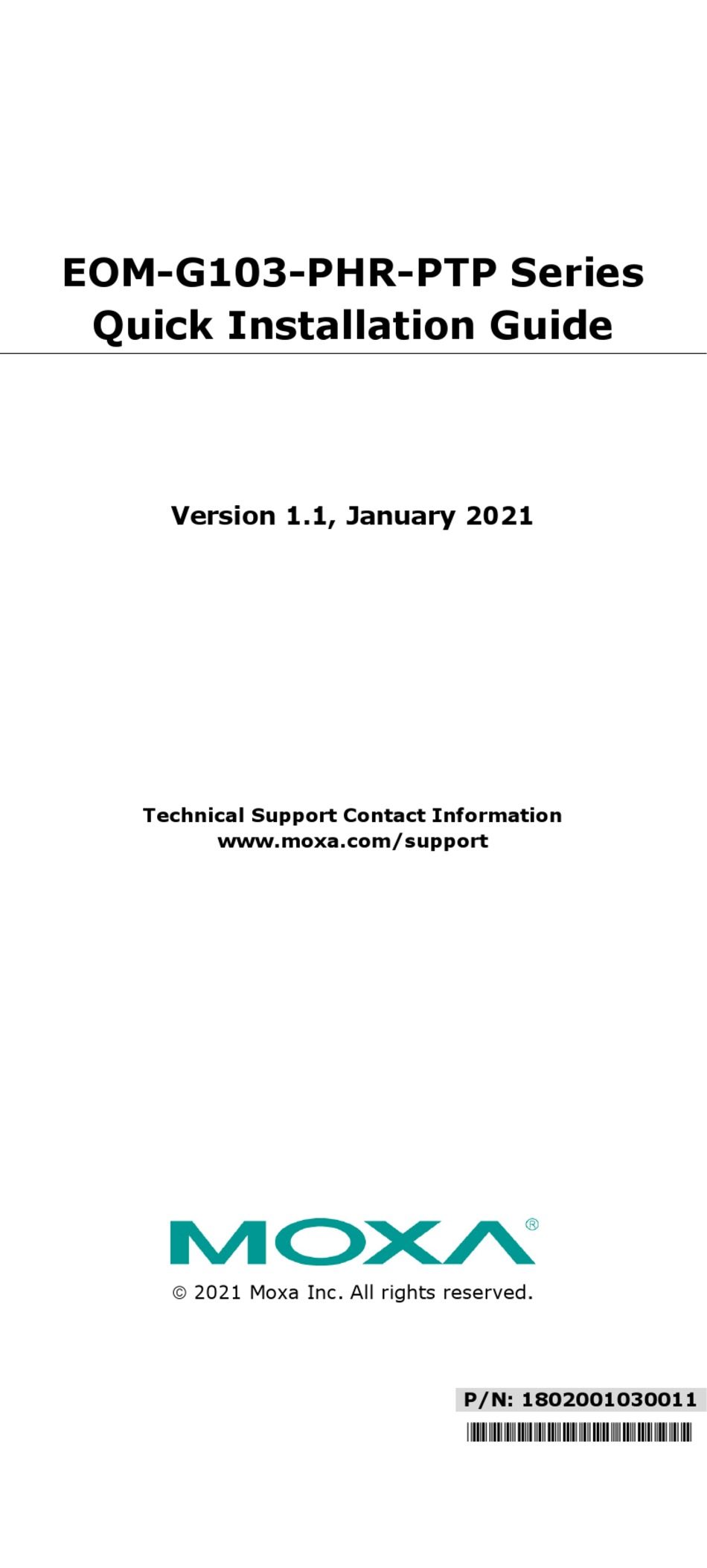

  • Page 1 EOM-G103-PHR-PTP Series Quick Installation Guide Version 1.1, January 2021 Technical Support Contact Information www.moxa.com/support  2021 Moxa Inc. All rights reserved. P/N: 1802001030011 *1802001030011*...
  • Page 2: Product Overview

    PRP or HSR networks and one standard Ethernet port (SGMII/SERDES(1000Base-X) interface) for connecting with standard IEEE 802.3 Ethernet devices. The EOM-G103-PHR-PTP series also provides an extra standard Ethernet port (SGMII/SERDES(1000Base-X) interface) for building up a local access Ethernet console port to easily maintain, control, and manage certain devices right at the local site.
  • Page 3 Layout of the Evaluation Board 1. 12 VDC power jack 2. System reboot button 3. JP2 connector for connecting to EOM-G103 JP2 4. JP1 connector for connecting to EOM-G103 JP1 5. Terminal block for DI and Relay 6. USB storage (ABC-02-USB-T) 7.
  • Page 4: Hardware Installation Procedure

    Layout of the EOM-G103-PHR-PTP Series Hardware Installation Procedure (Before installing the EOM-G103, please check to make sure that all items in the Package Checklist are in the box.) Step 1: Connect the EOM-G103-PHR-PTP module into the sockets on the top of the evaluation board Step 2: Connect the power source to the evaluation board Connect the 12 VDC power line to the evaluation board’s power jack.
  • Page 5: Pin Assignment

    Pin Assignment JP1 (2x40 connector pin assignment) SIGNAL SIGNAL PRP_LED DTR (UART) FAULT_LED DCD (UART) Reserved RTS (UART) STAT_R_LED DSR (UART) Reserved TXD (UART) STAT_G_LED CTS (UART) Reserved TX_DIS_G3 (SFP) RXD (UART) GXB_RX_P_0 (SGMII) PRESENT_G3 (SFP) Reserved GXB_RX_N_0 (SGMII) LOS_G3(SFP) GXB_TX_P0 (SGMII) Reserved TX_DIS_G2 (SFP)
  • Page 6 JP2 (2x10 connector pin assignment) SIGNAL SIGNAL Reserved 3.3V Reserved Reserved Reserved Reserved Reserved 3.3V Reset_PHY 3.3V Reset 3.3V Reserved 3.3V Reset to Default - 6 -...
