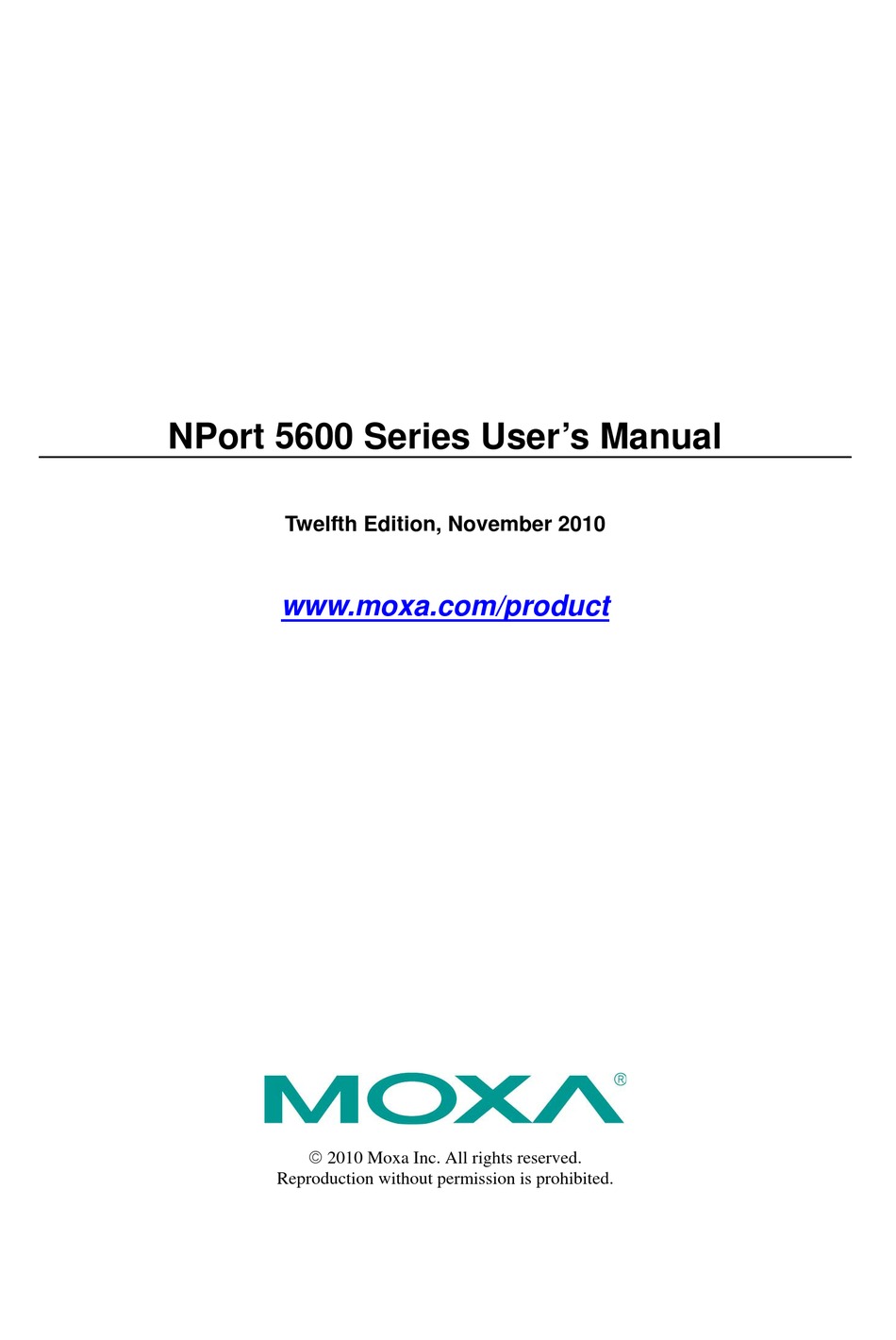

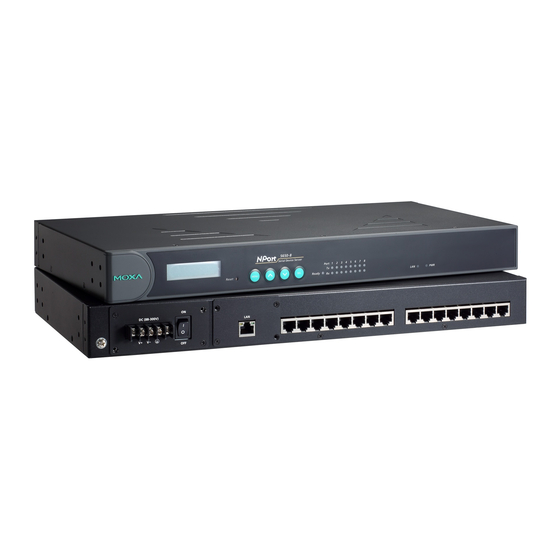

NPort 5600 Series User's Manual
Twelfth Edition, November 2010
www.moxa.com/product
 2010 Moxa Inc. All rights reserved.
Reproduction without permission is prohibited.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NPort 5610-8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Moxa Technologies NPort 5610-8

Summary of Contents for Moxa Technologies NPort 5610-8

  • Page 1 NPort 5600 Series User’s Manual Twelfth Edition, November 2010 www.moxa.com/product  2010 Moxa Inc. All rights reserved. Reproduction without permission is prohibited.

  • Page 2: Copyright Notice

    NPort 5600 Series User’s Manual The software described in this manual is furnished under a license agreement and may be used only in accordance with the terms of that agreement. Copyright Notice Copyright  2010 Moxa Inc. All rights reserved. Reproduction without permission is prohibited.

  • Page 3: Table Of Contents

    Table of Contents Chapter 1 Introduction....................1-1 Overview ..........................1-2 Package Checklist ......................1-2 Product Features......................... 1-2 Product Specifications......................1-3 Chapter 2 Getting Started..................2-1 Panel Layout........................2-2 Connecting the Hardware....................2-2 Desktop ..........................2-3 Rackmount ......................... 2-3 Wiring Requirements ....................2-3 Connecting NPort 5610/30/50-16/8’s Power ............
  • Page 4 TCP Server Mode ....................5-15 TCP Client Mode ....................5-19 UDP Mode ......................5-24 Pair Connection Mode ..................5-26 Reverse Telnet Mode .................... 5-29 Disabled Mode ...................... 5-30 RFC2217 Mode..................... 5-31 PPP Mode ......................5-33 Accessible IP Settings ...................... 5-34 PPP User Table .........................
  • Page 5 Serial Cables for NPort 5630 (RS-422/4-wire RS-485) ......... A-5 Serial Cables for NPort 5630 (2-wire RS-485) ............A-6 Serial Cables for NPort 5650 (RS-422/4-wire RS-485) ......... A-7 Serial Cables for NPort 5650 (2-wire RS-485) ............A-8 Pin Assignments for DB9 and DB25 Connectors ..........A-9 Appendix B Well Known Port Numbers ..............

  • Page 6: Chapter 1 Introduction

    Chapter 1 Moxa’s NPort 5600 advanced serial device servers make it easy to network-enable your serial devices. The NPort 5600 Series includes 14 models: NPort 5610-8, NPort 5610-8-48V, NPort 5610-16, NPort 5610-16-48V, NPort 5630-8, NPort 5630-16, NPort 5650-8, NPort 5650-8-T, NPort 5650-16, NPort 5650-16-T, NPort 5650-8-M-SC, NPort 5650-8-S-SC, NPort 5650-16-M-SC, NPort 5650-16-S-SC.

  • Page 7: Overview

    NPort 5600 Series User’s Manual Introduction Overview The NPort 5600 Series serial device servers are designed to make your industrial serial devices Internet ready instantly. The rack-mounted size of the NPort 5600 device servers makes them the ideal choice for connecting your RS-232 (NPort 5610-16/8), RS-422/485 (NPort 5630-16/8), or RS-232/422/485 (NPort 5650-16/8) serial devices—such as PLCs, meters, and sensors—to an IP-based Ethernet LAN, making it possible for your software to access serial devices anywhere over a local LAN or the Internet.

  • Page 8: Product Specifications

    NPort 5600 Series User’s Manual Introduction  Supports SNMP MIB-II for network management Product Specifications Ethernet 10/100 Mbps, RJ45 Protection Built-in 1.5 KV magnetic isolation Optical Fiber Interface 100BaseFX NPort 5650-8/16-M-SC NPort 5650-8/16-S-SC Wavelength 1300 nm 1310 nm Transmitter power Max -10 dBm 0 dBm Transmitter power Min...
  • Page 9 NPort 5600 Series User’s Manual Introduction RS-485 Data Direction ADDC™ (Automatic Data Direction Control) Power Line Protection Level 3 Burst (EFT), EN61000-4-4 Level 3 Surge, EN61000-4-5 Advanced Built-in Features LCM display with four push buttons (does not apply to wide temperature models) Buzzer Real-Time Clock...
  • Page 10 NPort 5600 Series User’s Manual Introduction Mechanical Material SECC sheet metal (1 mm) Dimensions (W × H × D) 190 × 44.5 × 478 mm (including ears) 190 × 44.5 × 440 mm (without ears) Environment Operating Temperature Standard Models: 0 to 55°C (32 to 131°F), 5 to 95%RH Wide Temp.

  • Page 11: Chapter 2 Getting Started

    Getting Started Chapter 2 This chapter includes information about installing NPort 5600 Series. The following topics are covered:  Panel Layout  Connecting the Hardware  Desktop  Rackmount  Wiring Requirements  Connecting NPort 5610/30/50-16/8’s Power  Connecting NPort 5610-16/8-48V’s Power ...

  • Page 12: Panel Layout

    NPort 5600 Series User’s Manual Getting Started Panel Layout The following figures depict the front and rear panels of the NPort 5600 series. Front panel of NPort 5600 series 5610- 16 Front panel of NPort 5600-T series Rear panel of NPort 5600 series (AC Power) Serial ports AC POWER 100-240V, 47-63Hz Rear panel of NPort 5600 series (DC Power)

  • Page 13: Desktop

    NPort 5600 Series User’s Manual Getting Started Desktop Place your NPort 5600 on a clean, flat, well-ventilated desktop. For better ventilation, attach the 4 pads from the desktop kit to the bottom of the unit, and leave some space between the NPort 5600 and other equipment.

  • Page 14: Connecting Nport 5610/30/50-16/8'S Power

    NPort 5600 Series User’s Manual Getting Started You should also pay attention to the following points:  Use separate paths to route wiring for power and devices. If power wiring and device wiring paths must cross, make sure the wires are perpendicular at the intersection point. NOTE: Do not run signal or communication wiring and power wiring in the same wire conduit.

  • Page 15: Connecting To The Network

    NPort 5600 Series User’s Manual Getting Started ATTENTION This product is intended to be mounted to a well-grounded mounting surface such as a metal panel. Connecting to the Network Connect one end of the Ethernet cable to NPort 5600’s 10/100M Ethernet port and the other end of the cable to the Ethernet network.

  • Page 16: Link Indicator On The Rear Panel Of Nport 5650 Fiber Model

    NPort 5600 Series User’s Manual Getting Started Link Indicator on the Rear Panel of NPort 5650 Fiber Model The rear panels of NPort 5600 have a link indicator, as described in the following table. LED Name LED Color LED Function Fiber is disconnected Link Green...
  • Page 17 NPort 5600 Series User’s Manual Getting Started NPort 5650 DIP Switches S1 for Port 1 S2 for Port 2 S3 for Port 3 S4 for Port 4 S5 for Port 5 S6 for Port 6 S7 for Port 7 S8 for Port 8 S9 for Port 9 S10 for Port 10 S11 for Port 11...

  • Page 18: Initial Ip Address Configuration

    Initial IP Address Configuration Chapter 3 When setting up your NPort 5600 for the first time, the first thing you should do is configure the IP address. This chapter introduces several methods to configure NPort’s IP address. Select the method that is the most convenient for you. For more details about network settings, see the Network Settings section from Chapter 5, Web Console Configuration.

  • Page 19: Initializing Nport's Ip Address

    NPort 5600 Series User’s Manual Initial IP Address Configuration Initializing NPort’s IP Address 1. Determine whether your NPort needs to use a Static IP or Dynamic IP (either DHCP or BOOTP application). 2. If NPort is used in a Static IP environment, you can use NPort Administration Suite, ARP, Web Console, or Telnet Console to configure the new IP address.
  • Page 20 NPort 5600 Series User’s Manual Initial IP Address Configuration There are four push buttons on NPort’s nameplate. Going from left to right, the buttons are: Button Name Action menu activates the main menu, or returns to an upper level MENU ...
  • Page 21 NPort 5600 Series User’s Manual Initial IP Address Configuration Level 1 Level 2 Level 3 Main Menu Server Serial number setting Server name Firmware ver Model name Network Ethernet status setting MAC address IP config IP address Netmask Gateway DNS server 1 DNS server 2 Serial set Select port...

  • Page 22: Nport Administration Suite

    NPort 5600 Series User’s Manual Initial IP Address Configuration The second type of configurable option is when there are only a small number of options from which to choose (although only one option will be visible at a time). Consider the Parity attribute under Serial set as an example.

  • Page 23: Telnet Console

    NPort 5600 Series User’s Manual Initial IP Address Configuration Or, you may use a cross-over Ethernet cable to connect the NPort directly to your computer’s Ethernet card. Your NPort must be configured with the factory default IP address—192.168.127.254—before executing the ARP command, as described below. Take the following steps to use ARP to configure the IP address: 1.
  • Page 24 NPort 5600 Series User’s Manual Initial IP Address Configuration 3. When the Telnet window opens, if you are prompted to input the Console password, input the password and then press Enter. Note that this page will only appear if the NPort is password protected. 4.
  • Page 25 NPort 5600 Series User’s Manual Initial IP Address Configuration 6. Use the Backspace key to erase the current IP address, type in the new IP address, and then press Enter. 7. Press any key to continue…...
  • Page 26 NPort 5600 Series User’s Manual Initial IP Address Configuration 8. Type m or M and then press Enter to return to the main menu. 9. Type s or S and then press Enter to Save/Restart the system. 10. Type y or Y and then press Enter to save the new IP address and restart NPort.

  • Page 27: Choosing The Proper Operation Mode

    Choosing the Proper Operation Mode Chapter 4 In this chapter, we describe the various NPort 5600 operation modes. The options include an operation mode that uses a driver installed on the host computer, and operation modes that rely on TCP/IP socket programming concepts. After choosing the proper operation mode in this chapter, refer to Chapter 5 for detailed configuration parameter definitions.

  • Page 28: Overview

    NPort 5600 Series User’s Manual Choosing the proper Operation Mode Overview NPort Device Servers network-enable traditional RS-232/422/485 devices, in which a Device Server is a tiny computer equipped with a CPU, real-time OS, and TCP/IP protocols that can bi-directionally translate data between the serial and Ethernet formats. Your computer can access, manage, and configure remote facilities and equipment over the Internet from anywhere in the world.

  • Page 29: Tcp Server Mode

    NPort 5600 Series User’s Manual Choosing the proper Operation Mode The important point is that Real COM Mode allows users to continue using RS-232/422/485 serial communications software that was written for pure serial communications applications. The driver intercepts data sent to the host’s COM port, packs it into a TCP/IP packet, and then redirects it through the host’s Ethernet card.

  • Page 30: Tcp Client Mode

    NPort 5600 Series User’s Manual Choosing the proper Operation Mode TCP Client Mode In TCP Client mode, NPort can actively establish TCP Client Mode a TCP connection to a pre-defined host computer when serial data arrives. After the data has been transferred, NPort can automatically disconnect from the host computer by using the TCP alive check time or Inactivity time settings.

  • Page 31: Reverse Telnet Mode

    NPort 5600 Series User’s Manual Choosing the proper Operation Mode Reverse Telnet Mode Unix Windows NT TCP/IP NPort 5600 5610- 16 Series RS-232 Router Server Server Console management is commonly used by connecting to Console/AUX or COM ports of routers, switches, and UPS units.

  • Page 32: Ppp Mode

    NPort 5600 Series User’s Manual Choosing the proper Operation Mode PPP Mode NPort 5600 Device Server supports standard PPP service for out-of-band management if the Ethernet network crashes. The PPP function enables dial-in access for users who need a remote access solution.

  • Page 33: Web Console Configuration

    Web Console Configuration Chapter 5 The Web Console is the most user-friendly method available to configure NPort 5600 Series. This chapter will introduce the Web Console function groups and function definitions.  Opening Your Browser  Basic Settings  Network Settings ...

  • Page 34: Opening Your Browser

    NPort 5600 Series User’s Manual Web Console Configuration Opening Your Browser 1. Open your browser with the cookie function enabled. (To enable your browser for cookies, right click your desktop Internet Explorer icon, select Properties, click the Security tab, and then select the three Enable options as shown in the figure below.) 2.
  • Page 35 NPort 5600 Series User’s Manual Web Console Configuration 4. The NPort 5600 homepage will open. On this page, you can see a brief description of the Web Console’s nine function groups. ATTENTION If you can’t remember the password, the ONLY way to start configuring NPort is to load factory defaults by using the Reset button located near the NPort’s RJ45 Ethernet port.

  • Page 36: Basic Settings

    NPort 5600 Series User’s Manual Web Console Configuration Basic Settings Server name Setting Factory Default Necessity 1 to 39 characters NP[model name]-[Port No.]_ [Serial No.] Optional This option is useful for specifying the location or application of different NPorts. Time NPort 5600 has a built-in Real-Time Clock for time calibration functions.
  • Page 37 NPort 5600 Series User’s Manual Web Console Configuration Click the Modify button to open the Modify time settings window to input the correct local time. Time server Setting Factory Default Necessity IP or Domain address None Optional (E.g., 192.168.1.1 or time.stdtime.gov.tw) NPort 5600 uses SNTP (RFC-2030) for auto time calibration.

  • Page 38: Network Settings

    NPort 5600 Series User’s Manual Web Console Configuration Network Settings You must assign a valid IP address to NPort 5600 before it will work in your network environment. Your network system administrator should provide you with an IP address and related settings for your network.
  • Page 39 NPort 5600 Series User’s Manual Web Console Configuration IP Address Setting Factory Default Necessity E.g., 192.168.1.1 (IP addresses of the form 192.168.127.254 Required x.x.x.0 and x.x.x.255 are invalid.) An IP address is a number assigned to a network device (such as a computer) as a permanent address on the network.

  • Page 40: Snmp Settings

    NPort 5600 Series User’s Manual Web Console Configuration DNS server 1 / DNS server 2 Setting Factory Default Necessity E.g., 192.168.1.1 None Optional (IP addresses of the form x.x.x.0 and x.x.x.255 are invalid.) When the user wants to visit a particular website, the computer asks a Domain Name System (DNS) server for the website’s correct IP address, and the computer users the response to connect to the web server.
  • Page 41 NPort 5600 Series User’s Manual Web Console Configuration IP Address Report When NPort 5600 series products are used in a dynamic IP environment, users must spend more time with IP management tasks. For example, if NPort works as a server (TCP or UDP), then the host, which acts as a client, must know the IP address of the server.

  • Page 42: Serial Settings

    NPort 5600 Series User’s Manual Web Console Configuration Serial Settings Click Serial Settings, located under Main Menu, to display serial port settings for ports 1 and 2. NOTE: Once you have completed the hardware installation of NPort 5600, there should be either 16 or 8 ports shown in the figure, depending on the model you installed.
  • Page 43 NPort 5600 Series User’s Manual Web Console Configuration Serial Parameters ATTENTION Check the serial communication parameters in your Serial Device’s user’s manual. You should set up NPort’s serial parameters with the same communication parameters used by your serial devices. Baudrate Setting Factory Default Necessity...

  • Page 44: Operating Settings

    NPort 5600 Series User’s Manual Web Console Configuration Operating Settings Click Operating Settings located under Main Menu, to display the operating settings for all of NPort’s serial ports. Real COM Mode TCP alive check time Setting Factory Default Necessity 0 to 99 min 7 min Optional 0 min: TCP connection is not closed due to an idle TCP connection.
  • Page 45 NPort 5600 Series User’s Manual Web Console Configuration Max connection Setting Factory Default Necessity 1, 2, 3, 4 Required Max connection is usually used when the user needs to receive data from different hosts simultaneously. The factory default is 1. In this case, only one specific host can access this port of the NPort, and the Real COM driver on that host will have full control over the port.
  • Page 46 NPort 5600 Series User’s Manual Web Console Configuration Packing length Setting Factory Default Necessity 0 to 1024 Required Default = 0, The Delimiter Process will be followed, regardless of the length of the data packet. If the data length (in bytes) matches the configured value, the data will be forced out. The data length can be configured for 0 to 1024 bytes.

  • Page 47: Tcp Server Mode

    NPort 5600 Series User’s Manual Web Console Configuration This parameter defines the time interval during which NPort fetches the serial data from its internal buffer. If data is incoming through the serial port, NPort stores the data in the internal buffer.
  • Page 48 NPort 5600 Series User’s Manual Web Console Configuration Inactivity time Setting Factory Default Necessity 0 to 65535 ms 0 ms Optional 0 ms: TCP connection is not closed due to an idle serial line. 0-65535 ms: NPort automatically closes the TCP connection if there is no serial data activity for the given time.
  • Page 49 NPort 5600 Series User’s Manual Web Console Configuration Allow driver control Setting Factory Default Necessity No or Yes Required If “max connection” is greater than 1, NPort will ignore driver control commands from all connected hosts. However, if you set “Allow driver control” to YES, control commands will be accepted.
  • Page 50 NPort 5600 Series User’s Manual Web Console Configuration Force transmit Setting Factory Default Necessity 0 to 65535 ms 0 ms Optional 0: Disable the force transmit timeout. 1 to 65535: Forces the NPort’s TCP/IP protocol software to try to pack serial data received during the specified time into the same data frame.

  • Page 51: Tcp Client Mode

    NPort 5600 Series User’s Manual Web Console Configuration TCP Client Mode TCP alive check time Setting Factory Default Necessity 0 to 99 min 7 min Optional 0 min: TCP connection is not closed due to an idle TCP connection. 1 to 99 min: NPort automatically closes the TCP connection if there is no TCP activity for the given time.
  • Page 52 NPort 5600 Series User’s Manual Web Console Configuration ATTENTION The Inactivity time should at least be set larger than that of Force transmit timeout. To prevent the unintended loss of data due to the session being disconnected, it is highly recommended that this value is set large enough so that the intended data transfer is completed.
  • Page 53 NPort 5600 Series User’s Manual Web Console Configuration Delimiter 2 Setting Factory Default Necessity 00 to FF None Optional Once the NPort receives both delimiters through its serial port, it immediately packs all data currently in its buffer and sends it to the NPort’s Ethernet port. ATTENTION Delimiter 2 is optional.
  • Page 54 NPort 5600 Series User’s Manual Web Console Configuration Therefore, you should set Force transmit timeout to be larger than 8.3 ms, so in this case, it must be greater than or equal to 10 ms. If the user wants to send the series of characters in the same packet, the serial device attached to NPort should send that series of characters during a time interval less than the Force Transmit timeout for NPort, and the total length of data must be less than or equal to NPort’s internal buffer size.
  • Page 55 NPort 5600 Series User’s Manual Web Console Configuration Connect/Disconnect Description Startup/None A TCP connection will be established on startup, and will remain (default) active indefinitely. A TCP connection will be established when any character is Any Character/None received from the serial interface, and will remain active indefinitely.

  • Page 56: Udp Mode

    NPort 5600 Series User’s Manual Web Console Configuration UDP Mode Packing length Setting Factory Default Necessity 0 to 1024 Required Default = 0, The Delimiter Process will be followed, regardless of the length of the data packet. If the data length (in bytes) matches the configured value, the data will be forced out. The data length can be configured for 0 to 1024 bytes.
  • Page 57 NPort 5600 Series User’s Manual Web Console Configuration Delimiter process Setting Factory Default Necessity Do nothing, Delimiter + 1, Delimiter + Do Nothing Required 2, Strip Delimiter When [Delimiter + 1] or [Delimiter + 2] is selected, the data will be transmitted when an additional byte (for Delimiter +1), or an additional 2 bytes (for Delimiter +2) of data is received after receiving the Delimiter.

  • Page 58: Pair Connection Mode

    NPort 5600 Series User’s Manual Web Console Configuration Destination IP address 1 Setting Factory Default Necessity IP address range Begin: Empty Required E.g., Begin: 192.168.1.1 End: Empty End: 192.168.1.10 Port: 4001 Destination IP address 2/3/4 Setting Factory Default Necessity IP address range Begin: Empty Optional...
  • Page 59 NPort 5600 Series User’s Manual Web Console Configuration Pair Connection Master Mode When using Pair Connection Mode, you must select Pair Connection Master Mode for the Operation mode of one of the NPort 5600 device servers. In effect, this NPort 5600 will be acting as a TCP client.
  • Page 60 NPort 5600 Series User’s Manual Web Console Configuration Pair Connection Slave Mode When using Pair Connection Mode, you must select Pair Connection Slave Mode for the Operation mode of one of the NPort 5600 device servers. In effect, this NPort 5600 will be acting as a TCP server.

  • Page 61: Reverse Telnet Mode

    NPort 5600 Series User’s Manual Web Console Configuration Reverse Telnet Mode TCP alive check time Setting Factory Default Necessity 0 to 99 min Optional Specifies the time slice for checking if the TCP connection is alive. If there is no response, NPort 5600 series will disconnect the original connection.

  • Page 62: Disabled Mode

    NPort 5600 Series User’s Manual Web Console Configuration If data received through NPort 5600’s Ethernet port is sent using the “enter” command, the data will be transmitted out the serial port with an added “carriage return + line feed” if you select the <CR-LF> option (i.e., the cursor will jump to the next line, and return to the first character of the line) “carriage return”...

  • Page 63: Rfc2217 Mode

    NPort 5600 Series User’s Manual Web Console Configuration RFC2217 Mode TCP alive check time Setting Factory Default Necessity 0 to 99 min 7 min Optional 0 min: TCP connection is not closed due to an idle TCP connection. 1 to 99 min: NPort 5600 automatically closes the TCP connection if there is no TCP activity for the given time.
  • Page 64 NPort 5600 Series User’s Manual Web Console Configuration ATTENTION Delimiter 2 is optional. If left blank, then Delimiter 1 alone trips clearing of the buffer. If the size of the serial data received is greater than 1 KB, the NPort 5600 will automatically pack the data and send it to the Ethernet.

  • Page 65: Ppp Mode

    NPort 5600 Series User’s Manual Web Console Configuration PPP Mode PPP provides standard PPP service for dial-in. Inactivity time Setting Factory Default Necessity 0 to 65535 ms Optional Idle time setting for auto-disconnection. 0 min. means it will never disconnect. TCP/IP compression Setting Factory Default...

  • Page 66: Accessible Ip Settings

    NPort 5600 Series User’s Manual Web Console Configuration IP netmask Setting Factory Default Necessity IP netmask Optional NPort 5600 automatically assigns the netmask 255.255.255.255. We recommend leaving this space blank. Modem Initial stream Setting Factory Default Necessity Optional Modem Initial stream Accessible IP Settings NPort has an IP address based filtering method to control access to itself.

  • Page 67: Ppp User Table

    NPort 5600 Series User’s Manual Web Console Configuration Accessible IP Settings allows you to add or block remote host IP addresses to prevent unauthorized access. Access to NPort is controlled by IP address. That is, if a host’s IP address is in the accessible IP table, then the host will be allowed to access the NPort.

  • Page 68: Auto Warning Settings

    NPort 5600 Series User’s Manual Web Console Configuration Auto Warning Settings Auto warning: E-mail and SNMP Trap Mail Server Mail server Setting Factory Default Necessity IP or Domain Name None Optional User name Setting Factory Default Necessity 1 to 15 characters None Optional Password...

  • Page 69: Event Type

    NPort 5600 Series User’s Manual Web Console Configuration SNMP Trap Server SNMP trap server IP or domain name Setting Factory Default Necessity IP or Domain Name None Optional Event Type Cold start This refers to starting the system from power off (contrast this with warm start). When performing a cold start, NPort will automatically issue an Auto warning message by e-mail, or send an SNMP trap after booting up.
  • Page 70 NPort 5600 Series User’s Manual Web Console Configuration DCD changed The DCD (Data Carrier Detect) signal has changed, also indicating that the modem connection status has changed. For example, a DCD change to high also means “Connected” between local modem and remote modem. If the DCD signal changes to low, it also means that the connection line is down.

  • Page 71: Monitor

    NPort 5600 Series User’s Manual Web Console Configuration Monitor Monitor Line Click Line under Monitor to show the operation mode and status of each connection (IPx), for each of the four serial ports. Monitor Async Click Async under Monitor to show the current status of each of the four serial ports. 5-39...

  • Page 72: Monitor Async-Settings

    NPort 5600 Series User’s Manual Web Console Configuration Monitor Async-Settings Click Async Setting under Monitor to show the run-time settings for each of the four serial ports. Change Password Input the “Old password” and “New password” to change the password. Leave the password boxes blank to erase the password.

  • Page 73: Load Factory Defaults

    NPort 5600 Series User’s Manual Web Console Configuration Load Factory Defaults This function will reset all of NPort’s settings to their factory default values. Be aware that previous settings will be lost. 5-41...

  • Page 74: Configuring Nport Administrator

    Configuring NPort Administrator Chapter 6 NPort Administrator and Web Console are two powerful tools that can be used to configure the settings of your NPorts. Choose the method that is most convenient for you. The following topics are covered in this chapter: ...

  • Page 75: Overview

    NPort 5600 Series User’s Manual Configuring NPort Administrator Overview NPort Administrator lets you easily install and configure your NPort 5600 Series product over the network. NPort Administrator provides five function groups that ease the installation process, allow off-line COM mapping, and provide monitoring and IP location server functions. NPort Administrator is an integrated software suite that bundles NPort Administrator and the IP Serial Library, and provides everything you need to remotely manage, monitor, and modify your NPort from a remote location.
  • Page 76 NPort 5600 Series User’s Manual Configuring NPort Administrator 3. Click Next to install the program using the default program name, or select a different name. 4. Click Install to proceed with the installation. 5. The Installing window reports the progress of the installation.
  • Page 77 NPort 5600 Series User’s Manual Configuring NPort Administrator 6. Read through the installation notes and then click Next to proceed. 7. Click Finish to complete the installation of NPort Administration Suite.

  • Page 78: Configuration

    NPort 5600 Series User’s Manual Configuring NPort Administrator Configuration The Administrator-Configuration window is divided into four parts.  The top section contains the function list and online help area. (Windows NT does not support this .chm file format.)  The five Administrator function groups are listed in the left section. ...

  • Page 79: Broadcast Search

    NPort 5600 Series User’s Manual Configuring NPort Administrator Broadcast Search The Broadcast Search function is used to locate all NPorts that are connected to the same LAN as your computer. 1. Since the Broadcast Search function searches by MAC address and not IP address, all NPorts connected to the LAN will be located, regardless of whether or not they are part of the same subnet as the host.
  • Page 80 NPort 5600 Series User’s Manual Configuring NPort Administrator 3. When the search is complete, the Broadcast Search window closes, and the NPorts that were located are displayed in the right pane of the Administrator window. For the example shown here, NPort Administrator found 4 NPort Serial Device Servers on the LAN.

  • Page 81: Unlock Password Protection

    NPort 5600 Series User’s Manual Configuring NPort Administrator Unlock Password Protection 1. If the NPort is password protected, then you will not be able to use the right click method to open the configuration page. 2. Instead, select an NPort with “Lock” status, right click the locked NPort, and then select the Unlock button.
  • Page 82 NPort 5600 Series User’s Manual Configuring NPort Administrator 4. The previous “Lock” status will switch to “Unlock” status. Administrator will keep this NPort in the Unlock status throughout this Administrator session. The six states are as follows (note that the term Fixed is borrowed from the standard fixed IP address networking terminology): Lock The NPort is password protected, “Broadcast Search”...

  • Page 83: Configuring Nport 5600

    NPort 5600 Series User’s Manual Configuring NPort Administrator Configuring NPort 5600 1. To start NPort Administrator, click Start  NPort Administration Suite  NPort Administrator. 2. Input the password to Unlock the NPort. Right click a specific NPort and select configure to start the configuration. 3.
  • Page 84 NPort 5600 Series User’s Manual Configuring NPort Administrator 4. Refer to Chapter 5 for each parameter’s function definition. To modify the configuration, you must first click in the modify box to activate the parameter setting box. 6-11...

  • Page 85: Upgrading Firmware

    NPort 5600 Series User’s Manual Configuring NPort Administrator ATTENTION You can simultaneously modify the configurations of multiple NPort 5600s that are of the same model. To select multiple NPort 5600s, hold down the Ctrl key when selecting additional NPort 5600s, or hold down the Shift key to select a group of NPort 5600s.

  • Page 86: Export/Import

    NPort 5600 Series User’s Manual Configuring NPort Administrator 3. Wait patiently while the Upgrade Firmware action is being processed. ATTENTION You can simultaneously upgrade the firmware of multiple NPort 5600s that are of the same model. To select multiple NPort 5600s, hold down the Ctrl key when selecting an additional NPort 5600, or hold down the Shift key to select a block of NPort 5600s.

  • Page 87: Monitor

    NPort 5600 Series User’s Manual Configuring NPort Administrator 2. The Import Configuration function is used to import an NPort configuration from a file into one or more of the same model NPort. To import a configuration, first select the target servers (use the left mouse button to select servers;...
  • Page 88 NPort 5600 Series User’s Manual Configuring NPort Administrator 4. Click Monitor. 5. Select Add Target. When you select add target, you will see an NPort list that looks the same as when using Configuration  Broadcast Search. 6. Check the NPort you would like to Monitor, and then click OK. 6-15...
  • Page 89 NPort 5600 Series User’s Manual Configuring NPort Administrator 7. The NPort list will now appear on the Monitor screen. 8. Right click the panel and select Settings. 9. Select or de-select Monitor Items. Use the single arrowhead buttons to move highlighted items from one box to the other.
  • Page 90 NPort 5600 Series User’s Manual Configuring NPort Administrator 10. Select a Refresh Rate (the default is 3 seconds). 11. Select Display warning message for new event or Play warning music for new event. In the second case, you must enter the path to the WAV file that you want to be played. “New event” means that one of the 5600s in the monitor is “Alive”...
  • Page 91 NPort 5600 Series User’s Manual Configuring NPort Administrator 12. Right click and select Go to start the Monitor. 13. For this example, the 5 NPorts shown in the list will be monitored. 14. When one of the NPorts loses connection with the Monitor program, a warning alert will display automatically.
  • Page 92 NPort 5600 Series User’s Manual Configuring NPort Administrator 15. In the Monitor screen, you can see that the “Not Alive” NPort is marked with red color. 16. Click the Alive column. The Monitor program will sort the NPort list and put all “Not Alive” NPorts at the top of the list.

  • Page 93: Port Monitor

    NPort 5600 Series User’s Manual Configuring NPort Administrator Port Monitor 1. The process described here is the same as in the previous “Monitor” section. The only difference is that you can select more items under Port Monitor than under Monitor. 2.

  • Page 94: On-Line Com Mapping

    NPort 5600 Series User’s Manual Configuring NPort Administrator Use the following procedure to map COM ports: 1. On-line COM Mapping: Connect NPort to the network  Set NPort to the proper IP address  Map COMs to your host  Apply Change. 2.
  • Page 95 NPort 5600 Series User’s Manual Configuring NPort Administrator 5. Select COM Setting to modify COM No., default setting, etc. 6. Select the COM No. COM ports that are “In use” or “Assigned” will also be indicated in this drop-down list. If you select multiple serial ports or multiple NPorts, remember to check the “Auto Enumerating”...
  • Page 96 NPort 5600 Series User’s Manual Configuring NPort Administrator Fast Flush (only flush local buffer) We have added one optional Fast Flush function to Moxa’s new NPort Real COM driver. NPort Administrator Suite for 2G NPort adds it after version 1.2. For some applications, the user’s program will use the Win32 “PurgeComm()”...
  • Page 97 NPort 5600 Series User’s Manual Configuring NPort Administrator 7. After setting the COM Mapping, remember to select Apply Change to save the information in the host system registry. The host computer will not have the ability to use the COM port until after Apply Change is selected.

  • Page 98: Off-Line Com Mapping

    NPort 5600 Series User’s Manual Configuring NPort Administrator 9. To save the configuration to a text file, select Export COM Mapping. You will then be able to import this configuration file to another host and use the same COM Mapping settings in the other host.

  • Page 99: Ip Location

    NPort 5600 Series User’s Manual Configuring NPort Administrator 2. Select Apply change to effect the changes immediately. IP Location When NPort 5600 series products are used in a dynamic IP environment, users must spend more time with IP management tasks. NPort 5600 series products help out by periodically reporting their IP address to the IP location server, in case the dynamic IP has changed.
  • Page 100 NPort 5600 Series User’s Manual Configuring NPort Administrator 2. Select the IP Location Report, and click the right mouse button to select Settings. 3. Then configure the Local Listen Port to be the same as the NPort’s “Auto report to UDP port” setting.

  • Page 101: Nport Ce Driver Manager For Windows Ce

    NPort CE Driver Manager for Chapter 7 Windows CE The following topics are covered in this chapter:  Overview  Installing NPort CE Driver Manager  Using NPort CE Driver Manager...

  • Page 102: Overview

    NPort 5600 Series User’s Manual NPort CE Driver for Windows CE Overview NPort CE Driver Manager is designed for use with NPort 5000 serial ports that are set to Real COM mode. The software manages the installation of drivers that allow you to map unused COM ports on your PC to serial ports on the NPort 5000.
  • Page 103 NPort 5600 Series User’s Manual NPort CE Driver for Windows CE 1. Go to Start  Programs  NPort CE Driver Manager. 2. Click on the COM Mapping page and then the “Search” button to scan for NPort servers.
  • Page 104 NPort 5600 Series User’s Manual NPort CE Driver for Windows CE 3. All NPort servers that were located will appear in the NPort CE Driver Manager window. Click on the server whose COM ports you would like to map to and then select the port index. Note that multiple selections are allowed.
  • Page 105 NPort 5600 Series User’s Manual NPort CE Driver for Windows CE 6. To configure the settings for a particular COM Port, select the row of the desired port, and then modify the setting in the “Settings” panel, as shown below. Tx Mode “Hi-Performance”...

  • Page 106: Ip Serial Lib

    IP Serial LIB Chapter 8 The following topics are covered in this chapter:  Overview  IP Serial LIB Function Groups  Example Program...

  • Page 107: Overview

    NPort 5600 Series User’s Manual IP Serial LIB Overview What is IP Serial Library? IP Serial Library is a Windows library with frequently used serial command sets and subroutines. IP Serial Library is designed to reduce the complexity and poor efficiency of serial communication over TCP/IP.

  • Page 108: Ip Serial Lib Function Groups

    NPort 5600 Series User’s Manual IP Serial LIB IP Serial LIB Function Groups Server Control Port Control Input/Output Data Port Status Miscellaneous Inquiry nsio_init nsio_open nsio_read nsio_lstatus nsio_break nsio_end nsio_close nsio_SetReadTimeouts nsio_data_status nsio_break_on nsio_resetserver nsio_ioctl nsio_write nsio_break_off nsio_checkalive nsio_flowctrl nsio_SetWriteTimeouts nsio_breakcount nsio_DTR nsio_RTS...

  • Page 109: Appendix A Pinouts And Cable Wiring

    Pinouts and Cable Wiring Appendix A In this appendix, we cover the following topics.  Port Pinout Diagrams  Ethernet Port Pinouts  Serial Port Pinouts  Cable Wiring Diagrams  Ethernet Cables  Serial Cables for NPort 5610/5650 (RS-232) ...

  • Page 110: Port Pinout Diagrams

    NPort 5600 Series User’s Manual Pinouts and Cable Wiring Port Pinout Diagrams Ethernet Port Pinouts RS-232 Serial Port Pinouts RS-232 Port Pinouts for NPort 5610 RS-232 DSR (in) RTS (out) TxD (out) RxD (in) DCD (in) CTS (in) DTR (out) RS-422/485 Port Pinouts for NPort 5630 RS-422 2-wire...

  • Page 111: Cable Wiring Diagrams

    NPort 5600 Series User’s Manual Pinouts and Cable Wiring Cable Wiring Diagrams Ethernet Cables Straight-Through Cable RJ45 Plug Pin 1 Cable Wiring Cross-Over Cable RJ45 Plug Pin 1 Cable Wiring Serial Cables for NPort 5610/5650 (RS-232) RJ45 (8-pins) to Female DB9 RJ45 Port RJ45 Connector Female DB9...
  • Page 112 NPort 5600 Series User’s Manual Pinouts and Cable Wiring RJ45 (8-pins) to Male DB9 RJ45 Port RJ45 Connector Male DB9 Female DB9 RS-232 NPort 5610 Device NPort 5650 8 pins Cable Wiring 9 pins RJ45 (8-pins) to Female DB25 RJ45 Port RJ45 Connector Female DB25 Male...

  • Page 113: Serial Cables For Nport 5630 (Rs-422/4-Wire

    NPort 5600 Series User’s Manual Pinouts and Cable Wiring Serial Cables for NPort 5630 (RS-422/4-wire RS-485) RJ45 (8-pins) to Female DB9 RJ45 Port RJ45 Connector Female DB9 Male DB9 RS-422/ NPort 5630 4-wire RS-485 Device Cable Wiring 8 pins 9 pins TxD+ RxD+ TxD-...

  • Page 114: Serial Cables For Nport 5630 (2-Wire Rs-485)

    NPort 5600 Series User’s Manual Pinouts and Cable Wiring RJ45 (8-pins) to Male DB25 RJ45 Port RJ45 Connector Male DB25 Female DB25 RS-422/ NPort 5630 4-wire RS-485 Device Cable Wiring 8 pins 25 pins TxD+ RxD+ TxD- RxD- RxD- TxD- RxD+ TxD+ Serial Cables for NPort 5630 (2-wire RS-485)

  • Page 115: Serial Cables For Nport 5650 (Rs-422/4-Wire

    NPort 5600 Series User’s Manual Pinouts and Cable Wiring RJ45 (8-pins) to Male DB25 RJ45 Port RJ45 Connector Male DB25 Female DB25 2-wire RS-485 NPort 5630 Device 8 pins Cable Wiring 25 pins Data- Data- Data+ Data+ Serial Cables for NPort 5650 (RS-422/4-wire RS-485) RJ45 (8-pins) to Female DB9 RJ45 Port RJ45 Connector...

  • Page 116: Serial Cables For Nport 5650 (2-Wire Rs-485)

    NPort 5600 Series User’s Manual Pinouts and Cable Wiring RJ45 (8-pins) to Female DB25 RJ45 Port RJ45 Connector Female DB25 Male DB25 RS-422/ NPort 5650 4-wire RS-485 Device Cable Wiring 8 pins 25 pins TxD+ RxD+ TxD- RxD- RxD+ TxD+ RxD- TxD- RJ45 (8-pins) to Male DB25...

  • Page 117: Pin Assignments For Db9 And Db25 Connectors

    NPort 5600 Series User’s Manual Pinouts and Cable Wiring RJ45 (8-pins) to Female DB25 RJ45 Port RJ45 Connector Female DB25 Male DB25 2-wire RS-485 NPort 5650 Device 8 pins Cable Wiring 25 pins Data+ Data+ Data- Data- RJ45 (8-pins) to Male DB25 RJ45 Port RJ45 Connector Male DB25...
  • Page 118 NPort 5600 Series User’s Manual Pinouts and Cable Wiring Pin Assignments for DB25 Male and Female Connectors DB25 Male Connector DB25 Female Connector 2 TxD (out) RxD (in) 2 3 RxD (in) TxD (out) 3 4 RTS (out) CTS (in) 4 5 CTS (in) RTS (out) 5 6 DSR (in)

  • Page 119: Appendix B Well Known Port Numbers

    Well Known Port Numbers Appendix B In this appendix, which is included for your reference, we provide a list of Well Known port numbers that may cause network problems if you set NPort 5600 to one of these ports. Refer to RFC 1700 for Well Known port numbers, or refer to the following introduction from the IANA.
  • Page 120 NPort 5600 Series User’s Manual Well Known Port Numbers TCP Socket Application Service Domain Name Server (domain) Finger protocol (Finger) World Wide Web HTTP Network news Transfer Protocol (NNTP) Network Time Protocol 160 – 223 Reserved for future use UDP Socket Application Service reserved Management Utility...
  • Page 121 SNMP Agent with MIB II & RS-232 Like Appendix C Group NPort 5600 has built-in SNMP (Simple Network Management Protocol) agent software. It supports SNMP Trap, RFC1317 RS-232 like group and RFC1213 MIB-II. The following table lists the standard MIB-II group, as well as the variable implementation for NPort 5600. RFC1213 MIB-II supported SNMP variables: System MIB Interfaces MIB...
  • Page 122 NPort 5600 Series User’s Manual SNMP Agent with MIB II & RS-232 Like Group System MIB Interfaces MIB IP MIB ICMP MIB ifOutQLen ipAdEntNetMask IcmpOutTimestamps ifSpecific ipAdEntBcastAddr IcmpOutTimestampReps ipAdEntReasmMaxSize IcmpOutAddrMasks IpNetToMediaIfIndex IcmpOutAddrMaskReps IpNetToMediaPhysAddress IpNetToMediaNetAddress IpNetToMediaType IpRoutingDiscards UDP MIB TCP MIB SNMP MIB UdpInDatagrams tcpRtoAlgorithm...
  • Page 123 NPort 5600 Series User’s Manual SNMP Agent with MIB II & RS-232 Like Group Address Translation MIB TCP MIB SNMP MIB snmpOutGetResponses snmpOutTraps snmpEnableAuthenTraps RFC1317: RS-232 MIB objects RS-232-like General Port RS-232-like Asynchronous Generic RS-232-like Group Table Port Group rs232Number rs232PortTable rs232AsyncPortTable rs232PortEntry...

  • Page 124: Appendix D Auto Ip Report Protocol

    Auto IP Report Protocol Appendix D NPort Series provides several ways to configure Ethernet IP addresses. One of them is DHCP Client. When you set up the NPort to use DHCP Client to configure Ethernet IP addresses, it will automatically send a DHCP request over the Ethernet to find the DHCP Server. And then the DHCP Server will send an available IP address to the NPort.
  • Page 125 NPort 5430I 0x80000312 0x0312 NPort 5230 0x80000312 0x0322 NPort 5210 0x80000312 0x0332 NPort 5232 0x80000312 0x1332 NPort 5232I 0x80005610 0x5618 NPort 5610-8 0x80005610 0x5613 NPort 5610-16 0x80005610 0x5638 NPort 5630-8 0x80005610 0x5633 NPort 5630-16 0x80005610 0x5658 NPort 5650-8 0x80005610 0x5653...

  • Page 126: Appendix E Compliance Notice

    Compliance Notice Appendix E CE Warming This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take appropriate measures. Federal Communications Commission Statement FCC - This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This manual is also suitable for:

Nport 5630-16Nport5610-16Nport 5650-8Nport 5610-16-48vNport 5650-8-tNport 5650-16 ... Show all

Table of Contents
