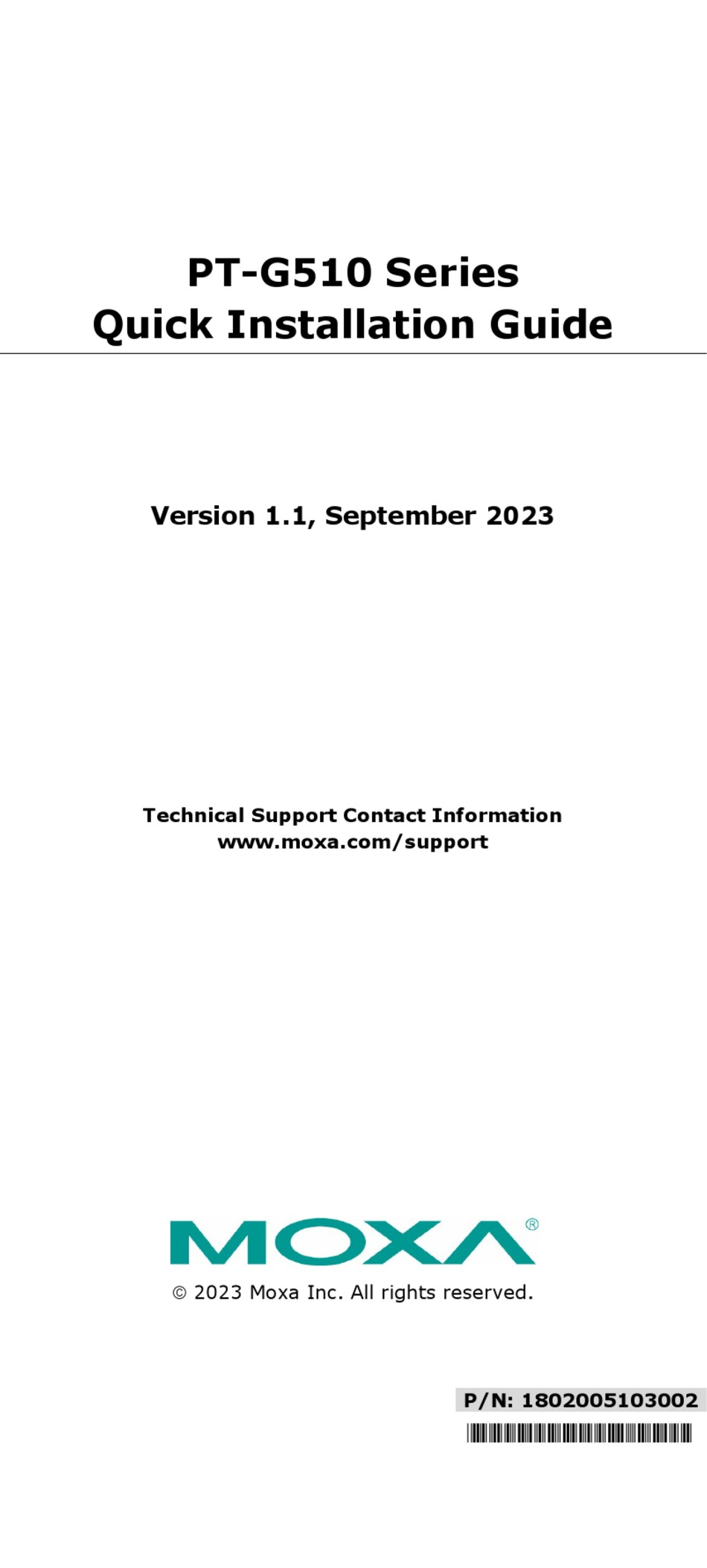

- Page 1 PT-G510 Series Quick Installation Guide Version 1.1, September 2023 Technical Support Contact Information www.moxa.com/support 2023 Moxa Inc. All rights reserved. P/N: 1802005103002 *1802005103002*...
-
Page 2: Package Checklist
Package Checklist Moxa’s PT-G510 industrial DIN-rail switch is shipped with the following items. If any of these items are missing or damaged, please contact your customer service representative for assistance. • PT-G510 switch • DIN-rail kit • Protective caps on SFP ports and USB Storage ports •... - Page 3 PT-G510-8GSFP-PHR Models PT-G510-8GTX-PHR Models - 3 -...
-
Page 4: Installation
Dimensions DIN-rail Mounting Instructions The DIN-rail mounting kit is fixed to the back panel of the PT-G510 by default. Mount the PT-G510 on a corrosion free mounting rail that meets the EN 60715 standard. Installation STEP 1: Insert the upper lip of the DIN-rail into the DIN-rail mounting kit. - Page 5 Removal STEP 1: Pull down the latch on the mounting kit with a screwdriver. STEP 2 & 3: Slightly pull the PT-G510 forward and lift to remove it from the DIN rail. ATTENTION Safety First! Be sure to disconnect the power cord before installing and/or wiring your Ethernet Switch.
-
Page 6: Wiring Requirements
Connecting the Power Inputs The PT-G510 Series switches support various types of power supplies. • WV models come with two 24 to 48 VDC power inputs. • HV models come with two 110 to 220 VDC/VAC power inputs. Refer to the table below for an overview of the power input connectors... - Page 7 ATTENTION Before connecting the PT-G510 Series to the AC or DC power inputs, make sure the power source voltage is stable. NOTE If you intend to only use one power input, be sure to disconnect the other power input (unplug the power cord or disconnect the power input from the L and N contacts).
-
Page 8: Wiring The Relay Contact
STEP 1: Insert the positive/negative DC or line/neutral AC wires into the V+/V- or L/N terminals, respectively. STEP 2: Use a flat-blade screwdriver to tighten the wire-clamps on the front of the terminal block connector to fasten the wires. STEP 3: Insert the plastic terminal block connector prongs into the terminal block receptor. - Page 9 NOTE When wiring the relay contact, we suggest using the cable type - AWG (American Wire Gauge) 16-24 (1.31-0.205 mm ) and the corresponding pin type cable terminals. The connector must be able to withstand torque at maximum 5 pound-inches. The rated temperature of wiring should be at least 105°C.
-
Page 10: The Reset Button
to connect to the PT-G510 USB storage port in order to perform configuration backup, firmware upgrade, or system log file backup. Description VCC (+5V) D- (Data-) D+ (Data+) GND (Ground) The Reset Button The reset button can perform two functions. One is to reset the PT- G510 switch back to factory default settings and the other is to perform a quick backup of configuration and log files to the ABC-02-USB automatic backup configurator. -
Page 11: Led Indicators
LED Indicators The front panel of the PT-G510 switch contains several LED indicators. The function of each LED is described in the table below: Color State Description System LEDs When system has passed power-on self-test (POST) and is ready to run. •... - Page 12 Color State Description • When the switch enables the coupling function to form a back-up path. • When the switch is tail of Turbo Chain. CPRL/TAIL Green (C/T) • When the switch is enabled Turbo Blinking Chain and Turbo Chain is broken. •...
-
Page 13: Specifications
Specifications Technology Standards IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Qfor VLAN Tagging IEEE 802.1X for authentication IEEE 802.3ad for Port Trunk with LACP IEEE 802.3x for flow control... - Page 14 Storage Temperature -40 to 85°C (-40 to 185°F) (Package Included) Ambient Relative 5 to 95% (non-condensing) Humidity Standards and Certifications Safety UL 62368-1, IEC 62368-1 CISPR 32, FCC Part 15B Class A EN 55032/35 IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 4 kV;...
- Page 15 ATTENTION 1. To protect against the risk of fire, only replace the fuse with one that has the same type and rating. 2. It is recommended to incorporate a readily accessible disconnect device into the building installation wiring. Importantly, ensure the power supply is disconnected before performing any maintenance.
