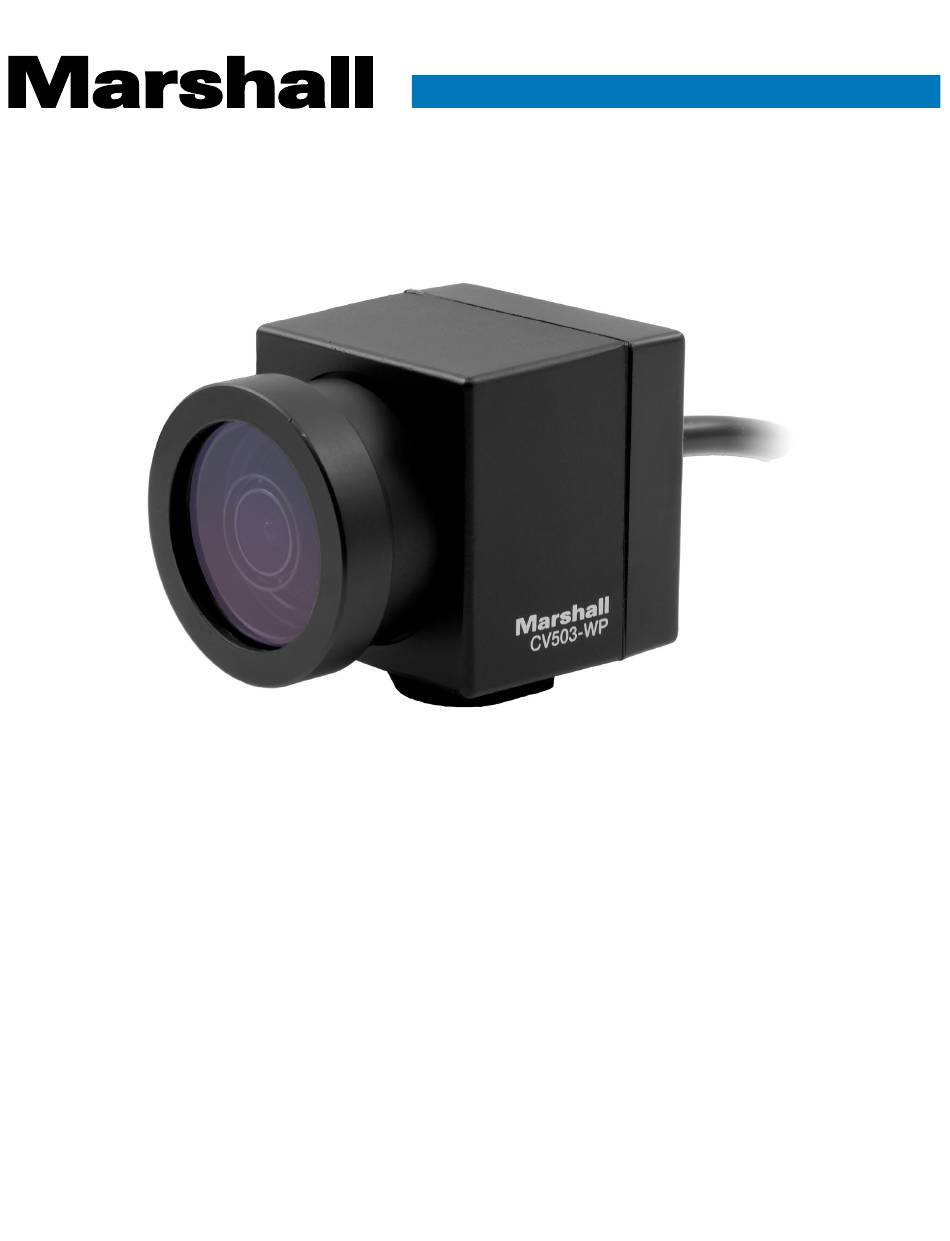

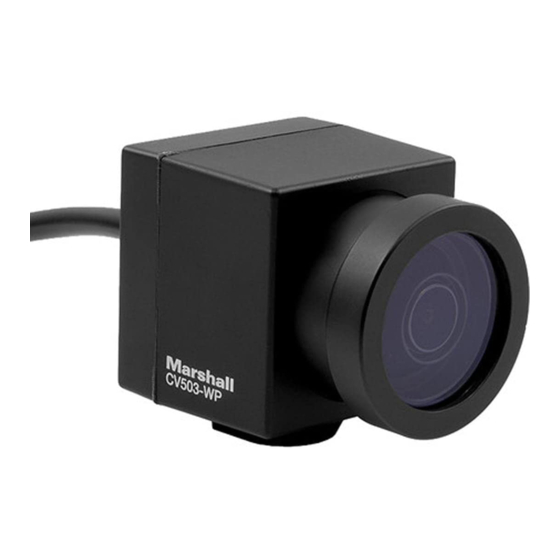

  • Page 1 B r o a d c a s t A / V D i v i s i o n CV503-WP All-Weather HD Miniature Camera User Manual...

  • Page 2: Table Of Contents

    CV503-WP Manual 1. Menu Structure SETUP SUB MENU SUB MENU Table of Contents ONE PUSH INDOOR WB CONTROL OUTDOOR BLUE Table of Contents MANUAL 1. Menu Structure AGC MAX SENS UP 2. OSD Joystick and Button AUTO AE BRIGHT 3. WB Control FLK CONTROL 4.

  • Page 3: Osd Joystick And Button

    CV503-WP Manual 2. OSD Joystick and Button SETUP SUB MENU SUB MENU SATURATION 503-WP EDGE ENHANCE AUTO SATURATE IMAGE CONTROL AUTO EDGE BLACK WHITE LEVEL GAMMA CORRECT DNR MODE DNR LEVEL DZOOM DEFOG RS485 SDI OUT POWER BACKLIGHT BINNING I/O Cable (included in box) for CV503, CV506, CV344, CV346...

  • Page 4: Wb Control

    CV503-WP Manual 3. WB CONTROL 4. AE CONTROL Select WB CONTROL using the UP or DOWN button. You can change between AUTO, ATW, PUSH, Select AE CONTROL using the UP or DOWN button. You can select one sub-mode using the UP or and MANUAL using the LEFT or RIGHT buttons.

  • Page 5: Day / Night

    CV503-WP Manual 6. IMAGE CONTROL 5. DAY / NIGHT Select IMAGE CONTROL using the UP or DOWN button. Select DAY / NIGHT using the UP or DOWN button. You can select one sub-mode from AUTO, COLOR, and NIGHT using the UP or DOWN buttons.

  • Page 6: Special

    CV503-WP Manual 7. SPECIAL 8. SETUP Select SPECIAL using the UP or DOWN button. CAMERA setup can be adjusted from this menu. You can select DEFOG, MOTION DETECT, BACKLIGHT, DEFECT PIXEL, and FLICKER DETECT using You can select CAMERA ID, Communication, System Info, and Output Format using the UP or DOWN the UP or DOWN buttons.

  • Page 7: Reset

    CV503-WP Manual 9. RESET 10. EXIT Select RESET using the UP or DOWN buttons. Select EXIT using the UP or DOWN button. • RESET: Reset the camera settings the factory defaults or user setting value. MENU WB CONTROL > MENU...
  • Page 8 Warranty 11. TROUBLESHOOTING Marshall Electronics warranties to the first consumer that this device will, under normal use, Before sending the camera for repair, please check below to make sure that the camera is be free from defects in workmanship and materials, when received in its original container, for installed correctly.
