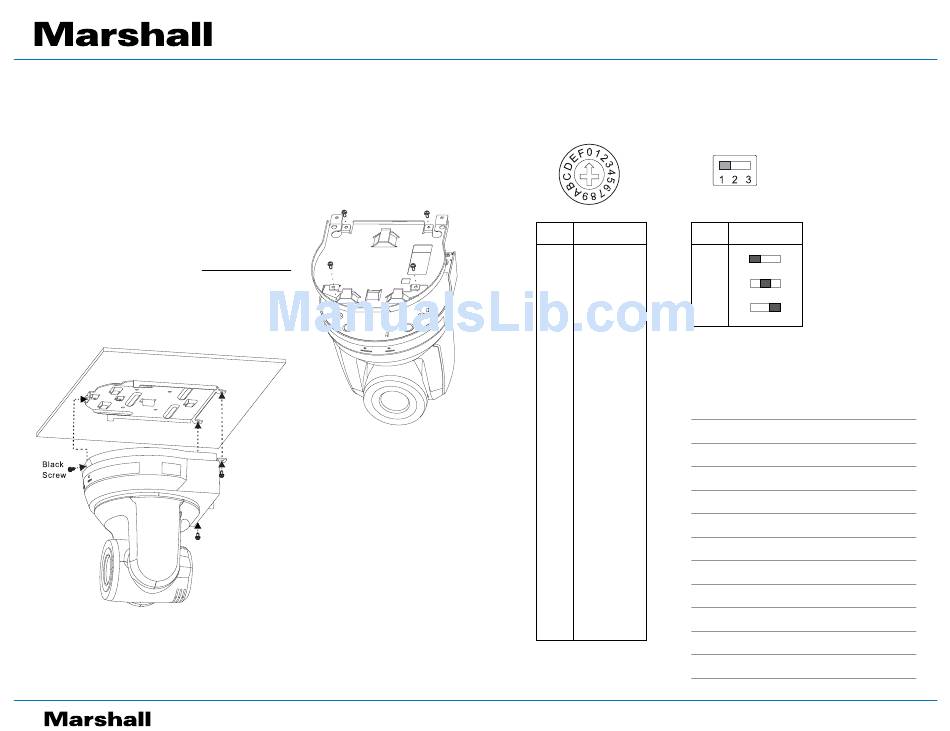

1. Installation Using Ceiling or Wall Mount
1. Prepare parts and equipment required for installation
•
Metal Plates A and B
•
M3 Screws (8x Silver, 2x Black)
1.2 Installation Steps
1.
Adjust desired camera resolution using the DIP Switch
setting prior to installation (refer to 2. DIP Switch Setting).
2.
Attach Metal Plate A to camera base using supplied M3
screws (silver).
NOTE: Please be sure to use proper mounting hardware, and ensure that the mounting surface has
obtained UL security approval.
CV620-WH2/BK2 Quick Installation Guide
CV620-WH2/BK2
•
Standard Mounting Hardware (Drill,
Screwdriver, ladder, etc.)
3.
Attach Metal Plate B to ceiling or wall
using proper mounting hardware.
4.
Attach Camera (with Metal Plate A) to
Metal Plate B, and slide to the right to
lock the plates in place.
5.
Secure the installation with 2x M3 screws
(silver), and one M3 (black) screw.
Quick Installation Guide
2. DIP Switch Setting
Output Switch
SETTING
OUTPUT MODE
0
1920X1080/60p
1
1920X1080/50p
2
1920X1080/30p
3
1920x1080/25p
4
1920x1080/60i
5
1920x1080/50i
6
1280x720/60p
7
1280x720/50p
8
1280x720/30p
9
1280x720/25p
A
1080/59.94p
B
1080/59.94i
C
1080/29.97p
720/59.94p
D
E
720/29.97p
F
Reserved
Toll Free: (800) 800-6608 | www.marshall-usa.com | support@marshall-usa.com
IR Select
ID
SETTING
1
2
3
Notes
JR101217a
