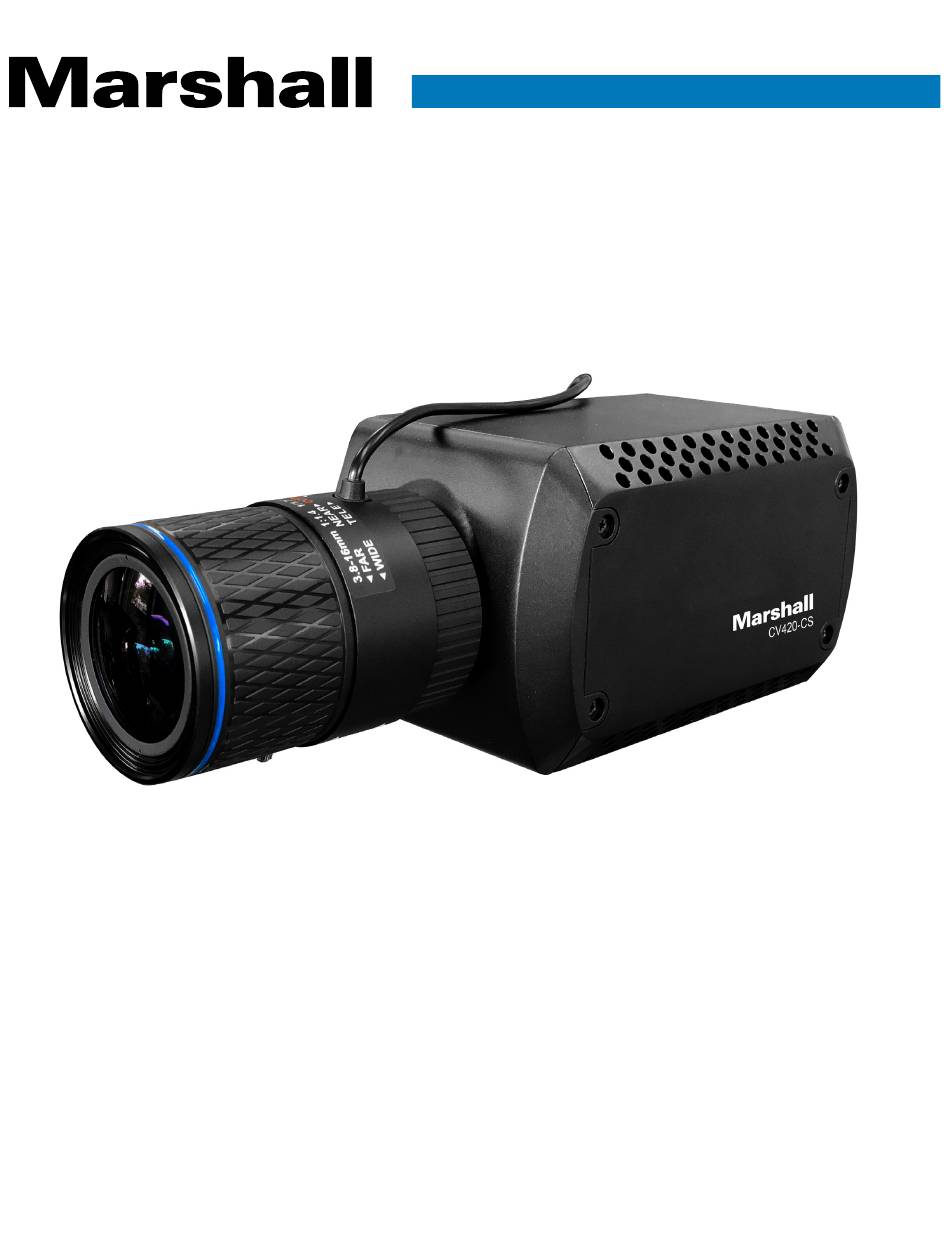

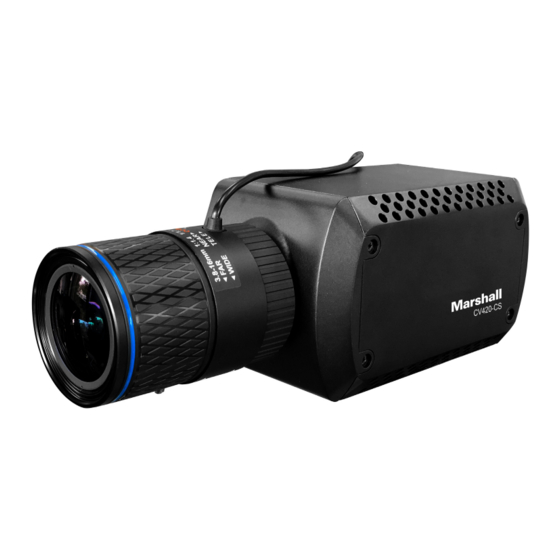

- Page 1 B r o a d c a s t A / V D i v i s i o n CV420-CS True 4K 60 Compact Camera User Manual...
-
Page 2: Table Of Contents
CV420-CS Manual 1. Menu Structure Table of Contents Setup Sub Menu Sub Menu 1. Menu Structure ONE PUSH INDOOR 2. OSD Joystick and Button WB CONTROL OUTDOOR 3. WB CONTROL BLUE MANUAL 4. AE CONTROL AGC MAX 5. DAY / NIGHT... -
Page 3: Osd Joystick And Button
CV420-CS Manual 2. OSD Joystick and Button Setup Sub Menu Sub Menu MIC/LINE AUDIO LEVEL AUDIO MIC ATTENUATOR SAMPLE BITS CONTRAST BRIGHTNESS MIC IN SATURATION RS485 LINE IN EDGE ENHANCE AUTO SATURATE IMAGE CONTROL AUTO EDGE BLACK LEVEL BLACK WHITE LV... -
Page 4: Wb Control
CV420-CS Manual 3. WB CONTROL 4. AE CONTROL Select WB CONTROL using the UP or DOWN button. You can change between AWB, ATW, PUSH, Select AE CONTROL using the UP or DOWN button. You can select one sub-mode using the UP or and MANUAL using the LEFT or RIGHT buttons. -
Page 5: Day / Night
CV420-CS Manual 5. DAY / NIGHT 6. AUDIO Select DAY / NIGHT using the UP or DOWN button. You can select one sub-mode from AUTO, Select AUDIO using the UP or DOWN button and enter ON using SEL button. You can select one COLOR, and NIGHT using the UP or DOWN buttons. -
Page 6: Image Control
CV420-CS Manual 7. IMAGE CONTROL 8. SPECIAL Select IMAGE CONTROL using the UP or DOWN button. Select SPECIAL using the UP or DOWN button. You can select CONTRAST, HUE, and image related menu using the UP or DOWN buttons. You can select BINNING, FREEZE, and HDR using the UP or DOWN buttons. -
Page 7: Setup
CV420-CS Manual 9. SETUP 10. RESET CAMERA setup can be adjusted from this menu. Select RESET using the UP or DOWN button. You can select CAMERA ID, Communication, System Info, and Output Format using the UP or DOWN buttons. MENU... - Page 8 CV420-CS Manual 11. EXIT 12. TROUBLESHOOTING Select EXIT using the UP or DOWN button. Problem Solutions Nothing appears a. Check that all connected devices are powered on. on the screen. b. Confirm that the voltage is correct. c. Confirm that the power supply provides enough current to power the MENU camera.
- Page 9 Warranty Marshall Electronics warranties to the first consumer that this device will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of two years from the purchase date. This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the warranty.
