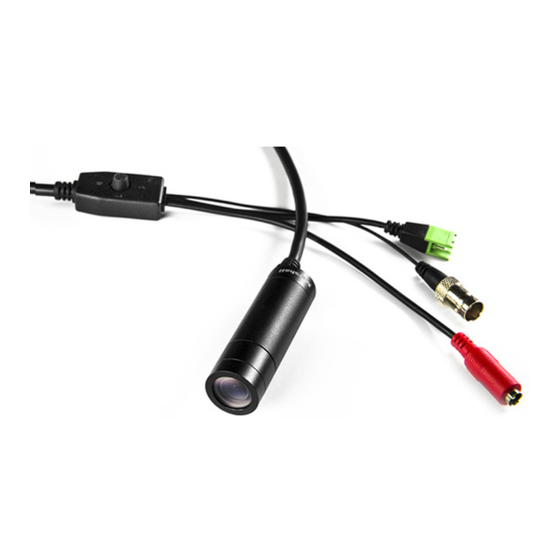

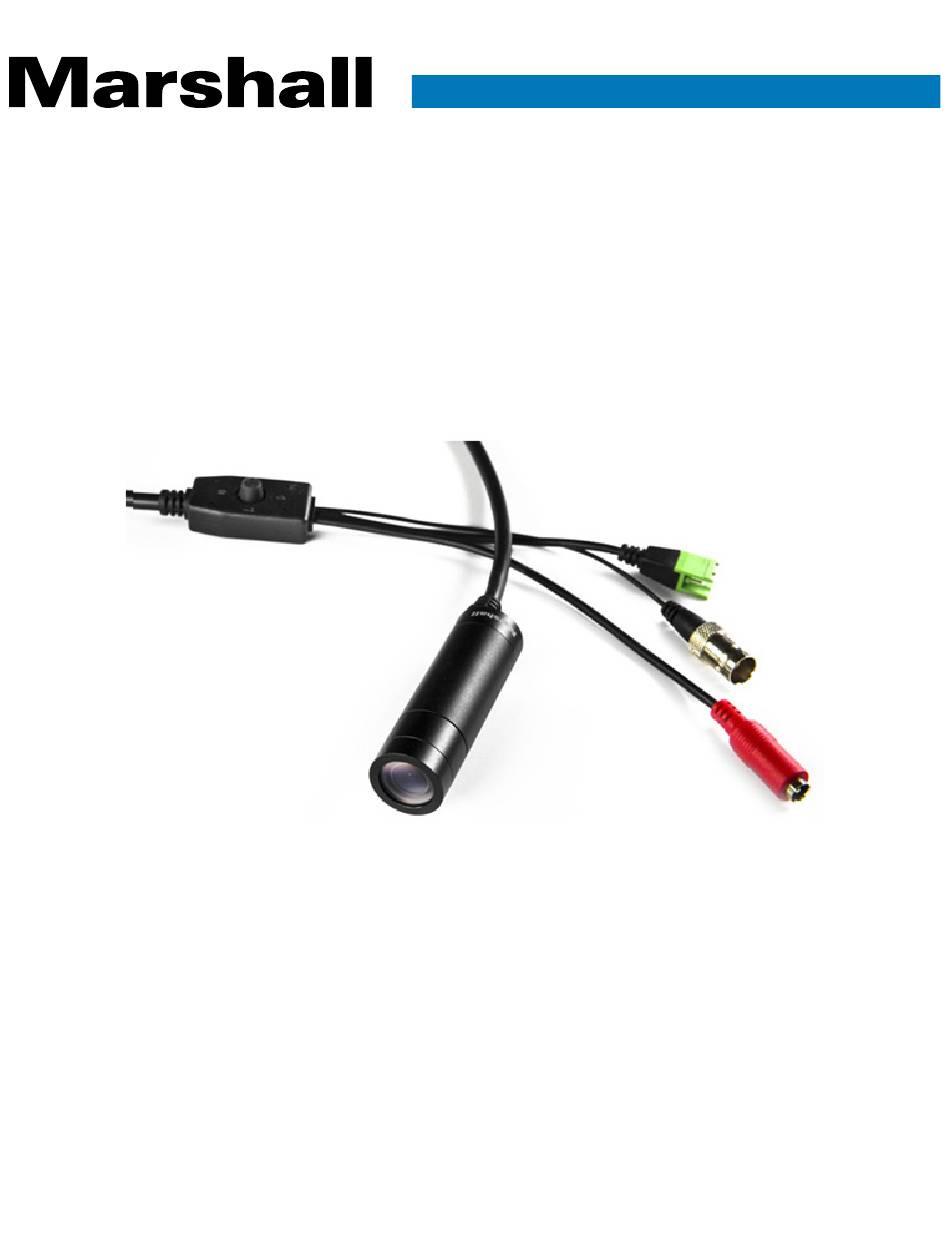

- Page 1 B r o a d c a s t A / V D i v i s i o n CV226 Lipstick HD Camera 3G/HD-SDI User Manual [Firmware Version 0.43]...
-
Page 2: Table Of Contents
• 12V Power Supply 7. IMAGE CONTROL The CV226 Camera utilizes an all-weather rated body with IP67 rated CAP that can be removed (rotate counter-clockwise) to reveal M12 lens which also can be rotated to adjust fine-focus 8. DISPLAY CONTROL position of lens on lens mount. -
Page 3: Menu Structure
CV226 Manual 2. Menu Structure Setup Sub Menu Sub Menu Setup Sub Menu Sub Menu AUTO CAM VERSION CAM TITLE PUSH PRIVACY WB CONTROL COLOR TEMPERATURE DISPLAY CONTROL CAM ID 0~255 MANUAL RED GAIN BAUDRATE 2400~115200 BLUE GAIN LANGUAGE ENG, CHN... -
Page 4: Wb Control
CV226 Manual 3. WB CONTROL 4. AE CONTROL Select WB CONTROL using the UP or DOWN button. You can change between AUTO, ATW, PUSH, Select AE CONTROL using the UP or DOWN button. You can select the AUTO, MANUAL, SHUTTER, and MANUAL using the LEFT or RIGHT button or FLICKERLESS mode from the sub menu. -
Page 5: Back Light
CV226 Manual 5. BACK LIGHT 6. IMAGE STABLIZER Select BACK LIGHT using the UP or DOWN button. You can select the BACK LIGHT, ACE, or Select IMAGE STABILIZER using the UP or DOWN button. You can select the RANGE, FILTER, and ECLIPSE mode from the sub menu. -
Page 6: Image Stabilizer
CV226 Manual 8. DISPLAY CONTROL 7. IMAGE CONTROL Select IMAGE CONTROL using the UP or DOWN button. You can adjust all image related features Select IMAGE STABILIZER using the UP or DOWN button. You can select the RANGE, FILTER, and from the sub menu. -
Page 7: Reset
CV226 Manual 9. RESET 10. TROUBLESHOOTING Select RESET using the UP or DOWN button. You can reset the setting to FACTORY or USER saved Problem Solutions settings. Choose ON or CHANGE by using the LEFT or RIGHT button. Nothing appears a. -
Page 8: Warranty
Warranty Marshall Electronics warranties to the first consumer that this device will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of two years from the purchase date. This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the warranty.
