B r o a d c a s t A / V D i v i s i o n
CV504-WP

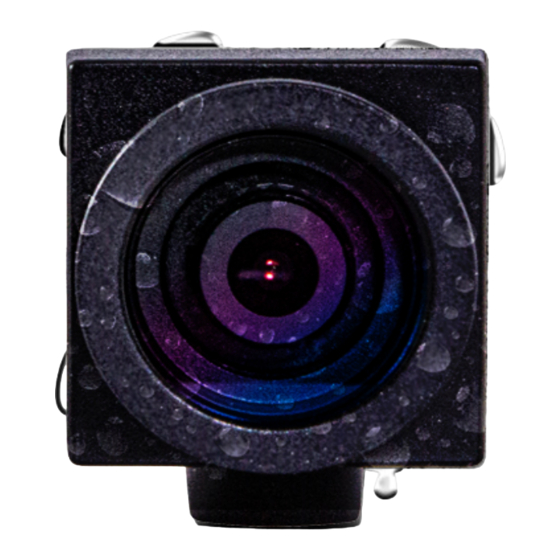

All-Weather HD Miniature Camera
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CV504-WP and is the answer not in the manual?

Questions and answers

Related Manuals for Marshall Amplification CV504-WP

Summary of Contents for Marshall Amplification CV504-WP

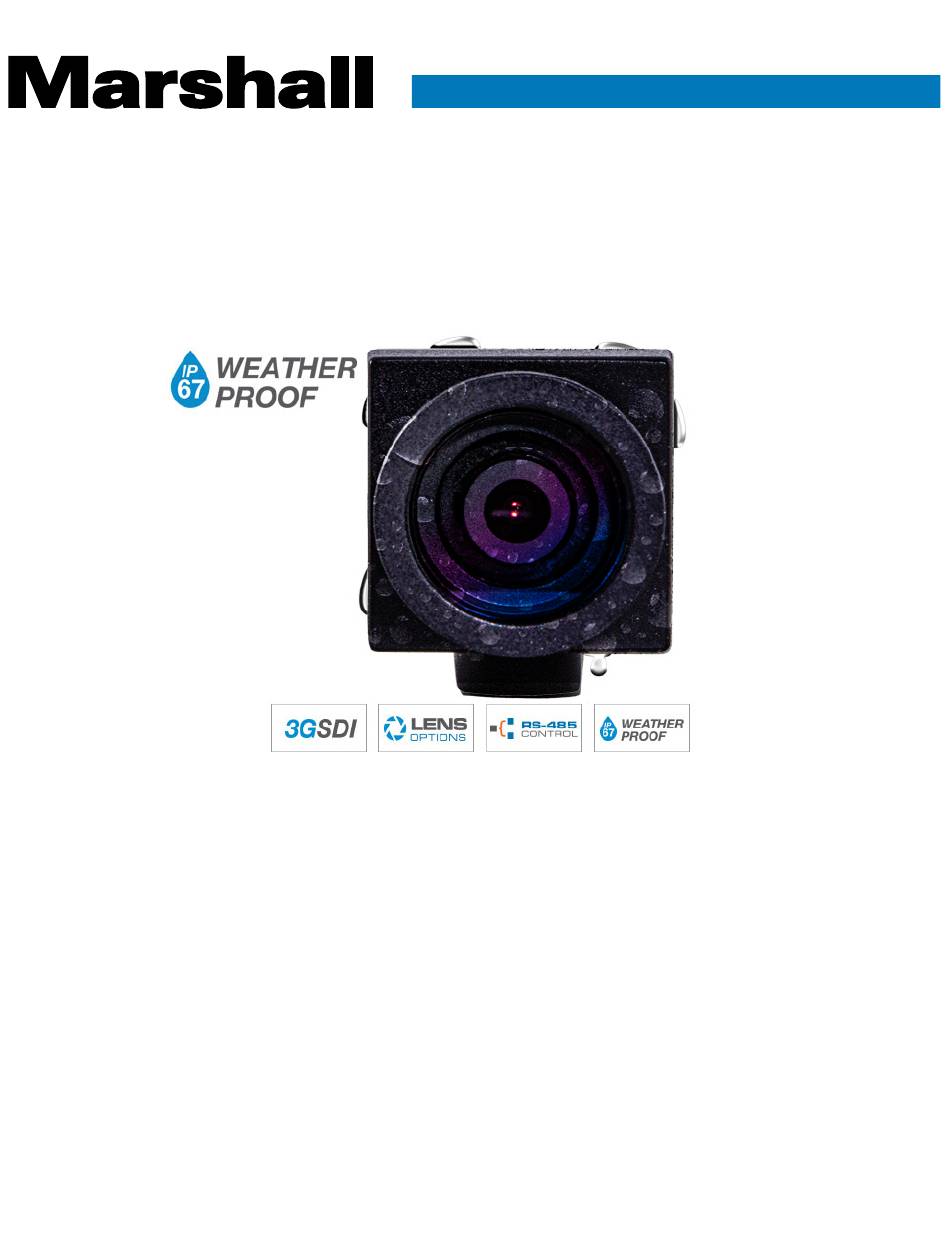

  • Page 1 B r o a d c a s t A / V D i v i s i o n CV504-WP All-Weather HD Miniature Camera User Manual...

  • Page 2: Menu Structure

    CV504-WP Manual 1. Menu Structure SETUP SUB MENU SUB MENU Table of Contents ONE PUSH INDOOR WB CONTROL OUTDOOR Table of Contents BLUE MANUAL Menu Structure AUTO BLACK BALANCE OSD Joystick and Button MANUAL WB Control AGC MAX AE Control...
  • Page 3 CV504-WP Manual 2. OSD Joystick and Button SETUP SUB MENU SUB MENU SATURATION 504-WP EDGE ENHANCE AUTO SATURATE IMAGE CONTROL AUTO EDGE BLACK WHITE LEVEL GAMMA CORRECT DNR MODE DNR LEVEL DZOOM DEFOG RS485 POWER BACKLIGHT BINNING SPECIAL DEFECT PIXEL 1.
  • Page 4 CV504-WP Manual 3. WB CONTROL 4. AE CONTROL Select WB CONTROL using the UP or DOWN button. You can change between AWB, ATW, Select AE CONTROL using the UP or DOWN button. PUSH, INDOOR, OUTDOOR and MANUAL using the LEFT or RIGHT buttons.

  • Page 5: Image Control

    CV504-WP Manual 6. IMAGE CONTROL 5. DAY / NIGHT Select IMAGE CONTROL using the UP or DOWN button. Select DAY, NIGHT or AUTO using the RIGHT or LEFT button. You can select LENS SHADING, CONTRAST, HUE, And EDGE ENHANCE using the UP or DOWN buttons.
  • Page 6 CV504-WP Manual 7. SPECIAL 8. SETUP Select SPECIAL using the UP or DOWN button. CAMERA setup can be adjusted from this menu. You can select DEFOG, MOTION DETECT, BACKLIGHT, DEFECT PIXEL, and FLICKER DETECT using You can select CAMERA ID, Communication, System Info, and Output Format using the the UP or DOWN buttons.

  • Page 7: Picture Style

    CV504-WP Manual 9. PICTURE STYLE 10. RESET Select PICTURE STYLE menu for color matrix tuning. Select RESET using the UP or DOWN buttons. You can adjust settings using the UP or DOWN buttons. • RESET: Reset the camera settings the factory defaults or user setting value.

  • Page 8: 12. Troubleshooting

    Warranty 12. TROUBLESHOOTING For Warranty information please refer to Marshall website page: Before sending the camera for repair, please check below to make sure that the camera is https://marshall-usa.com/company/warranty.php installed correctly. If it still does not perform adequately, please consult with your supplier. Problem Solution 1.
