Summary of Contents for Marshall Amplification CV730

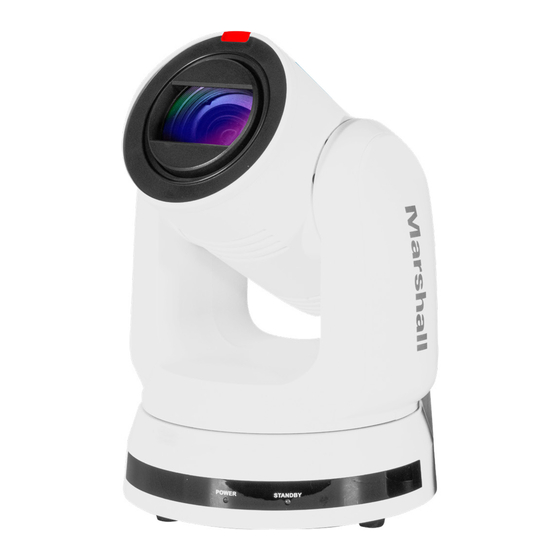

- Page 1 B r o a d c a s t A / V D i v i s i o n CV730 HD/UHD Camera 30X PTZ Video Camera User Manual...
-
Page 2: Table Of Contents
CV730 Manual Copyright Information Table of Contents Copyrights © Marshall Electronics Incorporated. All rights reserved. Copyright Information ..................2 Marshall Electronics is a trademark of Marshall Electronics Incorporated Chapter 1 Safety Instructions ..............3 Copying, reproducing or transmitting this file is not allowed if a license is not provided by Chapter 2 Package Contents .............. -
Page 3: Safety Instructions
CV730 Manual Chapter 1 Safety Instructions Precautions Warning: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. Always follow these safety instructions when setting up and using this product: 1 Operation If the HD camera will not be used for an extended time, unplug it from the power socket. -
Page 4: Package Contents
CV730 Manual ce may vary Chapter 2 Package Contents Chapter 3 Function Introduction ding on y/region 3.1 I/O functions Introduction 3.1.1 Front View Instruction for CV730 Remote Control Plate A Metal Plate B M3 Screws installation Quick Installation Guide Silver x8 / Black x2... -
Page 5: Description Of Led Indicator
CV730 Manual 3.1.2 Back View 3.1.3 Bottom Item Function Descriptions Mute cooling fan The cooling fan automatically controls its rotation speed and performs cooling in cope with the operation temperature of the machine Tripod deck lock The camera is mounted on a (specification) 1/4” - 20 UNC tripod... -
Page 6: Instruction For Installation
4.2.2.1 Prepare for the parts and equipment required during the installation Installation and connection of CV730 camera requires special skills. To install by yourself, 1. Accessories in the box (metal plates A, B, M3 screw silver x 8, black x 2) please follow necessary steps, ensure steady and tight installation of the device, and pay 2. - Page 7 CV730 Manual 4.2.2.3 Max. rotation dimension of camera 4.2.2.4 Size Diagram 1. Bottom of machine The camera can be mounted on a 1/4”, -20 UNC PTZ tripod deck by using the lock holes on the bottom for the tripod www.marshall-usa.com...
- Page 8 CV730 Manual Metal plate A - machine side Metal Plate size diagram Metal plate B - ceiling side Metal plate A locking screw Metal plate B locking screw Metal plate B locking bolt M3 threaded hole M3 threaded hole M3 threaded hole www.marshall-usa.com...
- Page 9 CV730 Manual 3. Lock the metal plate B on ceiling mounted hanger 4.2.2.5 Precautions for installation ※ Caution: 1. Before installation, please confirm the orientation of the machine relative to the object to be captured (1) Please use the hanger that has obtained UL security approval 2.
-
Page 10: Connecting Devices
CV730 Manual 4.3 Connecting devices 4.3.2 Connecting RS-422 With RS-422, at most 7 Marshall PTZ cameras can be connected. 4.3.1 Connecting RS-232 at most 7 Marshall PTZ cameras can be connected. <Note> When RS-422 connection is being used, do not use RS-232 connection. -
Page 11: Remote Control And Setting Menu
CV730 Manual Chapter 5 Remote Control and Setting Menu RS-422 connection instructions 5.1 Functions of remote control 1. Hold the two sides of RS-422 connector and pull it out in <Remark> The below functions are listed alphabetically. the direction shown by the arrow in the figure below... -
Page 12: Setting Menu
CV730 Manual 5.1 Setting Menu <Remark> Press [Menu] on the remote control to enter the setting menu; the bold underlined values in the following table are defaults. 1st Level 2nd Level 3rd Level Function Descriptions Major Items Minor Items Adjustment Values 1. - Page 13 CV730 Manual 1. 9 dB 1/3000 1/3000 2. 12 dB 1/2500 1/2500 3. 15 dB 1/2000 1/1750 4. 18 dB 1/1500 1/1250 5. 21 dB 1/1000 1/1000 6. 24 dB 1/725 1/600 Max. limit value of Gain Limit 7. 27 dB...
- Page 14 CV730 Manual Adjustable when the Pan Right Limit 0 ~ 170 Limit the right angle Manual Blue 0 ~ C ~ 128 white balance mode is set to Manual Pan Left Limit -170 ~ 0 Limit the left angle 1. Off...
- Page 15 CV730 Manual This function can only be Audio In Line In/Mic In Set Audio In enabled in the Manual Focus (MF) mode Audio Enable On / Off Turn on/off audio output When PTZ Assist is Audio Volume 0 ~ A ~ 10...
-
Page 16: Network Function Settings Description
1. 3840 x 2160/59.94p e.g.: The factory-preset default IP address of CV730 is 192.168.100.100. The 2. 3840 x 2160/50p computer IP address must be set with the same network segment, such as 3. - Page 17 CV730 Manual 6.1.2 Using the Browser to View the Images Open the browser, and enter the URL of the CV730 in the IP address bar e.g.: http://192.168.100.100 (default IP address) Enter administrator’s account and password Marshall Network Camera Account: admin ...
-
Page 18: Web Page Function Description
CV730 Manual Web Page Function Description 6.2.1 Login Screen Item Function Descriptions Username Enter user account (default: admin) Password Enter user password (default: 9999) Currently, the system supports English, Traditional Chinese and Language selection Simplified Chinese Save user account name and password to the browser. When you log... - Page 19 CV730 Manual Account Management 6.2.3 Viewing In Real Time 6.2.2 CV730 CV730 Item Function Descriptions Add user account Enter a user name and password to add a new user Set the new account management permissions User Type Admin Operator Viewer...
- Page 20 720P 59.94 / 50 / 29.97 / 25 fps letters or numbers. Do not use “/” and “space” or special symbols After switching to the resolution, the camera will restart. Please refresh Streaming 1/Streaming CV730 supports 3 streaming outputs. Please refer to 6.2.5.1 the browser 2/Streaming 3...
- Page 21 CV730 Manual Setting - Camera 6.2.6 CV730 Mode: Select the color temperature mode White Balance Auto Indoor Outdoor One Push WB Manual Sodium Lamp Open Push WB: One push color temperature is adjustable when ...
- Page 22 MIRROR CV730 Manual Mirror: Set automatic flip mode 6.2.7 Setting - Picture Setting - Audio 6.2.8 CV730 CV730 Item Function Descriptions Item Function Descriptions Open audio Turn on/off sound Picture Effect Set picture effect, Off/Neg/Black and White Soundtrack effect...
- Page 23 CV730 Manual Setting - Network 6.2.9 8554, 8556, 8557, 8080, 9090, 1935 3. Delay time is for 20 to 8000 microseconds. The default value is 120 CV730 microseconds SNTP Setting Set SNTP Server IP Set HTTP port. The default Port value is 80 Port Setting <Remark>...
- Page 24 CV730 Manual 6.2.13 Setting - Maintenance - System Service Setting - Maintenance - Upgrading Firmware 6.2.11 CV730 CV730 Item Function Descriptions Reset to the default Select the reset button to resume the factory default setting as the web Item Function Descriptions...
-
Page 25: Dip Switch Setting
Chapter 7 DIP Switch Setting Chapter 8 Troubleshooting 7.1 DIP SWITCH This chapter describes problems you may encounter while using CV730. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem 7.1.1 OUTPUT Switch (Switch to different output resolutions) still occurred, please contact your distributor or the service center. - Page 26 Warranty Marshall Electronics warranties to the first consumer that this device will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of two years from the purchase date. This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the warranty.
