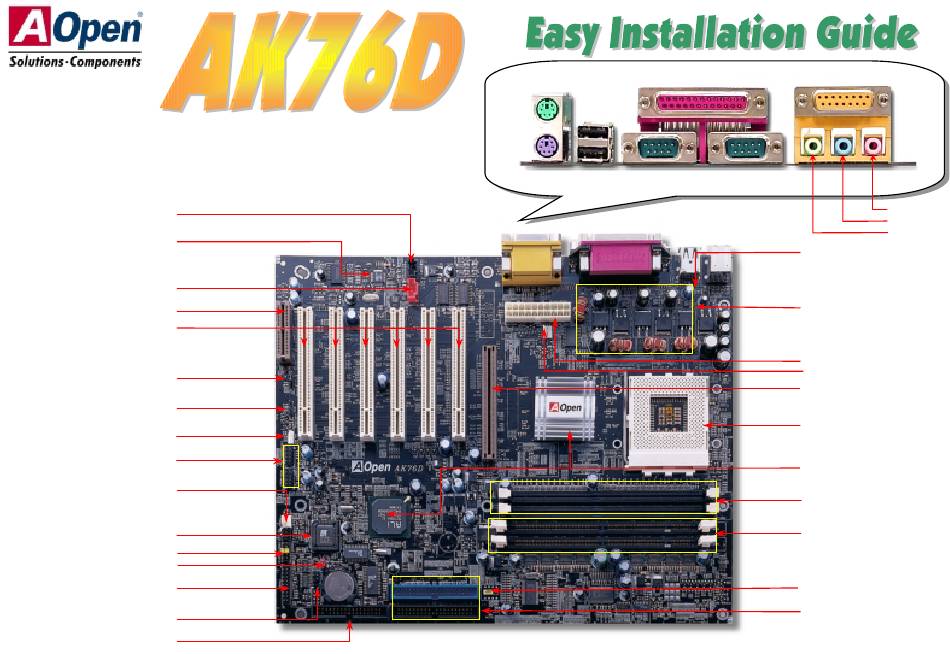

CD-IN Connector
Onboard AC97 CODEC
Modem-CN Connector
AMR Expansion Slot
32-bit PCI Expansion Slot x6
JP12 Onboard Sound
Select Jumper
WOM (Wake ON Modem) Connector
WOL (Wake ON LAN) Connector
nd
rd
2
& 3
USB Port Connector
Chassis Fan Connector with
H/W Monitoring
2Mbit Flash ROM BIOS
Front Audio Connector
CMOS Data Clear Jumper
Front Panel Connector
IrDA Connector
FDD Connector
SPP/EPP/ECP
PS/2 Mouse
Parallel Port
Connector
USB Port
PS/2 Keyboard
COM 1 Port
Connector
Game Port
COM 2 Port
PC99 Colored Back Panel
MIC-In
Line-In
Speaker Out
Resettable Fuse
2200μf Low ESR
Condensers
ATX Power Connector
CPU Fan Connector
AGP 4x Expansion Slot
462-pin CPU Socket with
Frequency/Voltage
Auto-detection supports AMD
®
Athlon
and Duron™
600MHz~1GHz+
®
ALi
Magik 1 Chipset with Pure
Aluminum Heatsink
184-pin DDR SDRAM Slot x2
support maximum up to 2GB
168-pin DIMM Slot x2
support PC100/PC133 SDRAM
maximum up to 2GB
JP21 FSB Select Jumper
ATA/33/66/100 IDE Connector x2
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AOpen AK76D
Summary of Contents for AOpen AK76D
- Page 1 SPP/EPP/ECP PS/2 Mouse Game Port Parallel Port Connector USB Port PS/2 Keyboard COM 1 Port COM 2 Port PC99 Colored Back Panel Connector MIC-In CD-IN Connector Line-In Speaker Out Onboard AC97 CODEC Resettable Fuse Modem-CN Connector 2200μf Low ESR AMR Expansion Slot Condensers 32-bit PCI Expansion Slot x6 ATX Power Connector...
-
Page 2: Jp14 Clear Cmos
Norton Anti-Virus CD x 1 This Easy Installation Guide x 1 Note: If you do not match the CPU socket Pin 1 and CPU cut edge well, you may damage the CPU. PART NO: 49.89L01.011 DOC. NO: AK76D-EG-E0105A CPU socket CPU Pin1 Lever... - Page 3 3. Installing CPU & Housing Fan 5. Setting CPU Voltage & Frequency Plug in the CPU fan cable to the 3-pin CPU FAN connector. If you have chassis fan, you Setting CPU Core Voltage can also plug it on FAN2 (without H/W monitoring) connector. This motherboard supports CPU VID function.
- Page 4 Please note that you can still use PCI modem card. we strongly recommend you not to install both of them at the same time. Warning: The AK76D supports both DDR SDRAM and SDRAM, please do not install the SDRAM on the DDR SDRAM sockets and vice versa.
- Page 5 12. Connecting CD / MODEM 10. Connecting ATX Power Connector The ATX power supply uses 20-pin connector shown below. Make sure you plug in the CD-IN (Black) right direction. The CD-IN connector is used to connect CD Audio cable from CDROM or DVD drive to onboard sound. The Modem-CN connector is used to connect Mono In/ Mic Out cable from internal modem card to onboard sound circuit.
- Page 6 17. BIOS Upgrade You can use the autorun menu of Bonus CD disc. Choose the utility and driver and select AOpen Easy Flash is more user-friendly than traditional flash method. The BIOS binary model name. file and flash routine are combined together and you simply run a single file to complete the flash process.
-
Page 7: Part Number And Serial Number
IDE cable. The problem should be caused by the Check if the system can IDE cables or HDD itself. reboot successfully. Re-install Windows 95, Windows 98 or Windows NT. AK76D is model name of motherboard; R1.00 is BIOS version... - Page 8 Test Report: We recommend to choose board/card/device from the compatibility test reports for assembling your PC. Thanks for choosing AOpen products. To provide the best and fastest service to our http://www.aopen.com.tw/tech/report/default.htm customer is our first priority. However, we receive numerous emails and phone-calls worldwide everyday, it is very hard for us to serve everyone on time.
