AOpen AK76D Manual

AOpen AK76D Manual

Hide thumbs Also See for AK76D:
Table of Contents

Advertisement

Quick Links

Download this manual
A
K
7
6
D
A
K
7
6
D

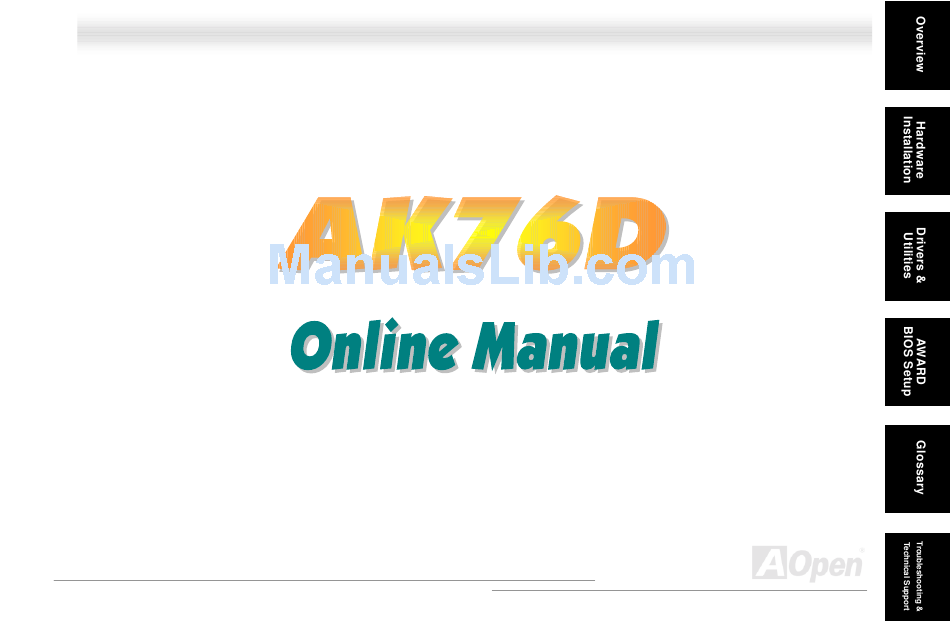

AK76D

DOC. NO.: AK76D-OL-E0105A
1
O
n
l
i
n
e
M
a
n
u
a
l
O
n
l
i
n
e
M
a
n
u
a
l

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AK76D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AOpen AK76D

Summary of Contents for AOpen AK76D

  • Page 1: Ak76D

    AK76D DOC. NO.: AK76D-OL-E0105A...

  • Page 2: Table Of Contents

    ’ ’ AK76D ..............................1 What’s in this manual ..............................2 You Must Notice ................................8 Before You Start ................................9 Overview ..................................10 Feature Highlight ................................11 Quick Installation Procedure............................14 Motherboard Map ................................15 Block Diagram ................................16 Hardware Installation ........................17 Clear CMOS Data ................................18 CPU Installation................................19...
  • Page 3 AC Power Auto Recovery ..............................31 IDE and Floppy Connector ............................32 IrDA Connector ................................34 WOM (Zero Voltage Wake on Modem) Connector ......................35 WOL (Wake on LAN) ..............................38 AGP (Accelerated Graphic Port) Expansion Slot ......................40 AMR (Audio/Modem Riser) ............................41 PC99 Color Coded Back Panel............................42 Support 2 &...
  • Page 4 BIOS Upgrade ................................69 Glossary ............................71 AC97 .....................................71 ACPI (Advanced Configuration & Power Interface)......................71 AGP (Accelerated Graphic Port) ............................71 AMR (Audio/Modem Riser) ............................72 AOpen Bonus Pack CD ..............................72 APM (Advanced Power Management) ...........................72 ATA (AT Attachment)..............................72 ATA/66 ...................................72 ATA/100 ..................................73...
  • Page 5 BIOS (Basic Input/Output System) ..........................73 Bus Master IDE (DMA mode)............................73 CNR (Communication and Networking Riser) ........................73 CODEC (Coding and Decoding) ............................74 DDR (Double Data Rate) SDRAM..........................74 DIMM (Dual In Line Memory Module) ..........................74 DMA (Direct Memory Access) ............................74 ECC (Error Checking and Correction)..........................75 EDO (Extended Data Output) Memory...........................75 EEPROM (Electronic Erasable Programmable ROM) ....................75 EPROM (Erasable Programmable ROM) ........................75...

  • Page 6: Troubleshooting

    PC-100 DIMM ................................78 PC-133 DIMM ................................78 PC-1600 or PC-2100 DDR SDRAM ..........................78 PCI (Peripheral Component Interface) Bus........................78 PDF Format ...................................79 PnP (Plug and Play) ..............................79 POST (Power-On Self Test) ............................79 RDRAM (Rambus DRAM)..............................79 RIMM (Rambus Inline Memory Module).........................80 SDRAM (Synchronous DRAM) ............................80 Shadow E PROM ................................80 SIMM (Single In Line Memory Module) ..........................80...
  • Page 7 Technical Support........................... 87 Product Registration........................90...

  • Page 8: You Must Notice

    All of the specifications and information contained in this manual are subject to change without notice. AOpen reserves the right to revise this publication and to make reasonable changes. AOpen assumes no responsibility for any errors or inaccuracies that may appear in this manual, including the products and software described in it.

  • Page 9: Before You Start

    This Online Manual will introduce to the user how this product is installed. All useful information will be described in later chapters. Please keep this manual carefully for future upgrades or system configuration changes. This Online Manual is saved in format, we recommend using Adobe Acrobat Reader 4.0 for online viewing, it is included in Bonus CD disc...

  • Page 10: Overview

    AGP 1X/2X/4X mode and pipelined spilt-transaction long burst transfer up to 1066MB/sec. With high bandwidth 266MB/s 8-bit V-Link Host Controller, two PC2100 DDR SDRAM can be applied to AK76D and the maximum memory size can be up to 2GB.

  • Page 11: Feature Highlight

    The AGP video cards support data transfer rate up to 1066MB/s. As AK76D includes one AGP expansion slot for a bus mastering AGP graphic card, AD and SBA signaling, it can support 133MHz 2X/4X mode.
  • Page 12 1M/2M4M/8M/16M/32M/64MxN SDRAM and maximum up to 2GB. In addition, AK76D still equips with two 168-pin SDRAM sockets that allow you to install PC100 or PC133 memory up to 2 GB as well. AK76D allows SDRAM to run at either synchronous or pseudo-synchronous mode with the host CPU bus frequency (66/100/133MHz).
  • Page 13 Power Management/Plug and Play AK76D supports the power management function that confirms to the power-saving standards of the U.S. Environmental Protection Agency (EPA) Energy Star program. It also offers Plug-and-Play, which helps save users from configuration problems, thus making the system much more user-friendly.

  • Page 14: Quick Installation Procedure

    This page gives you a quick procedure on how to install your system. Follow each step accordingly. Installing CPU and Fan Installing System Memory (DIMM) Connecting Front Panel Cable Connecting IDE and Floppy Cable Connecting ATX Power Cable Connecting Back Panel Cable Power-on and Load BIOS Setup Default Setting CPU Frequency Reboot...

  • Page 15: Motherboard Map

    CD-IN Connector Motherboard Map Onboard AC97 CODEC PC99 Colored Back Panel Resettable Fuse MODEM-CN Connector 2200μf Low ESR Condensers AMR Expansion Slot ATX Power Connector 32-bit PCI Expansion Slot x6 CPU Fan Connector JP12 Onboard Sound AGP 4x Expansion Slot Select Jumper 462-pin CPU Socket with WOM (Wake ON Modem)

  • Page 16: Block Diagram

    PC2100 DDR SDRAM Up to 2GB 32-bit PCI Slot x6 DDR SDRAM Socket x2 PCI Bus Primary 33/66100 Channel 66/100/133MHz M1647 Socket 462 System Bus DDR V-Link IDE Drive x4 Host North 528 Secondary Athlon / Duron Channel AGP Bus M1535D+ AC’97 Link V-Link Client...

  • Page 17: Hardware Installation

    This chapter describes jumpers, connectors and hardware devices of this motherboard. Note: Electrostatic discharge (ESD) can damage your processor, disk drives, expansion boards, and other components. Always observe the following precautions before you install a system component. Do not remove a component from its protective packaging until you are ready to install it. Wear a wrist ground strap and attach it to a metal part of the system unit before handling a component.

  • Page 18: Clear Cmos Data

    You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below. Turn off the system and unplug the AC power. Remove ATX power cable from connector PWR2. Locate JP14 and short pins 2-3 for a few seconds. Return JP14 to its normal setting by shorting pins 1 &...
  • Page 19 ® ® This motherboard supports AMD Athlon and Duron™ Socket 462 series CPU. Be careful of CPU orientation when you plug it into CPU socket. Pull CPU socket lever and up to 90-degree angle. Locate Pin 1 on the socket and look for a black dot or cut edge on the CPU upper left.

  • Page 20: Jp21 Fsb/Pci Clock Ratio

    This jumper is used to specify the relationship of PCI and FSB clock. Generally speaking, if you are not overclockers, we recommend you to set at the default setting. You can adjust CPU FSB frequency via BIOS setup program. Based on the CPU type, ®...

  • Page 21: Cpu Installation

    Clock = CPU FSB Clock / Clock Ratio Clock = PCI Clock x 2 Clock Ratio CPU (Host) Memory 66MHz 33MHz PCI x2 or x3 2X, overclocking 75MHz 37.5MHz 75MHz PCI x2 or x3 100MHz 33MHz 66MHz PCI x2 or x3 or x4 3X, overclocking 112MHz 37.3MHz...

  • Page 22: Cpu Jumper-Less Design

    CPU VID signal and SMbus clock generator provide CPU voltage auto-detection and allow user to set the CPU frequency through BIOS setup. Therefore, no jumpers or switches are needed. And you will never worry about wrong CPU voltage detection. Clock Generator ®...
  • Page 23 This motherboard can automatically detect CPU core voltage from 1.1V to 1.85V. BIOS >PC Health Warning: Higher CPU core voltage may be able to increase CPU speed for overclocking, but you may damage the CPU or reduce the CPU lifecycle...
  • Page 24 This motherboard is CPU jumper-less design, you can set CPU frequency through the BIOS setup, and no jumpers or switches are needed. BIOS Setup > Frequency/Voltage Control > CPU Clock Setting CPU Ratio 1.5x, 2x, 2.5x, 3x, 3.5x, 4x, 4.5x, 5x, 5.5x, 6x, 6.5x, 7x, 7.5x, and 8x FSB 100~132MHz FSB 133~166MHz CPU FSB...
  • Page 25 Note: This motherboard support CPU Core Frequency = CPU Clock * CPU Ratio auto-detection function. Hence, you PCI Clock = CPU Bus Clock / Clock Ratio don’t need to setup the CPU frequency manually. Clock = PCI Clock x 2 CPU Core Frequency FSB Clock Ratio...

  • Page 26: Cpu And Housing Fan Connector (With H/W Monitoring)

    Plug in the CPU fan cable to the 3-pin CPU FAN connector. If you have chassis fan, you can also plug it on FAN2 (without H/W monitoring) connector. CPU Fan Connector +12V SENSE Note: Some CPU fans do not have +12V sensor pin, so that they cannot support SENSE...

  • Page 27: Sdram Socket

    PC133 memory and can go up to 2 GB as well. When you install both DDR and SDRAM modules, the SDRAM will be automatically detected first; however, we strongly recommend you not to install both of them at the same time. Warning: AK76D supports both DDR SDRAM and SDRAM, please do not install the SDRAM on the DDR SDRAM sockets and vice versa.
  • Page 28 Please follow the procedure as shown below to finish memory installation. Make sure the DIMM module’s pin face down and match the socket’s size as depicted below. Pin 1 52 pins 40 pins Insert the module straight down to the DIMM slot with both hands and press down firmly until the DIMM module is securely in place.

  • Page 29: Front Panel Connector

    Attach the power LED, EMPI, speaker, power and reset switch connectors to the corresponding pins. If you enable “Suspend Mode” item in BIOS Setup, the ACPI & Power LED will keep flashing while the system is in suspend mode. Locate the power switch cable from your ATX housing. It is 2-pin female connector from the housing front panel.

  • Page 30: Atx Power Connector

    The ATX power supply uses 20-pin connector shown below. Make sure you plug in the right direction. PW-OK +3.3V 5VSB +3.3V +12V +3.3V -12V PS-ON...

  • Page 31: Ac Power Auto Recovery

    A traditional ATX system should remain at power off stage when AC power resumes from power failure. This design is inconvenient for a network server or workstation, without an UPS, that needs to keep power-on. This motherboard implements an AC Power Auto Recovery function to solve this problem.

  • Page 32: Ide And Floppy Connector

    Connect 34-pin floppy cable and 40-pin IDE cable to floppy connector FDC and IDE connector. Be careful of the pin1 orientation. Wrong orientation may cause system damage. Primary Primary Master (1st) Slave (2nd) ATA 33/66/100 IDE Connector IDE1 (Primary) IDE2 (Secondary) Pin 1 Secondary Secondary...
  • Page 33 IDE1 is also known as the primary channel and IDE2 as the secondary channel. Each channel supports two IDE devices that make a total of four devices. In order to work together, the two devices on each channel must be set differently to Master and Slave mode.

  • Page 34: Irda Connector

    The IrDA connector can be configured to support wireless infrared module. With this module and application software such as Laplink or Windows 95 Direct Cable Connection, the user can transfer files to or from laptops, notebooks, PDA devices and printers. This connector supports HPSIR (115.2Kbps, 2 meters) and ASK-IR (56Kbps).

  • Page 35: Wom (Zero Voltage Wake On Modem) Connector

    This motherboard implements special circuit to support Wake On Modem; both internal modem card and external box modem are supported. Since internal modem card consumes no power when system power is off, it is recommended to use an internal modem. To use internal modem, connect 4-pin cable from RING connector of modem card to the WOM connector on the motherboard.
  • Page 36 Traditional Green PC suspend mode does not really turn off the system power supply; it uses external box modem to trigger MB COM port and resume back to active. Serial Port (Modem Side) Pin 1 Serial Port (Motherboard Side) Note: This picture is for example only. The motherboard may not be exactly the same as the one you purchase.
  • Page 37 With the help of the ATX soft power On/Off, it is possible to have a system totally power off, and wakeup to automatically answer a phone call as an answering machine or to send/receive a fax. You may identify whether or not your system is in true power off mode by checking to see if the fan of your power supply is off.

  • Page 38: Wol (Wake On Lan)

    This feature is very similar as Wake On Modem, but it goes through local area network. To use Wake On LAN function, you must have a network card with a chipset that supports this feature, and connect a cable from LAN card to motherboard WOL connector. The system identification information (probably IP address) is stored in network card and because there is a lot of traffic on the Ethernet, you need to install network management software, such as ADM, to check how to wake up the system.
  • Page 39 WOL Connector (Ethernet Card Side) WOL Connector (Motherboard Side) Note: This picture is for example only. The motherboard may not be exactly the same as the one you purchase.

  • Page 40: Agp (Accelerated Graphic Port) Expansion Slot

    AK76D provides an 4x slot. The AGP 4x is a bus interface targeted for high-performance 3D graphic. AGP supports only memory read/write operation and single-master single-slave one-to-one only. AGP uses both rising and falling edge of the 66MHz clock, for 2X AGP, the data transfer rate is 66MHz x 4bytes x 2 = 528MB/s. AGP is now moving to AGP 4x mode, 66MHz x 4bytes x...

  • Page 41: Amr (Audio/Modem Riser)

    is a riser card that supports sound or modern function. Because CPU computing power is getting stronger, the digital processing job can be implemented in main chipset and share CPU power. The analogical conversion (CODEC) circuit requires a different and separate circuit design that is put on AMR card. This motherboard implements sound CODEC on board (can be disabled by JP12), but reserves AMR slot for the option of modem function.

  • Page 42: Pc99 Color Coded Back Panel

    The onboard I/O devices are PS/2 Keyboard, PS/2 Mouse, serial ports COM1 and COM2, Printer, USB, AC97 sound and game port. The view angle of drawing shown here is the back panel of the housing. SPP/EPP/ECP Parallel Port PS/2 Mouse Game Port Connector USB Port...

  • Page 43: Support 2 Nd & 3 Rd Usb Port

    & & This motherboard supports three USB ports and provides six USB connectors. Two of them are on the PC99 colored back panel, and 2 and 3 port connector is next to PCI slots. You can use proper cable to connect others USB connectors to the back or front panel of chassis.

  • Page 44: Cd Audio Connector

    This connector is used to connect CD Audio cable from CDROM or DVD drive to onboard sound. L GND GND CD-IN...

  • Page 45: Modem Audio Connector

    This connector is used to connect Mono In/MIC Out cable from internal modem card to onboard sound circuit. The pin 1-2 is Mono In, and the pin 3-4 is MIC Out. Please note that there is no standard for this kind of connector yet, only some internal modem cards implement this connector.

  • Page 46: Front Audio

    If your housing has been designed with an audio port on the front panel, you’ll be able to connect onboard audio to front panel through this connector. By the way, please remove the jumper caps from the Front Audio Connector before you connect the cable. If your housing doesn’t have an audio port on the front panel or you don’t need to connect onboard audio to the front anymore, please keep those two yellow jumper caps inserted on pin 5/6 and pin 9/10.

  • Page 47: Battery-Less And Long Life Design

    This Motherboard implements Flash ROM and a special circuit that allows you to save your current CPU and CMOS Setup configurations without using the battery. The RTC (real time clock) can also keep running as long as the power cord is plugged. If you lose your CMOS data by accident, you can just reload the CMOS configurations from Flash ROM and the system will recover as usual.

  • Page 48: Over-Current Protection

    There is still certain risk that CPU, memory, HDD, and add-on cards installed on this motherboard may be damaged because of component failure, human operating error or other unknown reasons. AOpen cannot guarantee the protection circuit will always work perfectly.

  • Page 49: Hardware Monitoring

    This motherboard implements a hardware monitoring system. As you turn on your system, this smart design will continue to monitor your system’s working voltage, fan status and CPU temperature. If any of these systems’ status goes wrong, there will be an alarm through the AOpen Hardware Monitoring Utility to warn the user.

  • Page 50: Resettable Fuse

    Traditional motherboard has fuse for Keyboard and port to prevent over-current or shortage. These fuses are soldered onboard that user cannot replace when they are damaged (in order to protect motherboard), and the motherboard will remain malfunction. Equipped with expensive Resettable Fuses, this motherboard can resume back to normal function after fuses had done their protection job.

  • Page 51: 2200 Μf Low Esr Capacitor

    μ μ μ μ f f f f μ μ μ μ f f f f The quality of low ESR capacitor (Low Equivalent Series Resistance) during high frequency operation is very important for the stability of CPU power. The idea of where to put these capacitors is another know-how that requires experience and detail calculation.
  • Page 52 The power circuit of the CPU core voltage must be checked to ensure system stability for high speed CPUs (such as the new Pentium 4, or when overclocking). A typical CPU core voltage is 2.0V, so a good design should control voltage between 1.860V and 2.140V.

  • Page 53: Layout (Frequency Isolation Wall)

    For high frequency operation, especially overclocking, layout is the most important factor to make sure chipset and CPU working in stable condition. The layout of this motherboard implements AOpen’s unique design called “ Frequency Isolation Wall”. Separating each critical portion of motherboard into...

  • Page 54: Pure Aluminum Heatsink

    To cool down CPU and Chipset is important for system reliability. Aluminum heat sink provides better heat consumption especially when you are trying to overclock.

  • Page 55: Driver And Utility

    There are motherboard drivers and utilities included in AOpen Bonus CD disc. You don’t need to install all of them in order to boot your system. But after you finish the hardware installation, you have to install your operation system first (such as Windows 98) before you can install any drivers or utilities.

  • Page 56: Auto-Run Menu From Bonus Cd Disc

    You can use the auto-run menu of Bonus CD disc. Choose the utility and driver and select model name.

  • Page 57: Installing Windows Operation System

    First, don’t install any add-on card except card. Install Bonus Pack AGP Patch Link. It is an auto-installation tool. Install IDE utility to enable DMA Mode. Install on Board AC97 Audio driver in Bonus Pack. Install other Add-on cards and their drivers.

  • Page 58: Installing Onboard Sound Driver

    This motherboard comes with an AD 1885 AC97 CODEC. You can find the audio driver from the Bonus Pack CD disc auto-run menu.

  • Page 59: Acpi Suspend To Hard Drive

    ACPI Suspend to Hard Drive is basically controlled by Windows operation system. It saves your current work (system status, memory and screen image) into hard disk, and then the system can be totally power off. Next time, when power is on, you can resume your original work directly from hard disk within few seconds without go through the Windows booting process and run your application again.
  • Page 60 System Requirement AOZVHDD.EXE 1.30b or later. Delete config.sys and autoexec.bat. Fresh installation of Windows 98 on a new system 1. Execute "Setup.exe /p j" to install Windows 98 2. After Windows 98's installation is complete, go to the Control Panel > Power Management. a.
  • Page 61 Changing from APM to ACPI (Windows 98 only) 1. Run "Regedit.exe" a. Go through the following path HKEY_LOCAL_MACHINE SOFTWARE MICROSOFT WINDOWS CURRENT VERSION DETECT b. Select "ADD Binary" and name it as "ACPIOPTION". c. Right click and select Modify, add "01" after "0000" to make it "0000 01". d.
  • Page 62 4. Run "Add New Hardware" again and it will find "Advanced Power Management Resource". 5. Click "OK". Tip: Currently we found only ATI 3D Rage Pro AGP card would support ACPI suspend to disk. Please refer to AOpen web site for latest update...

  • Page 63: Acpi Suspend To Ram (Str)

    This motherboard supports ACPI Suspend to RAM function. With this function, you can resume your original work directly from SDRAM without going through the Windows 98 booting process and run your application again. Suspend to SDRAM saves your current work in the system memory, it is faster than Suspend to Hard Drive but requires power supplied to SDRAM, while Suspend to Hard Drive requires no power.
  • Page 64 To implement ACPI Suspend to DRAM, please follow the procedures as below: System Requirement An ACPI OS is required. Currently, Windows 98 is the only choice. Please refer to ACPI Suspend to Hard Drive of how to setup Windows 98 ACPI mode. Procedures Changed the following BIOS settings.

  • Page 65: Award Bios

    Most BIOS setting of AK76D had optimized by AOpen’s R&D engineering team. But, the default setting of BIOS still can’t fine-tune the chipset controlling entire system. Hence, the rest of this chapter is intended to guide you through the process of configuring your system using setup.

  • Page 66: How To Use Award™ Bios Setup Program

    Award™ BIOS setup program. The following table provides details about how to use keyboard in the Award™ BIOS setup program. By the way, all products of AOpen also provides a special function in the BIOS setup, you can press <F3> key selecting preferred menu language to display.
  • Page 67 Load fail-save setting value from CMOS. Load turbo setting value from CMOS. Save changed setting and exit setup program. Note: AOpen always dedicates to give users a more friendly computer system. Now, we include all function descriptions of BIOS setup program into the BIOS Flash ROM.

  • Page 68: How To Enter Bios Setup

    After you finish the setting of jumpers and connect correct cables. Power on and enter the BIOS Setup, press <Del> during POST (Power-On Self Test). Choose "Load Setup Defaults" for recommended optimal performance. Warning: Please avoid of using "Load Turbo Defaults", unless you are sure your system components (CPU, SDRAM, HDD, etc.) are good enough for turbo setting.

  • Page 69: Bios Upgrade

    By doing so, you are taking a risk of BIOS flash failure. If you indeed intent on upgrading, PLEASE BE SURE to use the right BIOS revision for the right motherboard model. AOpen Easy Flash is a little different than traditional flash method. The BIOS binary file and flash routine are linked together and you simply run a single commend to complete the flash process.
  • Page 70 Below are the steps for easy flashing procedures: (applies for Award BIOS ONLY) 1. Download new BIOS upgrade file from AOpen's web site. For example, AK76D102.ZIP. 2. Run shareware PKUNZIP (http://www.pkware.com/) which supports miscellaneous operation systems to extract the binary BIOS file and the flash utility.

  • Page 71: Glossary

    AGP uses both rising and falling edge of the 66MHz clock, for 2X AGP, the data transfer rate is 66MHz x 4byte x 2 = 528MB/s. AGP is now moving to 4X mode, 66MHz x 4byte x 4 = 1056MB/s. AOpen is the first company...

  • Page 72: Amr (Audio/Modem Riser)

    Unlike ACPI, BIOS controls most APM power management functions. AOpen Suspend to Hard Drive is a good example of APM power management. ATA is the specification of diskette interface. In 80’s, many software and hardware manufacturers instituted the ATA specification together.

  • Page 73: Ata/100

    ATA/100 is a new IDE specification under developing. ATA/100 uses both rising edge and falling edge as ATA/66 but clock cycle time is reduced to 40ns. The data transfer rate is (1/40ns) x 2 bytes x 2 = 100MB/s. To use ATA/100, you need special 80-wire IDE cable, the same as ATA/66.

  • Page 74: Codec (Coding And Decoding)

    Normally, CODEC means a circuit that can do digital to analog conversion and also the analog to digital conversion. It is part of AC97 sound/modem solution. DDR SDRAM utilizes the existing SDRAM infrastructure and technology while doubling the nominal bandwidth available to systems in an easy to design and simple to adopt way.

  • Page 75: Ecc (Error Checking And Correction)

    The ECC mode needs 8 ECC bits for 64-bit data. Each time memory is accessed; ECC bits are updated and checked by a special algorithm. The ECC algorithm has the ability to detect double-bit error and automatically correct single-bit error while parity mode can only detect single-bit error.

  • Page 76: Ev6 Bus

    Flash ROM can be re-programmed by electronic signals. It is easier for BIOS to upgrade by a flash utility, but it is also easier to be infected by virus. Because of increase of new functions, BIOS size is increased from 64KB to 256KB (2M bit). AOpen AX5T is the first board to implement 256KB (2Mbit) Flash ROM.

  • Page 77: Fsb (Front Side Bus) Clock

    FSB Clock means CPU external bus clock. CPU internal clock = CPU FSB Clock x CPU Clock Ratio See SMBus. IEEE 1394 is a low-cost digital interface originated by Apple Computer as a desktop LAN and developed by the IEEE 1394 working group.

  • Page 78: Pbsram (Pipelined Burst Sram)

    For Socket 7 CPU, one burst data read requires four QWord (Quad-word, 4x16 = 64 bits). PBSRAM only needs one address decoding time and automatically sends the remaining QWords to CPU according to a predefined sequence. Normally, it is 3-1-1-1, total 6 clocks, which is faster than asynchronous SRAM.

  • Page 79: Pdf Format

    A file format for electronic document, PDF format is independent from platform, you can read PDF file under Windows, Unix, Linux, Mac … with different PDF reader. You can also read PDF file by web browser such as IE and Netscape, note that you need to install PDF plug-in first (Included in Acrobat Reader).

  • Page 80: Rimm (Rambus Inline Memory Module)

    SDRAM comes in 64-bit 168-pin DIMM and operates at 3.3V. AOpen is the first company to support dual-SDRAM DIMMs onboard (AP5V), from Q1 1996 A memory space in Flash-ROM to simulate E PROM operation, AOpen motherboard uses Shadow E...

  • Page 81: Smbus (System Management Bus)

    SMBus is also called I2C bus. It is a two-wire bus developed for component communication (especially for semiconductor IC). For example, set clock of clock generator for jumper-less motherboard. The data transfer rate of SMBus is only 100Kbit/s, it allows one host to communicate with CPU and many masters and slaves to send/receive message.

  • Page 82: Usb (Universal Serial Bus)

    USB is a 4-pin serial peripheral bus that is capable of cascading low/medium speed peripherals (less than 10Mbit/s) such as keyboard, mouse, joystick, scanner, printer and modem. With USB, the traditional complex cables from back panel of your PC can be eliminated.

  • Page 83: Troubleshooting

    If you encounter any trouble to boot you system, follow the procedures accordingly to resolve the problem. Start Turn off the power and unplug the AC power cable, then remove all of the add-on cards and cables, including VGA, IDE, FDD, COM1, COM2 and Make sure if all jumper settings are correct.
  • Page 84 Continue Install the VGA card. Then connect your monitor and keyboard. Turn on the power and check if the power supply and CPU fan work properly. The problem is probably caused by power supply or motherboard failure. Next Please contact your reseller or local distributor for repairing.
  • Page 85 Continue Perhaps your VGA card Check if there is display? or monitor is defective. Press <Ctrl> and <Alt> key at the same time, hold them and then press <Del> to reboot the system. It is very possible that your Check if the system keyboard is defective.
  • Page 86 Continue During system rebooting, press <Del> to enter BIOS setup. Choose “Load Setup Default”. Turn off the system and re-connect IDE cable. The problem should be Check if the system can caused reboot successfully? cable or HDD itself. Re-install the operating system such as Windows 98.
  • Page 87 Dear Customer, Thanks for choosing AOpen products. To provide the best and fastest service to our customer is our first priority. However, we receive numerous emails and phone-calls worldwide everyday, it is very hard for us to serve everyone on time. We recommend you follow the procedures below and seek help before contact us.
  • Page 88 5 5 5 5 News Group: Your problem probably had been answered by our support engineer or professional users on the news group. http://www.aopen.com.tw/tech/newsgrp/default.htm 6 6 6 6 6 6 6 6 Contact Distributors/Resellers: We sell our products through resellers and integrators. They should know your system configuration very well and should be able to solve your problem more efficiently than us.
  • Page 89 Model name and BIOS version can be found on upper left corner of first boot screen (POST screen). For example: AK76D R1.00 June.01.2001 AOpen Inc. Award Plug and Play BIOS Extension v1.0A Copyright © 1998, Award Software, Inc. AK76D Plus is model name of motherboard, R1.00 is BIOS version.
  • Page 90 Be able to join the discussions of web-based news groups. AOpen makes sure that the information you provide is encrypted, so that it cannot be read or intercepted by other people or companies. Further, AOpen will not disclose any of information you submitted under any conditions. Please consult our...
  • Page 91 Pacific Rim Europe America AOpen Inc. AOpen Computer b.v. AOpen America Inc. Tel: 886-2-2696-1333 Tel: 31-73-645-9516 Tel: 1-510-498-8928 Fax: 886-2-8691-2233 Fax: 31-73-645-9604 Fax: 1-408-922-2935, 1-408-432-0496 China Germany 艾尔鹏国际上海(股)有限公司 AOpen Computer GmbH. Tel: 49-2102-157700 Tel: 49-2102-157700 Fax: 49-2102-157799 Fax: 49-2102-157799 Web Site: www.aopen.com...
