AOpen AK77-600N Easy Installation Manual

AOpen AK77-600N Easy Installation Manual

Motherboard
Hide thumbs Also See for AK77-600N:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

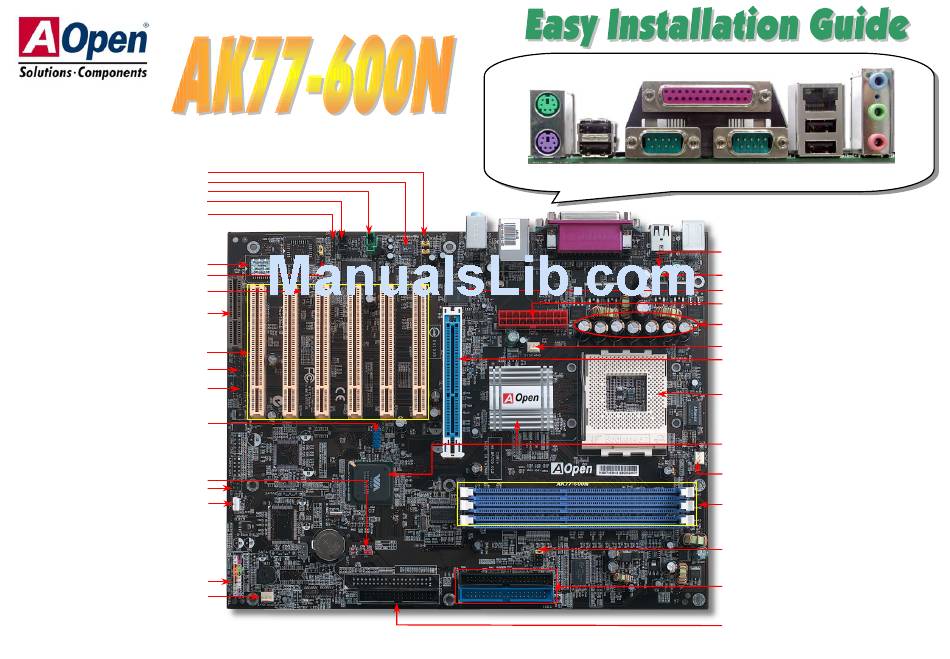

Front Audio Connector
Onboard AC97 CODEC
AUX-IN Connector
CD-IN Connector
S/PDIF Connector
Phoenix Award 2Mbit Flash ROM BIOS
Case Open Connector
Game Port Connector
CNR Expansion Slot
32-bit PCI Expansion Slot x6
IrDA Connector
WOM (Wake ON Modem) Connector
USB2.0 Connector
JP14 CMOS Data Clear Jumper
Dr. LED Connector (User Upgrade Optional)
WOL (Wake ON LAN) Connector
Front Panel Connector
SYSFAN2 Connector
AOpen reserves the right to revise all the specifications and information contained in this documentation, which are subject to change without notice.
SPP/EPP/ECP
PS/2 Mouse
Parallel Port
Connector
PS/2 Keyboard
USB2.0 Ports
COM 1 Port
Connector
RJ45 LAN Jack
Line-In
Speaker
Out
MIC-In
USB2.0 Ports
COM 2 Port
Resetable Fuse
JP28 Keyboard/Mouse Wakeup Jumper
RealTek RTL8100BL
ATX Power Connector
2200μF Low ESR Capacitors
SYSFAN3 Connector
AGP 8X Expansion Slot
462-pin CPU Socket with Voltage and
Frequency Auto-Detection that supports
TM
TM
TM
TM
AMD
Athlon
/ Duron
/ and Athlon
XP
(with CPU Overheat Protection circuit to
TM
Athlon
XP CPU only)
®
VIA
Apollo KT600 Chipset and VT8235-CD SB
CPUFAN1 Connector
184-pin DIMMx3 supports DDR400 max. to
2GB and DDR333/266 max. to 3GB
JP20 K7 Host Clock Select Jumper
IDE Connector x2 (ATA/66/100/133 supported)
FDD Connector
