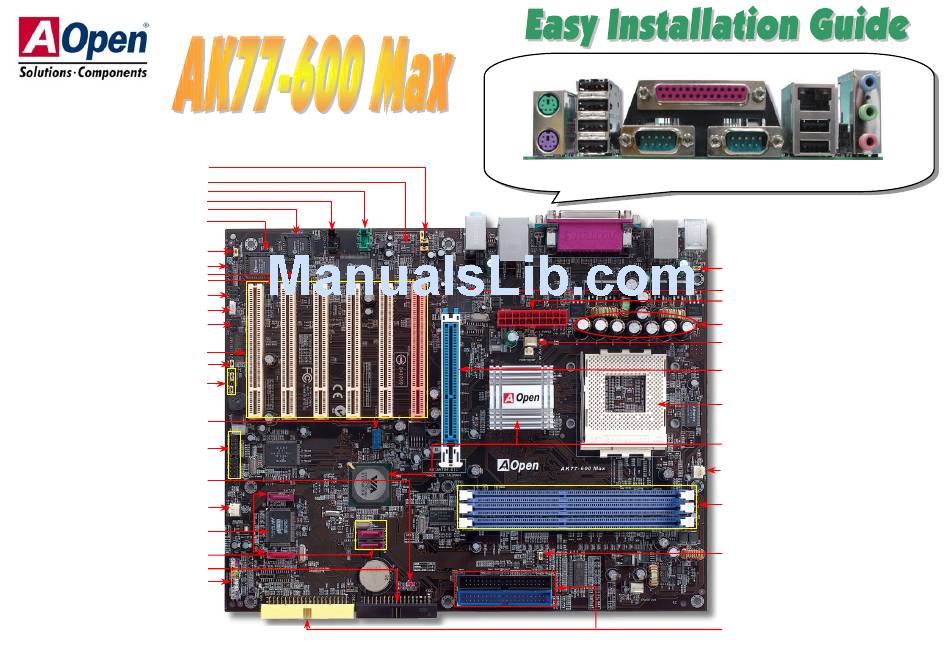

Front Audio Connector
Onboard AC97 CODEC
AUX-IN Connector
CD-IN Connector
Die Hard BIOS (BIOS 2)
Die Hard BIOS (BIOS 1)
JP24 Die Hard BIOS Select Jumper
S/PDIF Connector
GamePort Connector
Case Open Connector
IrDA Connector
WOL (Wake ON LAN) Connector
Dr. LED Connector
32-bit PCI Expansion Slot x6
(PCI 1 supports slave mode PCI card only)
JP2 Dr. Voice II Speaker/buzzer
Output Jumper
JP15 & JP16 Dr. Voice II Language
Selection Jumper
USB2.0 Connector
IEEE 1394 Connectors
JP14 CMOS Data Clear Jumper
SYSFAN2 Connector
Promise SATA Controller and Connectors
SATA Connectors (provided by VIA VT8237)
FDD Connector
Front Panel Connector
AOpen reserves the right to revise all the specifications and information contained in this documentation, which are subject to change without notice.
SPP/EPP/ECP
PS/2 Mouse
Parallel Port
Connector
PS/2 Keyboard
USB2.0 Ports
COM 1 Port
Connector
RJ45 LAN Jack
Line-In
Speaker
Out
MIC-In
USB2.0 Ports
COM 2 Port
JP28 Keyboard/Mouse Wakeup Jumper
BroadCom BCM5705 LAN Controller
ATX Power Connector
2200μF Low ESR Capacitors
SYSFAN1 Connector
AGP 8x Expansion Slot
462-pin CPU Socket with Voltage and
Frequency Auto-Detection that supports
TM
TM
TM
TM
AMD
Athlon
/ Duron
/ and Athlon
XP
(with CPU Overheat Protection circuit to
TM
Athlon
XP CPU only)
®
VIA
Apollo KT600 Chipset and VT8237
SouthBridge
CPUFAN Connector
184-pin DIMMx3 supports DDR400 max.
to 2GB and DDR333/266 max. to 3GB
JP21 K7 Host Clock Select Jumper
IDE Connector x3 (ATA/66/100/133 supported)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AK77-600 Max and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AOpen AK77-600 Max

  • Page 1 JP21 K7 Host Clock Select Jumper SATA Connectors (provided by VIA VT8237) FDD Connector Front Panel Connector IDE Connector x3 (ATA/66/100/133 supported) AOpen reserves the right to revise all the specifications and information contained in this documentation, which are subject to change without notice.
  • Page 2: Jp14 Clear Cmos

    1. JP14 Clear CMOS You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below. 1. Turn off the system and unplug the AC power. Everything you need to boot this 2. Remove ATX power cable from connector PWR2. motherboard is included in this Easy Installation Guide.
  • Page 3: Jp21 K7 Host Clock Selection

    Tip: If your system hangs or fails to boot because of overclocking, simply use <Home> JP21 K7 Host Clock key to restore the default setting or you can wait the AOpen “Watch Dog ABS” reset the system in five seconds and system will auto-detect hardware again.
  • Page 4: Connecting Front Panel Cable

    6. Connecting IrDA Connector 8. Connecting IDE, Floppy Cables The IrDA connector can be configured to support wireless infrared module, with this module Connect 34-pin floppy cable and 40-pin IDE cable to floppy connector FDD connector. Be and application software such as Laplink or Windows 98 Direct Cable Connection, the user careful of the pin1 orientation.
  • Page 5: Front Audio Connector

    12. S/PDIF Connector 10. Front Audio Connector S/PDIF (Sony/Philips Digital Interface) is a newest audio transfer file format, which provides If the housing has been designed with an audio port on the front panel, you’ll be able to impressive audio quality through optical fiber and allows you to enjoy digital audio instead of connect onboard audio to front panel through this connector.
  • Page 6: Bios Upgrade Under Windows Environment

    BIOS Setup, press <Del> during POST (Power On Self Test). upgrading. Choose "Load Setup Defaults" for recommended optimal performance. Download the new version of BIOS package zip file from AOpen official web site. (ex: http://english.aopen.com.tw/) Unzip the download BIOS package (ex: WAK77600MAX102.ZIP) with WinZip (http://www.winzip.com) in Windows environment.
  • Page 7: Part Number And Serial Number

    IDE cable. The problem should be caused by the Check if the system can IDE cables or HDD itself. reboot successfully. Re-install Windows 95, Windows 98 or Windows NT. AK77-600 Max is model name of motherboard; R1.02 is BIOS version...
  • Page 8 Online Manual: To download manual, please log on and then select your preferred language. Under “Type” directory, choose “Manuals” to go to our manual database. You can also find the manual and EIG in AOpen Bonus Pack. http://download.aopen.com.tw/downloads Dear Customer, Thanks for choosing AOpen products.
