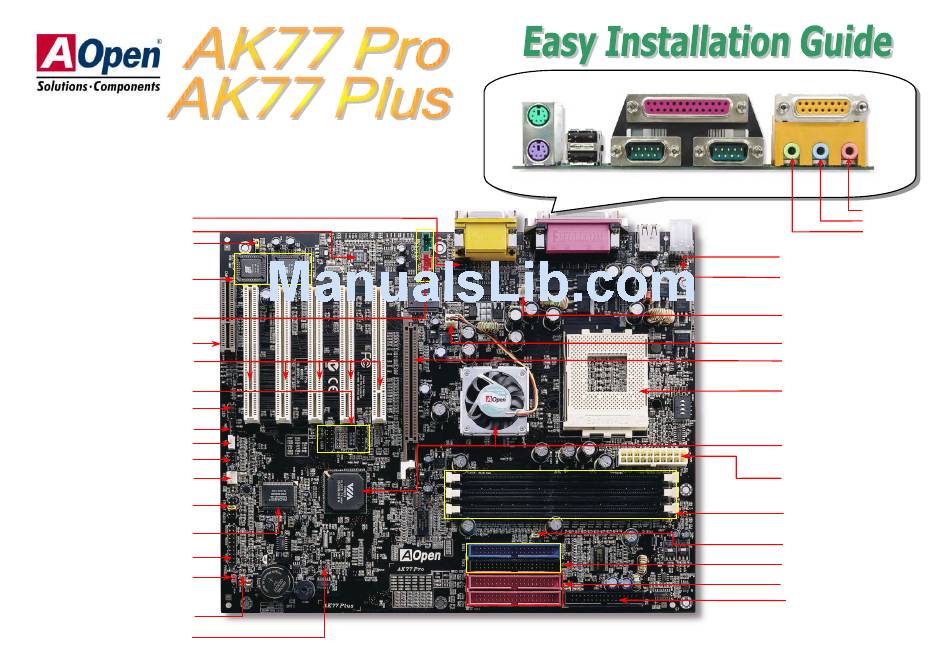

CD-IN Connector
Onboard AC97 CODEC
JP30 Die Hard BIOS Select Jumper
Die Hard BIOS with 100% Virus
Protection (Upgrade Optional)
Green: AUX-IN Connector
Red: Modem-IN Connector
CNR Expansion Slot
32-bit PCI Expansion Slot x5
(PCI 5 supports slave mode PCI card only)
nd
rd
2
& 3
USB Port Connector
Dr. LED Connector
(Upgrade Optional)
WOM (Wake ON Modem) Connector
WOL (Wake ON LAN) Connector
IrDA Connector
Chassis Fan Connector with
H/W Monitoring
Front Audio Connector
®
PROMISE
FastTrak 100™ Lite
IDE RAID Controller (AK77 Plus only)
Front Panel Connector
JP14 CMOS Data Clear Jumper
System & RAM Power Indicate LED
Chassis Intrusion Sensor Connector
SPP/EPP/ECP
PS/2 Mouse
Parallel Port
Connector
USB Port
PS/2 Keyboard
COM 1 Port
Connector
Game Port
COM 2 Port
MIC-In
Line-In
Speaker Out
Resettable Fuse
Keyboard Wake-up Select
Jumper
CPU Fan Connector with
H/W Monitoring
AUX Fan Connector
AGP 4x Expansion Slot
462-pin CPU Socket with Voltage
and Frequency Auto-Detection that
®
®
supports AMD
Athlon
and Duron
600MHz~1.4GHz+ CPU
®
VIA
Apollo KT266 Chipset with
Fansink
ATX Power Connector
184-pin DDR SDRAM Slot x3
support maximum up to 3GB
JP21 FSB Select Jumper
ATA/33/66/100 IDE Connector x2
ATA/100 IDE RAID Connector x2
(AK77 Plus only)
FDD Connector
®
Advertisement
Table of Contents
Related Manuals for AOpen AK77 Pro
Summary of Contents for AOpen AK77 Pro
- Page 1 SPP/EPP/ECP PS/2 Mouse Parallel Port Game Port Connector USB Port PS/2 Keyboard COM 1 Port COM 2 Port Connector MIC-In CD-IN Connector Line-In Onboard AC97 CODEC Speaker Out JP30 Die Hard BIOS Select Jumper Resettable Fuse Die Hard BIOS with 100% Virus Keyboard Wake-up Select Protection (Upgrade Optional) Jumper...
-
Page 2: Jp14 Clear Cmos
1. JP14 Clear CMOS You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below. 1. Turn off the system and unplug the AC power. 2. Remove ATX power cable from connector PWR2. Everything you need to boot this motherboard is included in this 3. -
Page 3: Installing Cpu
Tip: If your system hangs or fails to boot because of fan monitoring. Sensor overclocking, simply use <Home> key to restore the default setting (433MHz) or you can wait the AOpen “Watch Dog Timer” reset the system in five seconds and system will auto-detect hardware again. -
Page 4: Jp21 Fsb/Pci Clock Ratio
DDR SDRAM can be composed of an arbitrary mixture of 1M/2M/4M/8M/16M/32M/64MxN DDR SDRAM with maximum up to 3GB. ACPI & PWR IDE LED Warning: The AK77 Plus / AK77 Pro support DDR SDRAM; please do not Speaker Reset install the SDRAM module on the DDR SDRAM sockets. -
Page 5: Front Audio
11. Connecting CD / AUX / MODEM 9. Connecting ATX Power Connector CD-IN (Black) The CD-IN connector is used to connect CD Audio The ATX power supply uses 20-pin connector shown below. Make sure you plug in the AUX-IN (Green) cable from CDROM or DVD drive to onboard sound. -
Page 6: Bios Upgrade
14. AOpen Bonus Pack CD 16. BIOS Upgrade AOpen Easy Flash is more user-friendly than traditional flash method. The BIOS binary You can use the autorun menu of Bonus CD disc. Choose the utility and driver and select file and flash routine are combined together and you simply run a single file to complete model name. -
Page 7: Part Number And Serial Number
It is very possible that your keyboard press Del to see if the is defective. system reboots. AK77 Plus R1.00 Feb. 01. 2001 AOpen Inc. Award Plug and Play BIOS Extension v1.0A During system rebooting, press Del to enter BIOS Setup. Choose “Load Setup Default". - Page 8 Dear Customer, Test Report: We recommend to choose board/card/device from the Thanks for choosing AOpen products. To provide the best and fastest service to compatibility test reports for assembling your PC. our customer is our first priority. However, we receive numerous emails and http://www.aopen.com.tw/tech/report/default.htm...
