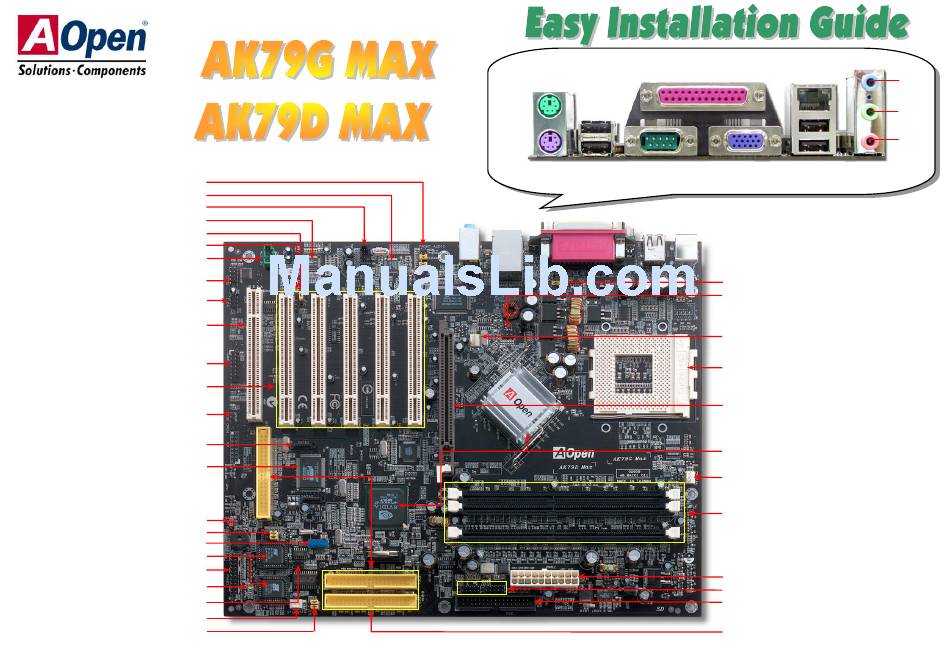

AOpen AK79G MAX Easy Installation Manual

Front Audio Connector
Realtek LAN Controller
CD-IN Connector
Onboard AC'97 CODEC
JP2 Speaker output Jumper
S/PDIF Connector
AUX-IN Connector
COM2 Connector
IrDA Connector
ACR Expansion Slot
Game Port Connector
32-bit PCI Expansion Slot x5
Case Open Connector
Serial ATA Connector
Supports 150 Mb/s Transfer Rate
Promise Serial ATA Controller
JP14 CMOS Data Clear Jumper
JP30/JP31 BIOS Rescue Jumper
USB 2.0 Connector
Die-hard BIOS II
Front Panel Connector
AGP Protection LED
Dr LED Connector
SYSFAN3 Connector
JP15/JP16 Dr. Voice II
Language Selection Jumper
AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without notice.
PS. Here we use AK79G MAX motherboard as illustration.
PS/2 Mouse SPP/EPP/ECP Parallel Port
Connector
USB 2.0
Ports
PS/2 Keyboard
COM 1 Port
Connector
RJ45 10/100 LAN Jack
VGA Port
USB 2.0 Ports
(AK79G Max only)
JP28 PS2 KB/Mouse Wakeup Jumper
TV Output Connector
SYSFAN2 Connector
TM
462-pin CPU Socket Supports AMD
TM TM
Duron / and Athlon XP ( with CPU Overheat
TM
Protection circuit to Athlon XP CPU only)
AGP 8x Expansion Slot
supports 8X AGP card(2.1GB/s)
nForce2-GT Chipsets that support 333MHz FSB,
DDR 400 and AGP 8X,Integrated 1394 controller
and nVidia GeForce4 MX Graphics(AK79G MAX
only).
CPUFAN Connector
184-pin DIMMx3 supports 128bit dual channel
DDR400/333/266 Max. to 3GB
(When enabling VGA onboard, memory can run
max. up to 333MHz)
ATX Power Connector
IEEE1394 Connectors x 2
FDD Connector
IDE Connectors x3
(ATA/66/100/133 supported)
Line-In
Speaker
Out
MIC-In
TM
Athlon /
