Configuration Of Hid Vertx Boards - Altronix Trove T1RV3F4 Installation Manual

1. Fasten spacers onto metal pems configuration (A) of backplane depending on the access controller
(Fig. 5, pg. 5).
2. Position access controller module over corresponding spacers and fasten screws into spacers (Fig. 5a, pg. 5).
3. Fasten TV1R backplane to Trove1R rack enclosure utilizing hardware (provided).
Access Controller Position Chart for the Following Models:
®
HID VertX Board
V100, V200, V300, V1000, V2000

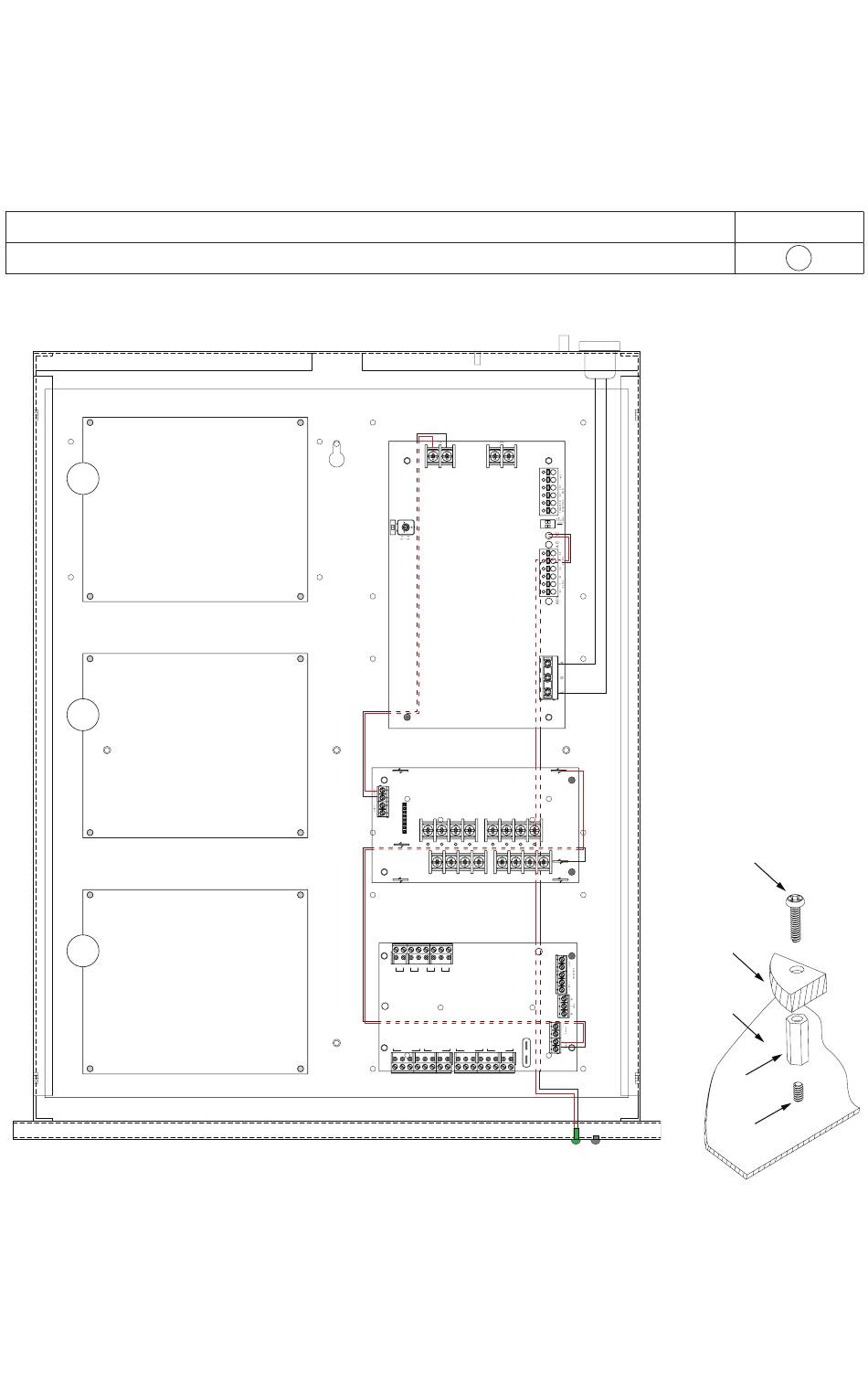

Fig. 5
A
A
A
T1RV3F4 Installation Guide
T1RV3F4:
Configuration of HID VertX
ON
PWR1+
Altronix PDS8/VR6
P
COM(-)
N
PWR1+
IN GND IN GND IN GND
1 2
NC C NO COM NC
OUTPUT 1
®
Boards
To IEC connector
Altronix
eFlow6NB
PWR1+
P
OUT1
OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8
N
COM(-)
1 2 3 4 5 6 7 8 PWR2+
Common Power Outputs (NEG)
VR6 is mounted
under PDS8
RoHS
TRIGGER
INPUT TRG
IN GND
3 4
Altronix ACM4
MAIN
C NO COM NC C NO COM NC C NO COM
OUTPUT 2 OUTPUT 3 OUTPUT 4
ACM4
ACCESS POWER
CONTROLLER
To LED lense
Pem Mounting
A
Fig. 5a
Pan Head Screw
HID VertX
®
Board
Backplane
Spacer
Pem
- 5 -
