Rack Assembly

1

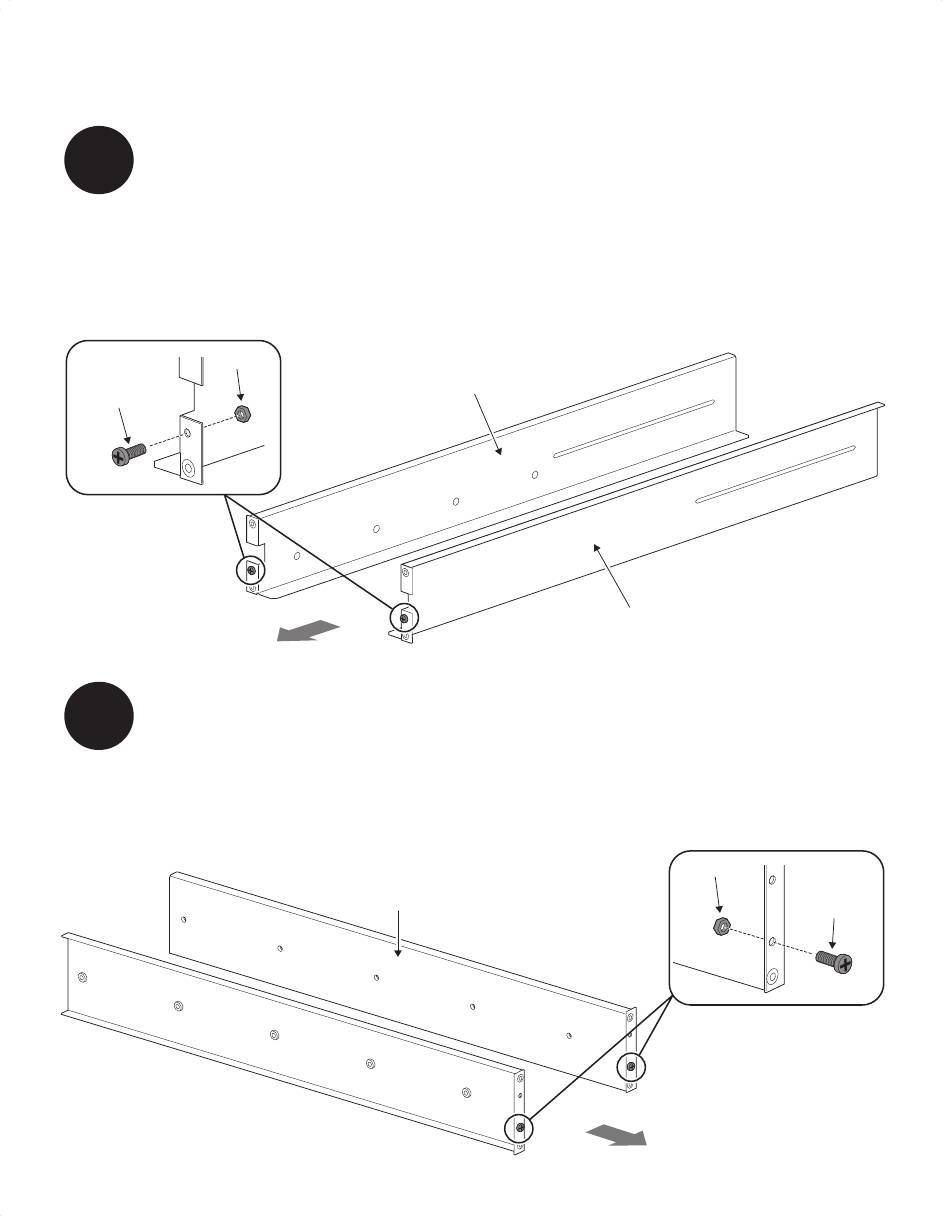

Attach M4 rack screws to the front rails
Your rack may have standard 7.1 mm or .375" openings. M4 screws are provided for both hole dimensions.
Insert an M4 screw for 7.1 mm or .375" in the indicated hole on the left front rail and fasten it with an M4 nut.
Repeat the process for the right front rail.
C M4 nut
A or B
M4 screw for 7.1 mm
or .375" hole
2
Attach M4 rack screws to the back rails
Insert M4 screws in the indicated holes on the back rails and fasten them with M4 nuts.
4
Front rail left
F R O N
T
Back rails
Front rail right
C M4 nut
K
B A C
A or B
M4 screw for
7.1 mm or
.375" hole
