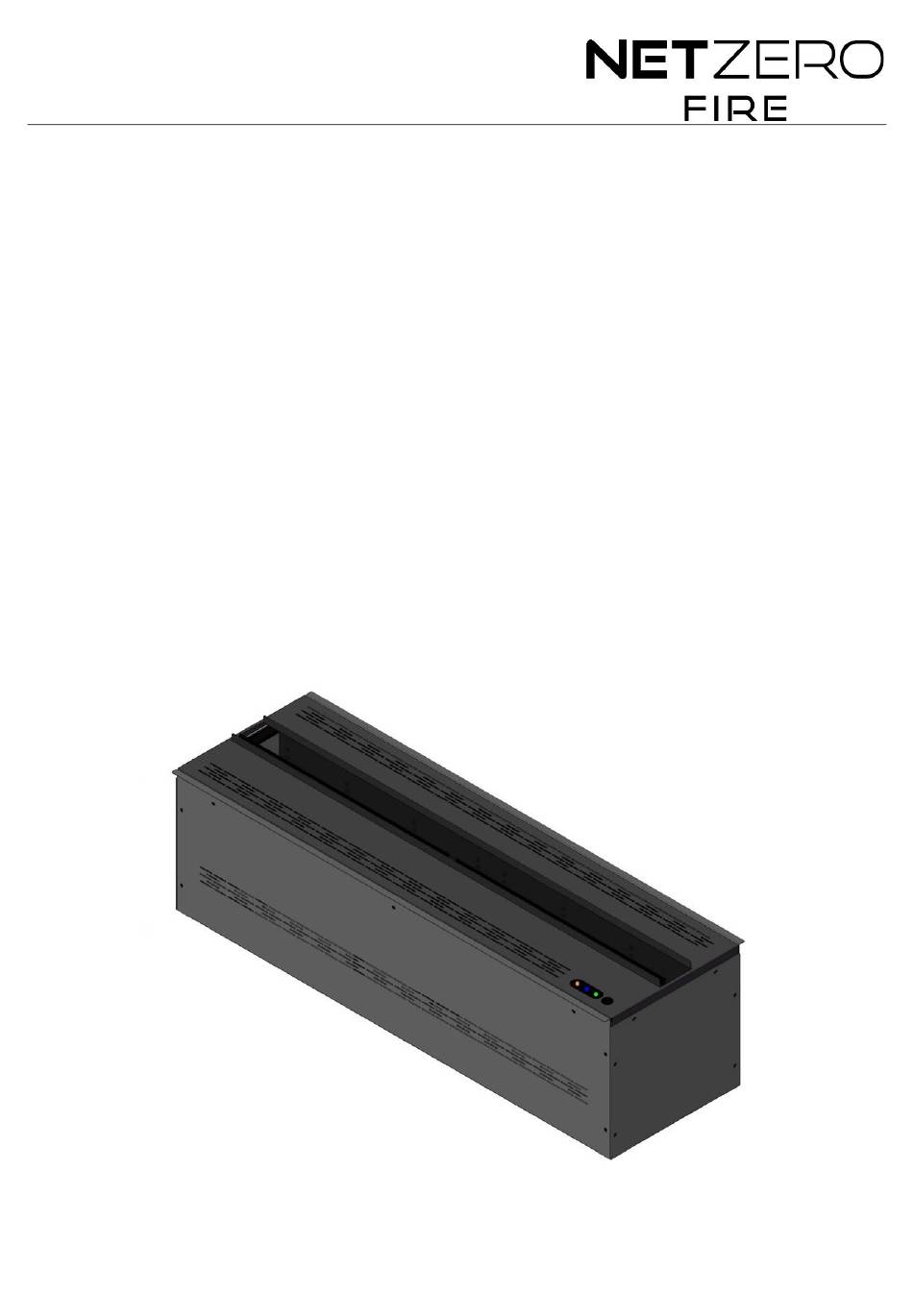

• INSTALLATION MANUAL
Not applicable when installing in a NetZero firebox.
• OPERATION AND MAINTENANCE MANUAL
Please read these instructions completely before
installing or operating the NetZero Waterplace Burner
NetZero Waterplace and Waterplace Platinum
Models: AA-11-05157 – NZW20B
AA-11-05160 – NZWP20B
AA-11-05158 – NZW40B
AA-11-05161 – NZWP40B
AA-11-05159 – NZW60B
AA-11-05162 – NZWP60B
Burner Series
1
Advertisement
Table of Contents
Related Manuals for NetZero Burner Series
Summary of Contents for NetZero Burner Series
- Page 1 • INSTALLATION MANUAL Not applicable when installing in a NetZero firebox. • OPERATION AND MAINTENANCE MANUAL Please read these instructions completely before installing or operating the NetZero Waterplace Burner NetZero Waterplace and Waterplace Platinum Burner Series Models: AA-11-05157 – NZW20B AA-11-05160 –...
- Page 2 Ventilation vents in the room must not be obstructed and/or ventilation systems in the home must not be hindered. If the power cable to your device is damaged, it must be replaced by a professional or by NetZero Fire to prevent any danger.
- Page 3 2 QUICK INSTALLATION GUIDE 2.1 How to install your Waterplace into its housing 1.Remove the top plate. 2. Connect 24V adapter to the power (The connector is located on the back side of the Waterplace). 3. Install the device into its housing. 4.
-
Page 4: Technical Characteristics
3 TECHNICAL CHARACTERISTICS Models A Length B Width C Height NZW20B 20 in 13 in 8-3/4 in NZWP20B 20 in 13 in 11-3/8 in NZW40B 40 in 13 in 8-3/4 in NZWP40B 40 in 13 in 11-3/8 in NZW60B 60 in 13 in 8-3/4 in NZWP60B... - Page 5 4 PRECAUTIONS FOR INSTALLING THE DEVICE IN ITS ENVIRONMENT Do not place any object not supplied by NetZero on the device while operating. Leave access to the control panel unobstructed. Do not use in a room with air currents. 5 ELECTRIC CONNECTION TO YOUR DEVICE An electrical outlet must be installed within the enclosure.
-
Page 6: Installation Diagrams
6 INSTALLATION DIAGRAMS NetZero Fire Waterplace devices are designed to take in air from either vents in the top of the unit, or vents. If the top vents are obstructed with any decorative media, you must allow free air into the surround from below. - Page 7 It is recommended to choose enclosure dimensions that fall along the diagonal line on the chart. NetZero Fire Waterplace devices are meant to be installed without needing any ventilation in the housing for the device when the vents in the top of the unit are unobstructed.
- Page 8 7 INSTRUCTIONS FOR USE 7.1 Description of the Control Strip The ON/OFF button turns the device on and off. Button B1 is used to fill the reservoir with water. Button B2 is used to empty the device. Hold the button for 5 seconds to start the pumps. Press once to stop the pumps.
- Page 9 If you are not using the waterplace for more than a week empty the tanks to prevent buildup. 7.4 Using the Device NetZero Fire Waterplace devices have multiple control possibilities. 1- Manual (On/Off button) 2- Via remote control The remote control is paired with your device in the factory.
- Page 10 Color change: SMOOTH: 15 color circulation, 5 seconds for each color. FADE1: 15 color circulation, fading to next color in 5 seconds. FADE2: 15 color circulation, fading to next color in 10 seconds. 3 - With a smartphone app (certain ranges only) A) Install the app onto your smartphone If you use Android, search for the AFIRE app on Google-Play.
- Page 11 You must use upper-and lower-case letters and numbers. Tap “Sign up” The screen will show “Device” E) Detect your device 1- Tap + (at the top right) and then tap Wi-Fi config (enter the Wi-Fi password if applicable). Simultaneously press the On/Off button and button B1 of your fireplace module until they flash.
- Page 12 The screen will display the controls available for your device. 4- Enter your password for your Wi-Fi connection and tap “Start.” 5- Next, simply tap the AFIRE icon on your smartphone to get to the app function screen. Of course, your Wi-Fi will need to be working.
-
Page 13: Device Maintenance
WARNING: All cleaning and maintenance operations must be done with the device switched off. Occasionally clean the visible parts with a soft cloth. Never interfere with the safety or electronic systems - Contact NetZero Fire dealer. Some components are required to ensure the safety and proper operation of the device. Their replacement may modify the performance of your device. - Page 14 •For assemblies that have signs of algae build up or visible hard water residue, remove the 4 screws that attach the mist maker to the rack so you can soak the mist maker submerged in white vinegar for 10- 20minutes and clean the bottom of it as well; remember to keep the power cords attached to the mist makers out of the vinegar solution.
- Page 15 9.1 Electrical Diagram The diagrams below show the electrical connections to the board for the Waterplace and Waterplace Platinum respectively. NetZero Waterplace NetZero Waterplace Platinum...
-
Page 16: Trouble Shoothing
Please provide proof of purchase (receipt) and serial number. The warranty is limited to the device only. NetZero is a distributor of these products, which are designed and manufactured by aFire World Ltd. THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF AND SUPPLIED MANUALS.
