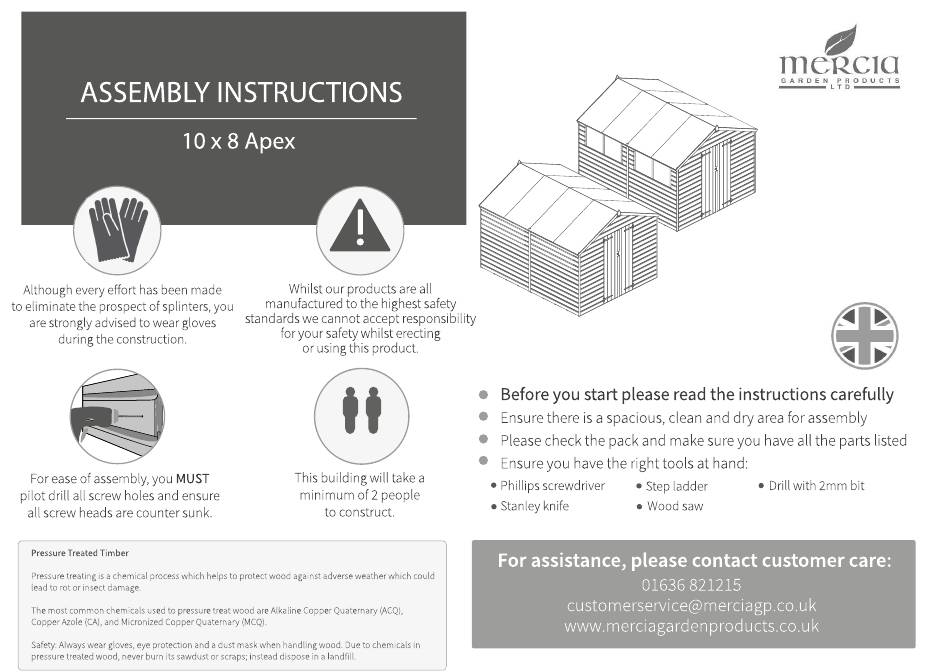

- Page 1 01PTOSBA1008DDFW-V1 & 01PTOSBA1008DDNW-V 01PTOSBA1008DDFW-V1 01PTOSBA1008DDNW-V1...
- Page 2 01PTOSBA1008DDFW-V1 & 01PTOSBA1008DDNW-V1 Please retain product label and instructions for future reference Overall Dimensions: 01PTOSBA1008DDFW-V1 Nail Bag Felt Tacks x 120 40mm Screw x 136 30mm Screw x 130 Base Dimensions: 50mm Screw x 80 30mm Black Screw x 3...
- Page 3 Step 1 Step 3 6x50mm Screws 12x40mm screws 50mm Pre drill screw hole 40mm Pre drill screw hole Step 2 Step 4 9x50mm Screws 3x50mm Screws 50mm Pre drill screw hole 50mm Pre drill screw hole P 11...
- Page 4 Step 5 Step 7 6x50mm Screws 50mm Pre drill screw hole 18x30mm Screws 30mm Pre drill screw hole Step 6 Step 8 4x40mm Screws 40mm Pre drill screw hole 2x50mm Screws 50mm Pre drill screw hole P 12...
- Page 5 Step 11 Step 9 20x40mm Screws 40mm Pre drill screw hole 20x40mm Screws 6x30mm Screws 50mm Pre drill screw hole 8x50mm Screws Step 10 4x40mm Screws 40mm Pre drill screw hole 8x50mm Screws 4x40mm Screws 20x40mm Screws 40mm Pre drill screw hole P 13...
- Page 6 Step 11 con... Step 12 20x40mm Screws 6x30mm Screws 24 x 50mm Screws 40mm Pre drill screw hole 50mm Pre drill screw hole 30mm Pre drill screw hole 12x30mm Screws 30mm Pre drill screw hole P 14...
- Page 7 Step 14 Step 13 18x40mm Screws 40mm Pre drill screw hole 132 x Tacks Step 15 16x40mm Screws 40mm Pre drill screw hole HANDLE WITH CARE P 15...
- Page 8 Step 16 30mm screw Pre drill 5x30mm Screws hole 30mm screw 1x30mm Black Screws Step 15 30mm screw 2x30mm Black Screws Pre drill hole 30mm 6x30mm Screws screw 8x30mm Screws P 16...
- Page 9 Step 17 30mm It is ESSENTIAL that you apply wood treat Pre drill screw ment immediately after the building has hole been assembled. 6x30mm Screws Styrene Window Cill Side View 30mm screw Pre drill hole 9x30mm Screws P 17...
