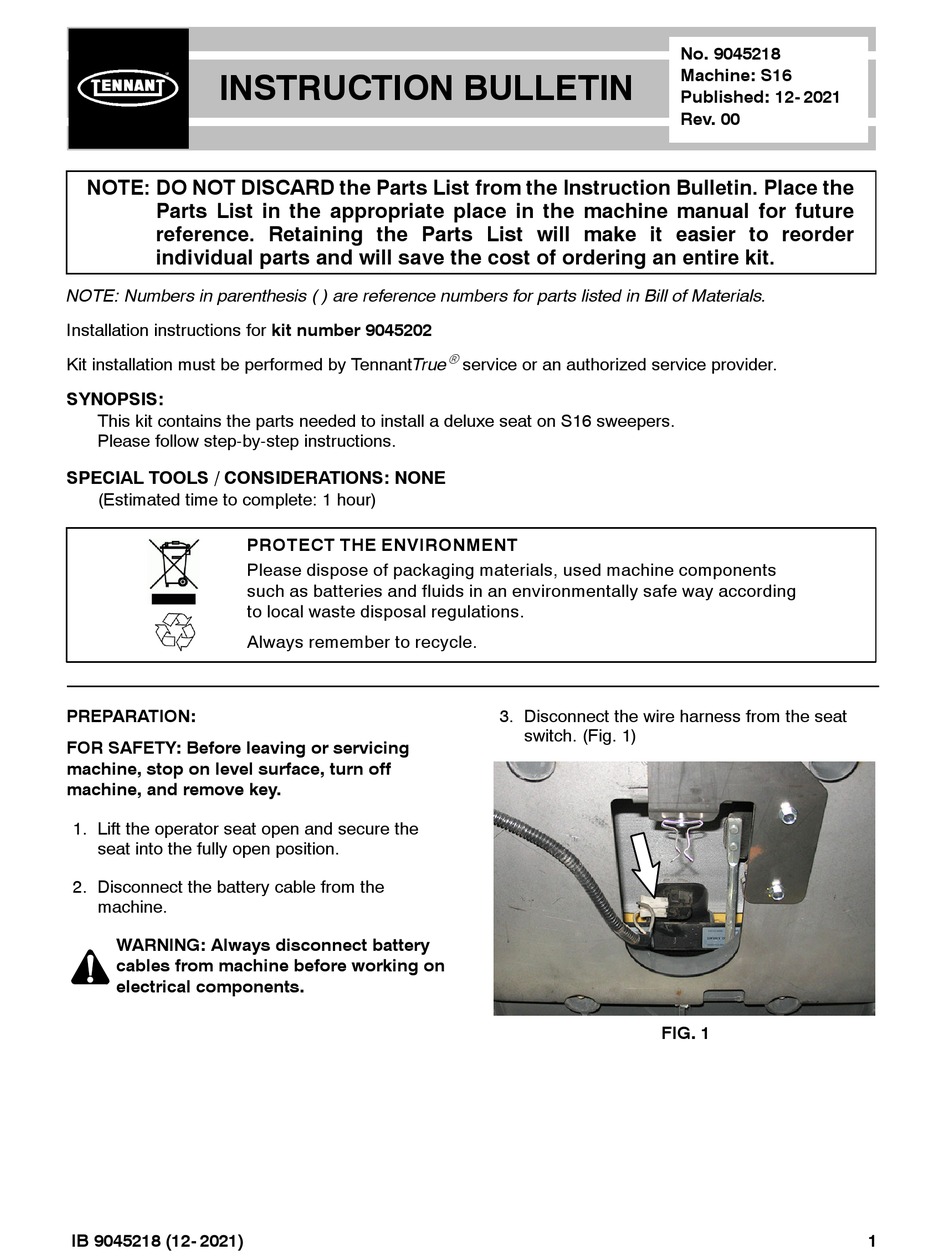

INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the
Parts List in the appropriate place in the machine manual for future
reference. Retaining the Parts List will make it easier to reorder
individual parts and will save the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.
Installation instructions for kit number 9045202
Kit installation must be performed by TennantTrue
SYNOPSIS:
This kit contains the parts needed to install a deluxe seat on S16 sweepers.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: NONE
(Estimated time to complete: 1 hour)
PREPARATION:
FOR SAFETY: Before leaving or servicing
machine, stop on level surface, turn off
machine, and remove key.
1. Lift the operator seat open and secure the
seat into the fully open position.
2. Disconnect the battery cable from the
machine.
WARNING: Always disconnect battery
cables from machine before working on
electrical components.
IB 9045218 (12- 2021)
PROTECT THE ENVIRONMENT
Please dispose of packaging materials, used machine components
such as batteries and fluids in an environmentally safe way according
to local waste disposal regulations.
Always remember to recycle.
service or an authorized service provider.
3. Disconnect the wire harness from the seat
switch. (Fig. 1)
No. 9045218
Machine: S16
Published: 12- 2021
Rev. 00
FIG. 1
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 9045218 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tennant 9045218

Summary of Contents for Tennant 9045218

  • Page 1 1. Lift the operator seat open and secure the seat into the fully open position. 2. Disconnect the battery cable from the machine. WARNING: Always disconnect battery cables from machine before working on electrical components. FIG. 1 IB 9045218 (12- 2021)

  • Page 2: Installation

    (25) to install the adjustable slide track (30) onto the operator seat (22). (Fig. 3) 3. Use two pan screws (26) and two spacers (25) to install the slide track (29) onto the operator seat (22). (Fig. 3) FIG. 2 FRONT FIG. 3 IB 9045218 (12- 2021)
  • Page 3 4. Use one ball stud (2) to install the gas spring (3) onto the seat channel. (Fig. 4) 5. Use another ball stud (2) and hex nut (27) to install the gas spring (3) onto the seat spring mounting bracket. (Fig. 4) IB 9045218 (12- 2021)
  • Page 4 (21), and one M6 hex nut to install 18.Connect the wire harness to the seat switch the seat latch handle (15) onto the latch (29). (Fig. 6) bracket (12). (Fig. 5) 19.Reconnect the battery cable to the machine. IB 9045218 (12- 2021)
  • Page 5 Upper operator platform Seat channel FRONT FIG. 6 IB 9045218 (12- 2021)
  • Page 6 Washer, Flat, 0.32b 1.00d .12, SS 1077067 Track, N- Lkg, Seat, 12.5l, No Stud 1077071 Track, Locking, 12.5l, No Stud w/Handle 76955 Screw, Hex, .31- 18 X 1.00, G5 TENNANT COMPANY 10400 Clean Street Eden Prairie, MN 55344- 2650 IB 9045218 (12- 2021)
