INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the
Parts List in the appropriate place in the machine manual for future
reference. Retaining the Parts List will make it easier to reorder
individual parts and will save the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.
Installation instructions for kit number 9045162
Kit installation must be performed by TennantTrue
SYNOPSIS:
This kit contains the parts needed to install the carpet care kit onto S16 sweepers.
Please follow step-by-step instructions.
SPECIAL TOOLS/CONSIDERATIONS: NONE
(Estimated time to complete: 1 hour)
PREPARATION:
FOR SAFETY: Before leaving or servicing
machine, stop on level surface, turn off
machine, and remove key.
1. Raise the sweeping main brush and turn off
the machine.
IB 9045139 (10- 2023)
PROTECT THE ENVIRONMENT
Please dispose of packaging materials, used machine components
such as batteries and fluids in an environmentally safe way according
to local waste disposal regulations.
Always remember to recycle.
service or an authorized service provider.
INSTALLATION:

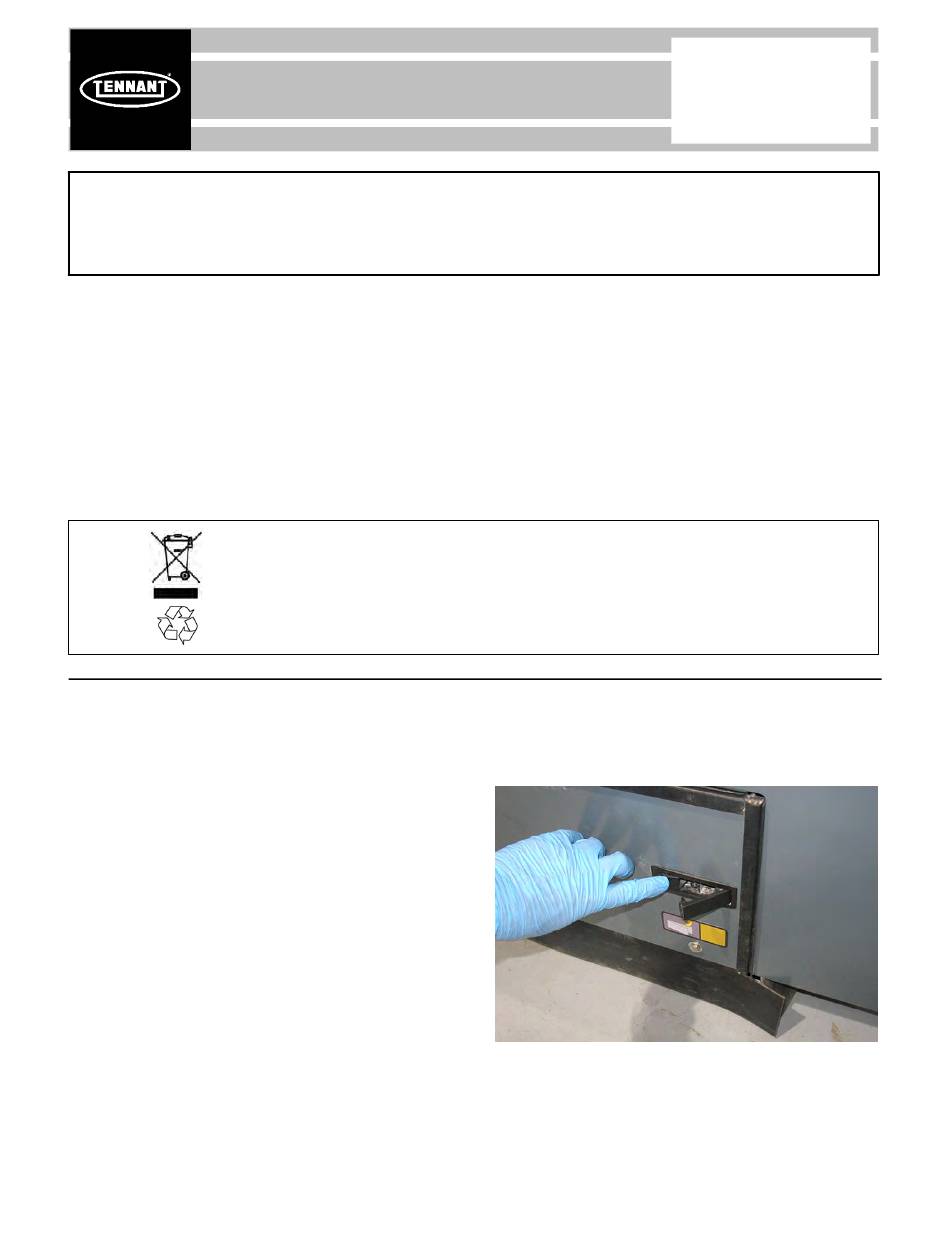

1. Release and open the main sweeping brush
compartment access door. (Fig. 1)
No. 9045139
Machine: S16
Published: 10- 2023
Rev. 00
FIG. 1
1
Advertisement
Related Manuals for Tennant S16
Summary of Contents for Tennant S16
- Page 1 Kit installation must be performed by TennantTrue service or an authorized service provider. SYNOPSIS: This kit contains the parts needed to install the carpet care kit onto S16 sweepers. Please follow step-by-step instructions. SPECIAL TOOLS/CONSIDERATIONS: NONE (Estimated time to complete: 1 hour)
- Page 2 2. Remove the knobs securing the idler arm 4. Pull the brush from the main sweep assembly to the main sweep assembly. Set compartment. Discard the removed main both knobs aside. (Fig. 2/Fig. 3) brush. (Fig. 5) FIG. 2 FIG. 5 5.
- Page 3 Right skirt Right skirt retainer retainer Hardware Remove and discard left sweep skirt. Replace with left carpet sweep skirt (2) Remove and discard right sweep skirt. Replace with right carpet sweep skirt (1) Sweep idler door Hardware FRONT Left skirt retainer Hardware FIG.
- Page 4 FRONT Light litter skirt FIG. 9 13.Cut the bulb seal (4) into the three appropriate 15.Loosen the hopper filter compartment retainer lengths to be installed onto the screen filter located on each side of the filter weldment (3). (Fig. 9) compartment.
- Page 5 Skirt, Swp, LH [Carpet] 1246587 Filter Wldt, Screen C410219 Seal, Bulb, Str, 0.50d .13grip, Bulk (4.0 ft. (1219 mm)) 1255809 Brush, Swp, 32.4L, 06DR, UMX, Spl TENNANT COMPANY 10400 Clean Street Eden Prairie, MN 55344- 2650 IB 9045139 (10- 2023)
