Summary of Contents for Tennant BR-1700-DC

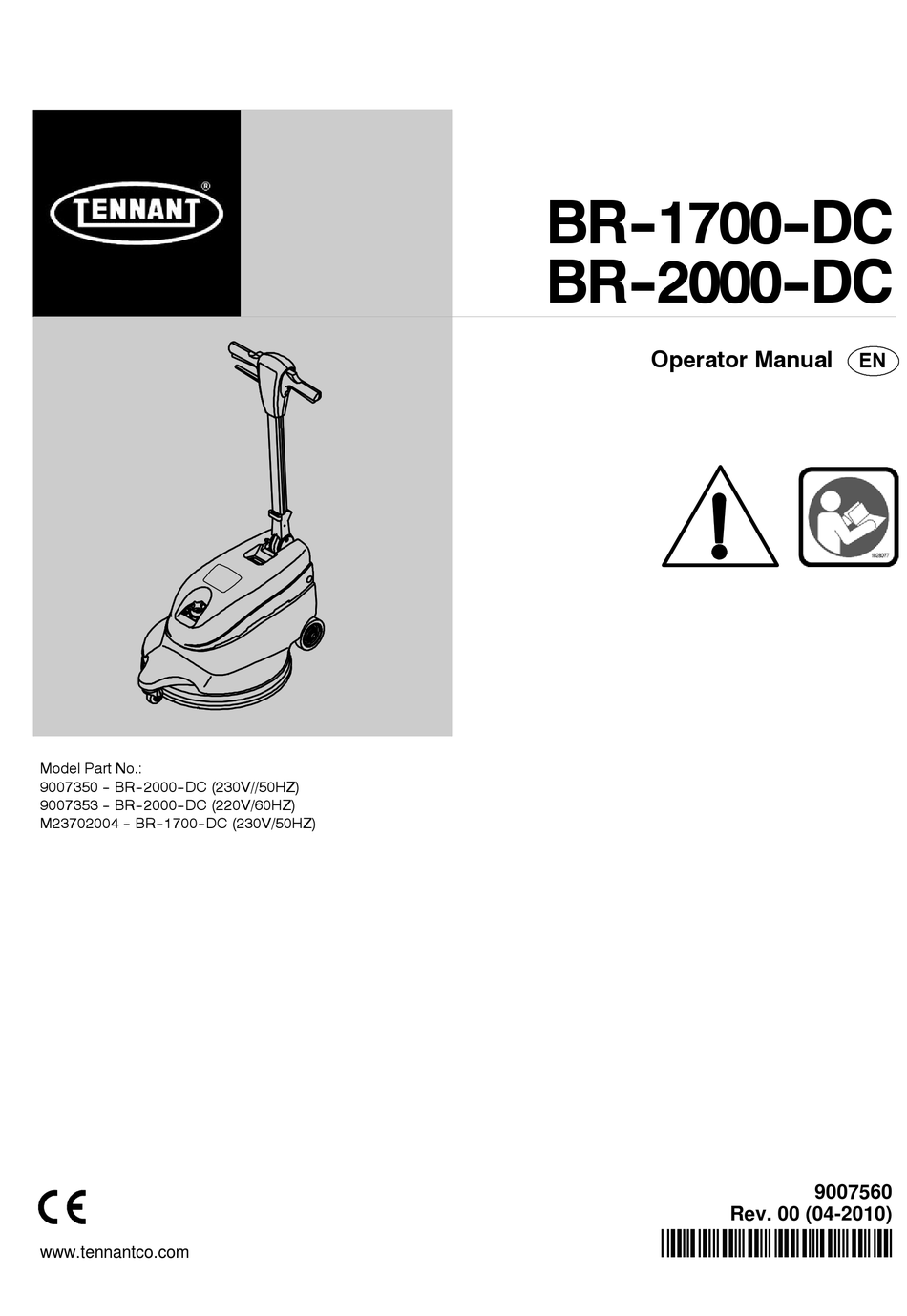

- Page 1 BR- -1700- -DC BR- -2000- -DC Operator Manual Model Part No.: 9007350 -- BR--2000--DC (230V//50HZ) 9007353 -- BR--2000--DC (220V/60HZ) M23702004 -- BR--1700--DC (230V/50HZ) 9007560 Rev. 00 (04-2010) *9007560* www.tennantco.com...
- Page 2 61000--3--2, EN 61000--3--3, EN 61000--6--2, EN 61000--6--3, EN 55014--1, EN ISO 11201, EN ISO 4871, EN ISO 5349--1, EN ISO 5349--2, EN 60335--2--67. -- the following (parts/clauses of) national technical standards and specifications have been used: NA Tennant BR- -1700- -DC / BR- -2000- -DC (04- -10)
-
Page 3: Table Of Contents
....OPERATING MACHINE ....Tennant BR- -1700- -DC / BR- -2000- -DC (04- -10) -
Page 4: Safety Precautions
With flammable liquids or near flammable vapors as an explosion or flash fire may occur. Unless trained and authorized. Unless operator manual is read and understood. Unless cord is properly grounded. Tennant BR- -1700- -DC / BR- -2000- -DC (04- -10) -
Page 5: Grounding Instructions
If the supply cord is damaged or broken, it must be replaced by the manufacturer or it’s service agent or a similarly qualified person in order to avoid a hazard. Tennant BR- -1700- -DC / BR- -2000- -DC (04- -10) -
Page 6: Machine Components
9. Pad Pressure Adjustment Knob 10. Pad Pressure Meter 11. Circuit Breaker Reset Button 12. Base FIG. 2 13. Dust Control Skirt 5. After installing the pad, stand the machine upright. Tennant BR- -1700- -DC / BR- -2000- -DC (04- -10) -
Page 7: Installing Dust Control Bag
FIG. 6 flash fire or explosion if machine is used in an area where flammable vapors/liquids or combustible dusts are present. Tennant BR- -1700- -DC / BR- -2000- -DC (04- -10) -
Page 8: Machine Maintenance
7. Do not operate the machine in the same spot for a long period of time. Floor damage may result. 8. To maneuver over thresholds and floor grates, stop the machine and tilt it back on the rear wheels. Tennant BR- -1700- -DC / BR- -2000- -DC (04- -10) -
Page 9: Adjusting Or Replacing Belt
To adjust or replace the belt, follow the instructions as 5. Retighten the motor mount screws and the jam nut described below: when properly adjusted. 6. Replace motor cover and pad driver. Tennant BR- -1700- -DC / BR- -2000- -DC (04- -10) -
Page 10: Storing Machine
FOR SAFETY: When transporting machine, get assistance when lifting machine. 3. Secure machine with tie--down straps when transporting by vehicle. WARNING: Do Not Use Outdoors. Do Not Expose to Rain. Store Indoors. Tennant BR- -1700- -DC / BR- -2000- -DC (04- -10) -
Page 11: Trouble Shooting
Contact Service Center. Pad does not spin or spins slowly. Loose belt. Tighten belt tension (See ADJUST- ING OR REPLACING BELT). Broken belt. Replace belt (See ADJUSTING OR REPLACING BELT). Tennant BR- -1700- -DC / BR- -2000- -DC (04- -10) -
Page 12: Specifications
POWER CORD LENGTH OPERATING VOLTAGE 230V 50Hz 220 60Hz, 230V 50Hz Specifications are subject to change without notice. MACHINE DIMENSIONS 1232 mm 483 mm 826 mm 572 mm 864 mm Tennant BR- -1700- -DC / BR- -2000- -DC (04- -10)
