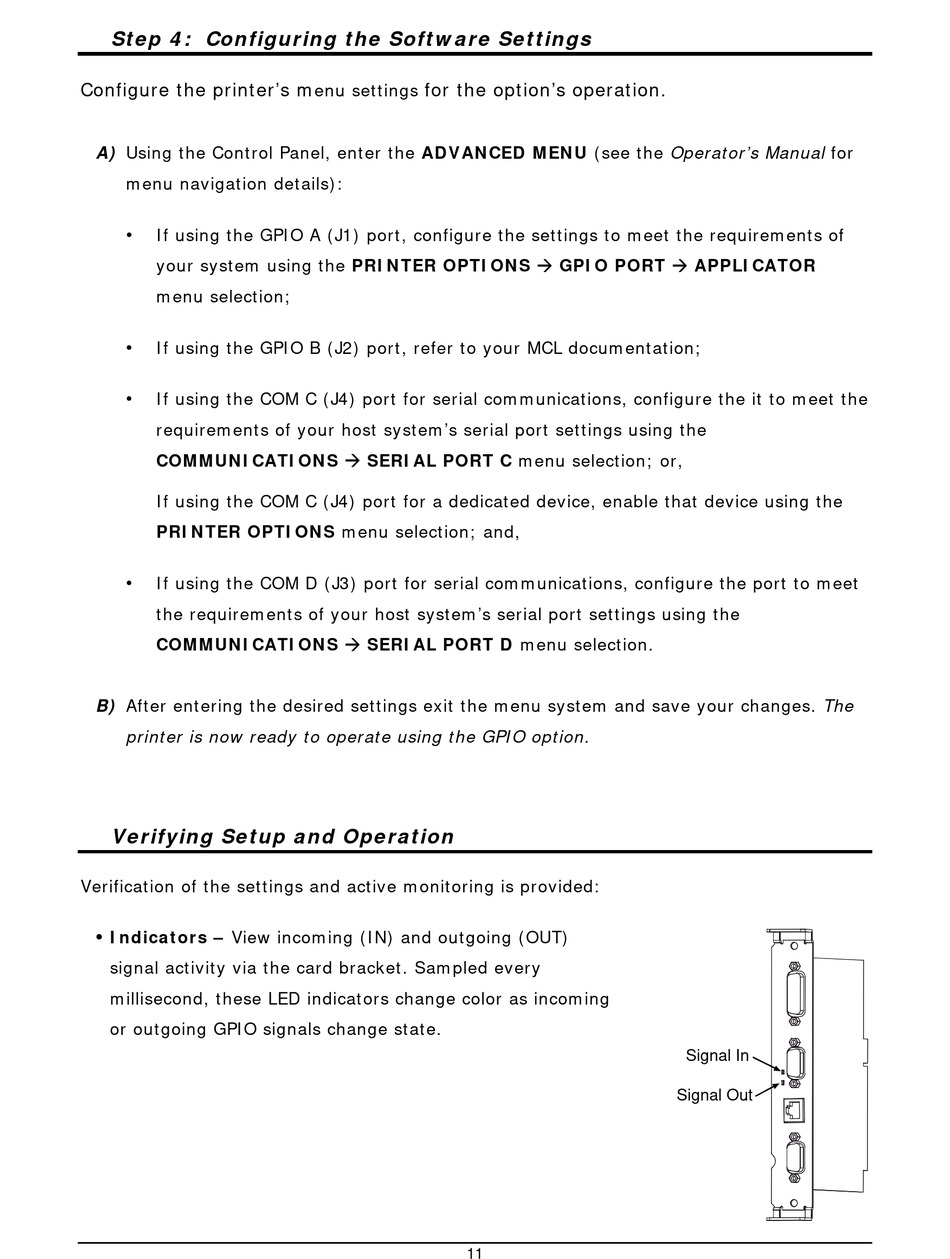

St e p 4 : Con figu r in g t h e Soft w a r e Se t t in gs
Configure t he print er's m
A) Using t he Cont rol Panel, ent er t he AD VAN CED M EN U ( see t he Operat or's Manual for
m enu navigat ion det ails) :
•
I f using t he GPI O A ( J1) port , configure t he set t ings t o m eet t he requirem ent s of
your syst em using t he PRI N TER OPTI ON S GPI O PORT APPLI CATOR
m enu select ion;
•
I f using t he GPI O B ( J2) port , refer t o your MCL docum ent at ion;
•
I f using t he COM C ( J4) port for serial com m unicat ions, configure t he it t o m eet t he
requirem ent s of your host syst em 's serial port set t ings using t he
COM M UN I CATI ON S SERI AL PORT C m enu select ion; or,
I f using t he COM C ( J4) port for a dedicat ed device, enable t hat device using t he
PRI N TER OPTI ON S m enu select ion; and,
•
I f using t he COM D ( J3) port for serial com m unicat ions, configure t he port t o m eet
t he requirem ent s of your host syst em 's serial port set t ings using t he
COM M UN I CATI ON S SERI AL PORT D m enu select ion.
B) Aft er ent ering t he desired set t ings exit t he m enu syst em and save your changes. The
print er is now ready t o operat e using t he GPI O opt ion.
Ve r ifyin g Se t u p a n d Ope r a t ion
Verificat ion of t he set t ings and act ive m onit oring is provided:
I n dica t or s – View incom ing ( I N) and out going ( OUT)
signal act ivit y via t he card bracket . Sam pled every
m illisecond, t hese LED indicat ors change color as incom ing
or out going GPI O signals change st at e.
for t he opt ion's operat ion.
enu set t ings
11
Signal In
Signal Out
