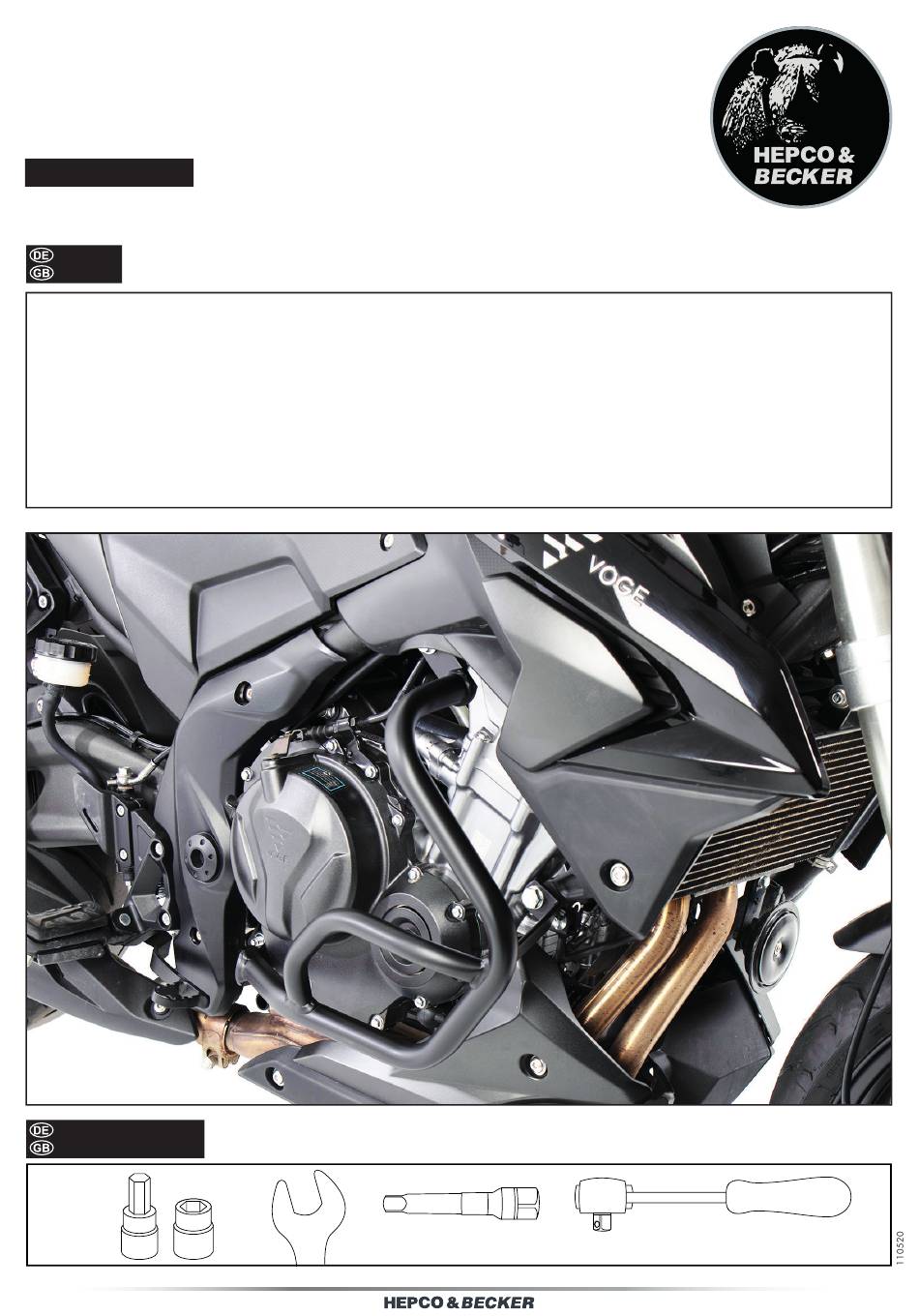

Motorschutzbügel/ Engine guard
Voge 500 R
Artikel Nr.: / Item-no.:
7609
501
00 01
schwarz/black
INHALT
CONTENT
1x 700010922 Motorschutzbügel links
1x 700010923 Motorschutzbügel rechts
1x 700010924 Schraubensatz:
2x Sechskantschraube M10x1,25x60
1x Zylinderschraube M10x200
4x U-Scheibe Ø10,5
1x Selbstsichernde Mutter M10
1x Aludistanz Ø25xØ11x20
2x Aludistanz Ø20xØ11x15
BENÖTIGTE WERKZEUGE
TOOLS REQUIRED
Set
Verlängerung/extension
1x 700010922 Engine guard left
1x 700010923 Engine guard right
1x 700010924 Screw kit:
2x Hexagon screw M10x1,25x60
1x Allen screw M10x200
4x Washer Ø10,5
1x Self lock nut M10
1x Alu spacer Ø25xØ11x20
2x Alu spacer Ø20xØ11x15
Ratsche/Ratchet
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for hepco & becker 5017609 00 01
Summary of Contents for hepco & becker 5017609 00 01
- Page 1 Motorschutzbügel/ Engine guard Voge 500 R Artikel Nr.: / Item-no.: 7609 00 01 schwarz/black INHALT CONTENT 1x 700010922 Motorschutzbügel links 1x 700010922 Engine guard left 1x 700010923 Motorschutzbügel rechts 1x 700010923 Engine guard right 1x 700010924 Schraubensatz: 1x 700010924 Screw kit: 2x Sechskantschraube M10x1,25x60 2x Hexagon screw M10x1,25x60 1x Zylinderschraube M10x200...
- Page 2 (3) on the left-hand side and release the gear lever including linkage and position it upwards. Now remove the sprocket cover (3). Remove the rear, front and top frame bolts. The upper one is reused, the remaining screws are obsolete. 5017609 00 01...
- Page 3 Fastening of the engine guard front left: On the free thread with the hexagon screw M10x1,25x60 and washer Ø10,5. Between the lug and the frame add the alu spacer Ø20xØ11x15. Insert the original spacer between frame and engine again. Fahrtrichtung/driving direction 5017609 00 01...
- Page 4 Ø25xØ11x20 fügen. Fastening of the engine guard rear right: On the already mounted allen screw M10x200 with washer Ø10,5 and self lock nut M10. Insert the alu spacer Ø25xØ11x20 between the bracket and the frame. Fahrtrichtung/driving direction 5017609 00 01...
- Page 5 5037609 00 01 Frontschutzbügel / Front guard 5047609 00 01 Heckschutzbügel / Rear guard Hepco & Becker GmbH Tel.: +49 (0)6331 - 1453 - 100 An der Steinmauer 6 Fax: +49 (0)6331 - 1453 - 120 D-66955 Pirmasens eMail: vertrieb@hepco-becker.de Germany www.hepco-becker.de 5017609 00 01...
