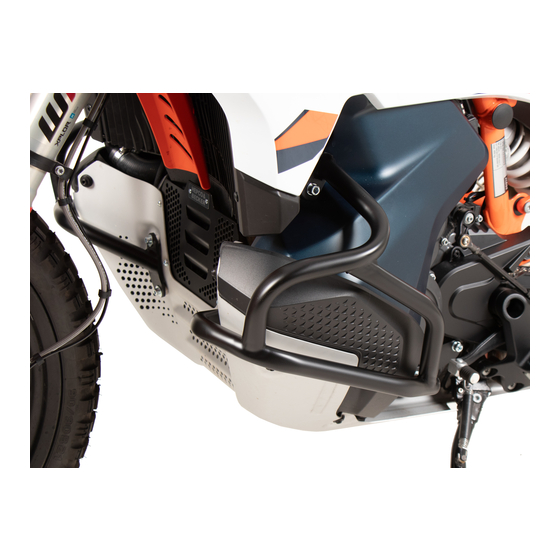

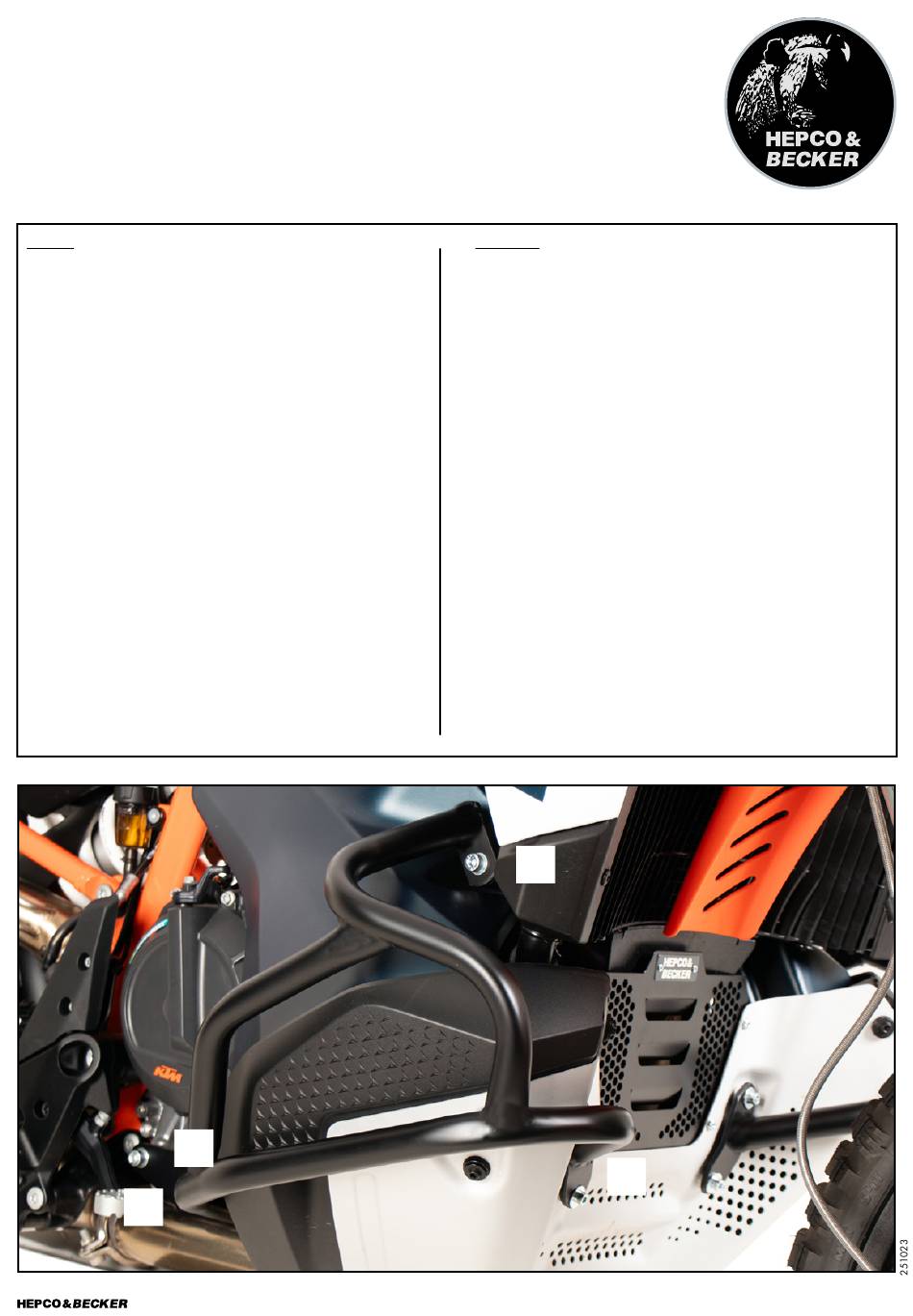

MOTORSCHUTZBÜGEL/ ENGINE GUARD
KTM 890 Adventure / R / Rally
(2023-)
Art.Nr./Item-no.:
5017656 00 01
schwarz/black
5017656 00 06
orange
Inhalt
1x 700013594 Motorschutzbügel links schwarz
1x 700013595 Motorschutzbügel rechts schwarz
ODER
1x 700013596 Motorschutzbügel links orange
1x 700013597 Motorschutzbügel rechts orange
1x 700010425 Adapter links schwarz
1x 700010426 Adapter rechts schwarz
1x 700013598 Schraubensatz:
1x Zylinderschraube M8x50
1x Zylinderschraube M8x90
1x Zylinderschraube M8x70
2x Zylinderschraube M8x40
1x Zylinderschraube M8x35
4x Zylinderschraube M8x20
4x Zylinderschraube M6x25
4x Aludistanz Ø18xØ7x5
2x Aludistanz Ø16xØ9x31
1x Aludistanz Ø30xØ9x36
1x Aludistanz Ø30xØ9x16
2x Aludistanz Ø15xØ9x20
1x Aludistanz Ø15xØ9x10
1x Aludistanz Ø15xØ9x25
4x Karosseriescheibe Ø6,4xØ18
8x U-Scheibe Ø8,4
2x Karosseriescheibe Ø8,4xØ23
4
1
Content
1x 700013594 Engine guard left black
1x 700013595 Engine guard right black
OR
1x 700013596 Engine guard left orange
1x 700013597 Engine guard right orange
1x 700010425 Adapter left black
1x 700010426 Adapter right black
1x 700013598 Screw kit:
1x Allen screw M8x50
1x Allen screw M8x90
1x Allen screw M8x70
2x Allen screw M8x40
1x Allen screw M8x35
4x Allen screw M8x20
4x Allen screw M6x25
4x Alu spacer Ø18xØ7x5
2x Alu spacer Ø16xØ9x31
1x Alu spacer Ø30xØ9x36
1x Alu spacer Ø30xØ9x16
2x Alu spacer Ø15xØ9x20
1x Alu spacer Ø15xØ9x10
1x Alu spacer Ø15xØ9x25
4x Body washer Ø6,4xØ18
8x Washer Ø8,4
2x Body washer Ø8,4xØ23
2
3
5017656 00 01/ 5017656 00 06
1
