LFS-PM-T43 operating manual
LFS-PM-T43 automatic distance
operating manual
Read this manual before operation
⚫ The content include of electric connections and operating steps
⚫ Read the manual to ensure electric connection
controller
V1.0
Addr:
Tel:
Fax:
E-mail:
Web:
I
RuiDa Technology Co., Ltd
1TH FLOOR,5TH BUILDING,NANYOU TIANAN
INDUSTRIAL ZONE,SHENZHEN
0755--26066687
0755--26982287
sales@rd-acs.com
www.rd-acs.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LFS-PM-T43 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ruida Technology LFS-PM-T43

Summary of Contents for Ruida Technology LFS-PM-T43

  • Page 1 LFS-PM-T43 operating manual Read this manual before operation ⚫ The content include of electric connections and operating steps ⚫ Read the manual to ensure electric connection LFS-PM-T43 automatic distance controller operating manual V1.0 RuiDa Technology Co., Ltd Addr: 1TH FLOOR,5TH BUILDING,NANYOU TIANAN...
  • Page 2 LFS-PM-T43 operating manual COPY RIGHT RuiDa technology keep the right of the following: 1. Ruida technology owns all the patent right and property right of the products. Ruida will preserve the right to pursue legal actions against copying , producing this product.

  • Page 3: Table Of Contents

    LFS-PM-T43 operating manual Contents CHAPTER 1 INTRODUCTION ...................... 1 PRODUCT INTRODUCTION ........ERROR! BOOKMARK NOT DEFINED. CHAPTER 2 FUNCTION ......................2 TOUCH SCREEN ............ERROR! BOOKMARK NOT DEFINED. FUNCTIONS ............ERROR! BOOKMARK NOT DEFINED. 2.2.1 MAIN MENU ...............Error! Bookmark not defined. 2.2.2 PARAMETER SETTING ..........Error! Bookmark not defined.
  • Page 4 LFS-PM-T43 operating manual 5.1.3 RESET FAULT ...............Error! Bookmark not defined. 5.1.4 CAPACITY FAULT ............Error! Bookmark not defined. 5.1.5 CRASH ALARM ............Error! Bookmark not defined. 5.1.6 EMERGNECY STOP ............Error! Bookmark not defined. 5.1.7 FOLLOWING ERROR ............Error! Bookmark not defined. 5.1.8 MULTI-ERROR .............Error! Bookmark not defined.

  • Page 5: Chapter 1 Introduction

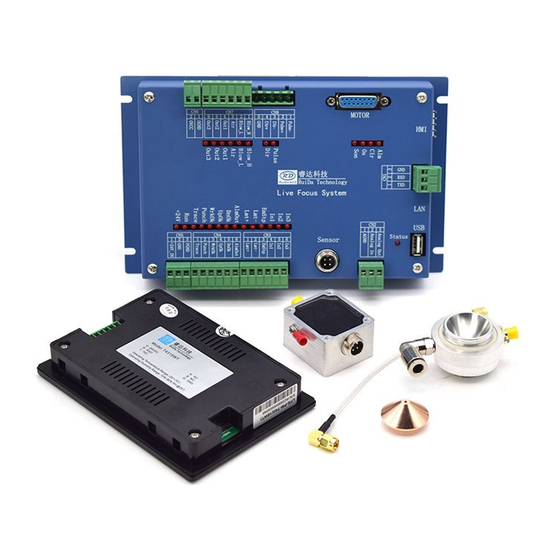

    LFS-PM-T43 operating manual Chapter 1 Introduction 1.1 Product introduction LFS-PM-T43 is a automatic distance control system that based on the capacity sensor. This system has a 4.3” TFT touch screen and can display the work status and detecting capacity value.

  • Page 6: Chapter 2 Function

    LFS-PM-T43 operating manual Chapter 2 Functions 1.2 4.3” touch screen This distance controller is included of a 4.3” touch TFT screen. The resolution is 480X272. the laser head work status is displayed in the monitor and parameters can be modified with the monitor.
  • Page 7 LFS-PM-T43 operating manual If all the electrical connections has been done correctly, when power on the controller, the monitor of the controller will go to the main interface. If there are no error happened, that means the automatic distance controller work well.

  • Page 8: Parameter Setting

    LFS-PM-T43 operating manual the alarm record is 9. ◆ “Function” ： go to the auxiliary gas test and capacitor calibration menu ◆ “system info” ：check the version of the controller and multi-language selection. ◆ “system time” ：modify the system time。...
  • Page 9 LFS-PM-T43 operating manual Rise posi The rising height for laser head during jump motion。 When the alarm triggered, the laser head is on the stop Alarm posi height When the cutting task is finished, the laser head is on the Stdby posi position.

  • Page 10: Parameter Management

    LFS-PM-T43 operating manual installed, user should set the polarity to be negative. If it is PNP, the polarity should be set to positive. If the limit protection is enabled, when the limit is triggered, LMT EN the motion protection will take affect such as rising the laser head and stop motion.
  • Page 11 LFS-PM-T43 operating manual 2.2.5 Calibration In the main menu, press “FUNCTION” to go to “CALIBRATION” interface. Calibration is very important for a correct application of the distance controller. If the laser head has stand by for a very long time or the environment has changed a lot, a calibration should be done.
  • Page 12 LFS-PM-T43 operating manual changed. If the curve is smooth and the value is in the desired scale, that means the calibration is successful. User can press “OK” to save the calibration data. If the calibration is not smooth and there are noises on it, that means the calibration is failed. User can press “CANCEL” to ignore the result.

  • Page 13: System Time

    LFS-PM-T43 operating manual 2.2.7 System info Press “SYS INFO” to go to system information interface. This page include of the language selection and the version of the controller. 2.2.8 System time In the main menu, press the “date and time” to go to modify the date and time.

  • Page 14: Chapter 3 Electric Connections

    LFS-PM-T43 operating manual Chapter 2 Electrical Connection 1.4 Interface of the distance controller The wiring diagram is just as follows： 控制高压气 电磁阀 控制低压气 电磁阀 Pul+ Pul- 电机驱动器 Dir+ 控制空气 Dir- 电磁阀 触摸屏 调高控制器 RDC633xM主板 调高控制器 OUT1 Trace Punch OUT2 OUT0...

  • Page 15: Sensor Interface

    LFS-PM-T43 operating manual 3.1.1 Sensor interface This interface is to connect the amplifier and distance controller。 When installing the amplifier, the shield of the amplifier should be have good conduction with the laser head (sensor and nozzle). There a wiring terminal on the shield of the amplifier.

  • Page 16: Cn4

    LFS-PM-T43 operating manual The limit switch can be mechanical, opto-electric and magic type. But all the limit should be 24V standard. It can be OC interface mode. 3.1.5 CN4 control input SIGNAL DEFINITION DESCRIPTION 低电平时，处于随动下降并跟随，高电平 随动控制信号输入 PIN1 Trace 时，处于随动上升 穿孔信号输入...

  • Page 17: Cn7

    LFS-PM-T43 operating manual 3.1.8 CN7 output SIGNAL DEFINITION DESCRIPTION PIN1 Blow_H High pressure gas control Drive relay PIN2 Blow_L normal pressure gas control Drive relay PIN3 Air control Drive relay — PIN4 Out1 General output — PIN5 Out2 General output —...

  • Page 18: Hmi

    LFS-PM-T43 operating manual PIN（color of wire） signal definition PIN1（yellow） SPEED +/-10V speed command PIN2（blue） Zero speed PIN3（black） Encoder A+ PIN4（orange） Encoder B+ PIN5（red） Encoder Z+ PIN6（green） Servo on PIN7（green/white） Alarm clear PIN8（brown） +24V +24V output PIN9（yellow/white） AGND Analog GND PIN10（blue/white）...

  • Page 19: Led Indicator

    LFS-PM-T43 operating manual 1.5 Led Indicator LED name Description +24V 24V Power indicator System running indicator Trace Tracing signal indicator. Punch Piercing indicator WrkOk Work finish indicator UpOk Rising up ok indicator DnOk Tracing down ok indicator AlmOut Alarm indicator.

  • Page 20: Chapter 4 Test

    LFS-PM-T43 operating manual Chapter 2 Test and Run Test and run is based the RDC6332M cutting controller and the control software is Metal Cut. 1.6 Distance controller test Before we start the distance controller test and run, the cutting control system and the distance controller should be wired correctly.
  • Page 21 LFS-PM-T43 operating manual User still can selet the “check follow up ” to be “use delay” and the “check follow” to be “using trigger”. The first operation should be careful. The following step should be noticed： 1) If the drive is servo drive, please set the parameters correctly according to the operating manual of the servo drive。...

  • Page 22: Cutting Test

    LFS-PM-T43 operating manual 6) Press “trace off”，the button will changed into green and the text will change into “trace on”. Press the “.” on the operating panel of the cutting system. The laser head will tracing down to the work piece and enter the tracing mode. Press “.” again, the laser head will rise to a certain position.
  • Page 23 LFS-PM-T43 operating manual For laser piercing, the motion controller support CW piercing and pulse piercing mode. To set the piercing mode in the user parameters and layer parameters. If laser CW piercing has been enabled, there is a continuous laser on the metal work piece for a certain time and then start a normal cutting.
  • Page 24 LFS-PM-T43 operating manual The total piercing time = 50*4 = 200ms； User can set the laser power for laser piercing and the laser power for cutting. User parameter setting...
  • Page 25 LFS-PM-T43 operating manual Auxiliary test Press the “function” to go to “auxiliary test” page. This used to test the piercing gas and the cutting gas. Laser emission test In the operating panel of the motion controller, press “pulse” to test the laser.

  • Page 26: Chapter 5 Alarm Information

    LFS-PM-T43 operating manual Chapter 5 : alarm information 1.8 Description of the alarm During the running, there maybe some alarm happened because of some undesired conditions. The alarm information will be considered and some protection should be executed. The alarm information include of up limit trigger, down limit trigger, reset fault, crash alarm, following error over limit, emergency stop and sensor failed.
  • Page 27 LFS-PM-T43 operating manual ◆ When resetting, the laser head have no motion or the speed is too low and has caused a timeout action. Please check the parameters of the distance controller. ◆ The polarity of the motor is wrong. When resetting, the laser head move down to trigger the down limit.
  • Page 28 LFS-PM-T43 operating manual 5.1.6 Emergency stop When a low level signal is input to the emergency port, system will stop all the motion immediately. If the input is keep high level and there is still a emergency triggered, the following reasons may cause that.
  • Page 29 LFS-PM-T43 operating manual Chapter 6 Installing 1.9 Size of the distance controller 1.10 Size of the amplifier...
  • Page 30 LFS-PM-T43 operating manual Appendix: Trouble shoots FAULT MAIN REASON SOLVED Wiring of DIR+、DIR-、PULSE+、 Reference to the manual to PULSE-is not correct. ensure a right connection Parameters of Servo drive is not Reference to the servo drive correct operating manual Manual moving up...
  • Page 31 EARTH. Connect Thank you for your selection of our production! All the copyright of this manual is owned by Ruida technology. Any person or company can not copy upload and send the manual without Ruida’s permission.
  • Page 32 LFS-PM-T43 operating manual Content will be revised or modified. We will not send message to every users. If there are any question or suggestion about our products and manuals, please tells us. Tel：(086)0755-26066687 Fax：(086)0755-26982287 Adress： 1B-1 buiding 5, Tian’an Nanyou industrial area,Dengliang road,Nanshan district, Shenzhen, Guangdong , China.
