Non-metal Distance controller user manual LFS-ANM-T43-V2
●The user is sure to read this manual before using the controller
●The contents of this manual is the system operating manual
●Read the manual carefully to ensure proper electrical connection
Non-metal distance controller user manual
LFS-ANM-T43-V2
Shenzhen Ruida Technology Co., Ltd.
RuiDa Technology Co., Ltd
Add:
1TH
FLOOR,5TH
TIANAN INDUSTRIAL ZONE,SHENZHEN
Tel:
0755--26066687
Fax:
0755--26982287
E-mail: sales@rd-acs.com
Web:
www.rd-acs.com
I
BUILDING,NANYOU
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ruida Technology LFS-ANM-T43-V2
Summary of Contents for Ruida Technology LFS-ANM-T43-V2
- Page 1 Non-metal Distance controller user manual LFS-ANM-T43-V2 ●The user is sure to read this manual before using the controller ●The contents of this manual is the system operating manual ●Read the manual carefully to ensure proper electrical connection LFS-ANM-T43-V2 Non-metal distance controller user manual RuiDa Technology Co., Ltd...
- Page 2 2. Ruida Technology is entitled to increase or reduce and modify the products and functions of this product stated herein as well as amend any documents attached to this product, without prior notification.
- Page 3 Non-metal Distance controller user manual LFS-ANM-T43-V2 Version History Version Date Describe V1.0 2018.03.14 Created Shenzhen Ruida Technology Co., Ltd.
-
Page 4: Table Of Contents
Non-metal Distance controller user manual LFS-ANM-T43-V2 CONTENTS Chapter 1 Introduction ........................1 1.1 System Introduction ....................... 1 1.2 Accessories ..........................2 1.3 Laser displacement sensor ...................... 4 Chapter 2 Hardware description ....................... 5 2.1 System wiring diagram ......................5 2.2 Power Input(CN1) ........................6 2.3 Laser displacement sensor(CN2) .................... - Page 5 Non-metal Distance controller user manual LFS-ANM-T43-V2 Appendix 1: Usual Fault & Disposing Method ................22 Appendix 2: Installation method of sensor ..................24 Shenzhen Ruida Technology Co., Ltd.
-
Page 6: Chapter 1 Introduction
Non-metal Distance controller user manual LFS-ANM-T43-V2 Chapter 1 Introduction 1.1 System Introduction LFS-ANM-T43-V2 Non-metal distance controller（hereinafter referred to as ’Non-metal distance controller’）. It is a non-metallic cutting automatic distance system based on laser displacement sensing technology. It can work with RDC633XM for non-metal cutting control system. -
Page 7: Accessories

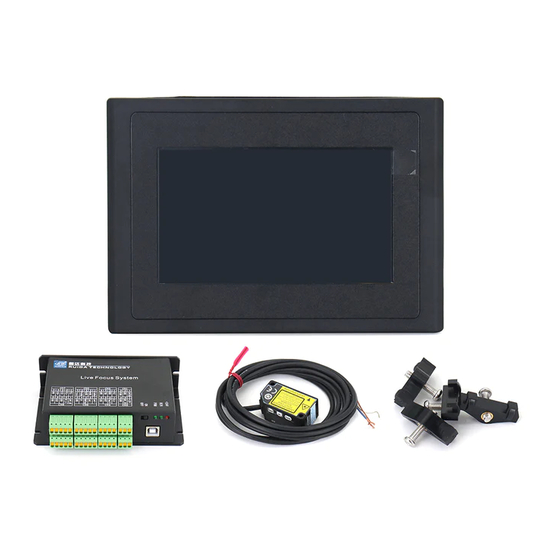

Non-metal Distance controller user manual LFS-ANM-T43-V2 1.2 Accessories Non-metal distance controller includes the following important accessories: Non-metal distance controller LFS-ANM-T43-V2, as shown in Figure 1.1. 4.3 inch touch screen, as shown in Figure 1.2. Touch screen connection line. - Page 8 Non-metal Distance controller user manual LFS-ANM-T43-V2 Figure 1.2 touch screen 25mm 18mm 20 mm Figure 1.3 Laser displacement sensor Shenzhen Ruida Technology Co., Ltd.
-
Page 9: Laser Displacement Sensor
Non-metal Distance controller user manual LFS-ANM-T43-V2 1.3 Laser displacement sensor The laser displacement sensor adopts the principle of laser reflection ranging. The bottom of the sensor is the laser transmitting window and the laser receiving window. The distance between the laser transmitting window and the focal plane is 100mm, which is changed according to the different sensor models. -
Page 10: Chapter 2 Hardware Description
Non-metal Distance controller user manual LFS-ANM-T43-V2 Chapter 2 Hardware description 2.1 System wiring diagram +24V AC220V~50Hz DC POWER PGND 24VIN +12V AN_IN Auxiliary gas PGND switch relay +24V Fault DrProc AlmOut Lmt+ Emergency stop FootSw DnOk Lmt- L_IN EmStp UpOk... -
Page 11: Power Input(Cn1)
Serial write data interface R interface — — PIN4 Ruida Technology has been equipped cable connection in the product accessories. The standard length of cable is 1.5 meter. The user only needs to connect according to interface. non-metal distance 4.3 Inch controller... -
Page 12: Control Input And Output(Cn5)
Non-metal Distance controller user manual LFS-ANM-T43-V2 2.6 Control input and output(CN5) SIGNAL DEFINITION DESCRIPTION When the laser head crash to the metal PIN1 AlmOut Crash alarm output plate, the AlmOut output 24V. PIN2 DnOk Going down status Low level valid... -
Page 13: Usb Interface
Non-metal Distance controller user manual LFS-ANM-T43-V2 — 24V power output PIN1 24V_O — 5V power output PIN2 5V_O — Servo enable interface PIN3 — Servo alarm input PIN4 — — PIN5 If you connect the stepper motor, you can use the differential connection, the common connection etc. -
Page 14: Chapter 3 Function Introduction
It use serial communication for data communication between non-metal distance controller and touch screen. RuiDa Technology has been equipped cable connection in the product accessories. The standard length of cable is 1.5 meter. The user only needs to connect according to interface. -
Page 15: Function Introduction
Non-metal Distance controller user manual LFS-ANM-T43-V2 3.2 Function Introduction 3.2.1 Main Interface Function “FOLLOW ON/OFF”：It is use to turn on /off follow status. When turn on, Non-metal distance controller adjust the cutting head automatically by current parameters and move in the focus position. -
Page 16: Parameters Setting
Non-metal Distance controller user manual LFS-ANM-T43-V2 3.2.2 Parameters Setting It can set the parameters from “Menu” main interface. Including process parameters, height parameters, speed parameters, machine parameters etc. Remarks: Please setting parameters correctly when using the non-metal distance controller, otherwise, the non-metal distance controller cannot work. - Page 17 Non-metal Distance controller user manual LFS-ANM-T43-V2 Rise Speed It is the maximum speed during the cutting process. It is the maximum speed at which following cutting Follow Speed process Reset Speed It is the maximum speed when reset. Speed Para...
-
Page 18: Parameter Management
Non-metal Distance controller user manual LFS-ANM-T43-V2 3.2.3 Parameter Management Parameter management is mainly to used to save and restore the user parameters of non-metal distance controller. When operating, it needs manage permissions. User can set the parameters only when you write down the password correctly. User cans setting the parameters according actual situation. -
Page 19: Blowing Test
Non-metal Distance controller user manual LFS-ANM-T43-V2 3.2.5 Blowing Test In the main interface, press“Function” enter into the interface of “Blow Test” The blowing test is to test whether the cutting gas control is normal or not, to avoiding light and no air. -
Page 20: System Time
Non-metal Distance controller user manual LFS-ANM-T43-V2 3.2.7 System Time In the main interface, user can change the time in the touch screen of upper right corner to change. Under this interface, user can set date and time. When entering the interface, user will get the current touch screen time. -
Page 21: Chapter 4 Trial Operation
Non-metal Distance controller user manual LFS-ANM-T43-V2 Chapter 4 Trial operation 4.1 Non-metal distance controller trial operation When finished to installed the non-metal distance controller connection, panel and main board. It is need to set correctly vendor paras and user paras of RDC633XM before running. In software of MetalCut, “file”—“vendor setting”—“other”，Click “Enable open cover protection”... -
Page 22: Cutting Test
Non-metal Distance controller user manual LFS-ANM-T43-V2 Be careful when operating for the first time. Please do the steps as below to : 1) If it is a servo drive, please set the drive parameters according to the drive model, the specific operation can view to the drive instructions. - Page 23 Non-metal Distance controller user manual LFS-ANM-T43-V2 Set the layer parameters correctly: After set a correctly vendor parameters, user parameters and processing parameters, which can be cutting. To set the user parameters correctly: Shenzhen Ruida Technology Co., Ltd.
- Page 24 Non-metal Distance controller user manual LFS-ANM-T43-V2 Blow test In the interface of non-metal distance controller, user can press “function" button to enter the "blow test", to test whether the normal cutting gas or not?. Laser test In the panel, press “Max power” to set pulse power. Press “pulse” to test whether the laser is normal or not。...
-
Page 25: Chapter 5 Alarm Message Descriptions
Non-metal Distance controller user manual LFS-ANM-T43-V2 Chapter 5 Alarm message descriptions 5.1 Alarm information explanation In the non-metal distance controller operation may be encounter abnormal circumstances and then alarm, and produce the appropriate protection action protection the machine. Alarm messages include system errors, upper limit trigger, lower limit trigger, reset error, out of detection range, emergency stop, and multiple errors. -
Page 26: Beyond Detection Range
Non-metal Distance controller user manual LFS-ANM-T43-V2 5.4 Beyond detection range When the cutting head is out of the effective detection range of the sensor, it will show that the detection range is exceeded. The cutting head height can be adjusted to the appropriate position. - Page 27 Non-metal Distance controller user manual LFS-ANM-T43-V2 Appendix 1: Usual Fault & Disposing Method Common Fault Reason Solution Phenomenon Please view the user manual to Wrong connection of DIR+、 make sure the connection connect DIR-、PULSE+、PULSE- correctly Wrong parameters of servo Setting servo driver according to...
- Page 28 Non-metal Distance controller user manual LFS-ANM-T43-V2 The filter factor is set too large Reduce the filter coefficient Servo drive rigid setting is too Reduces servo rigidity large Misoperation trigger beyond the detection Alarm filter factor is too small To set suitable alarm filter range during cutting Shenzhen Ruida Technology Co., Ltd.
- Page 29 Non-metal Distance controller user manual LFS-ANM-T43-V2 Appendix 2: Installation method of sensor Side view Front view installation angle Focus position Focus position The installation mode of the sensor is illustrated as shown in the figure above: Adjust the cutting head focus. Make sure that the focus of the cutting head in the focal plane, and record the focus position.
- Page 30 Thank you very much for using the product from Shenzhen RuiDa Technology! All parts of this manual description, all rights reserved by Shenzhen RuiDa Technology Co., Ltd. Without our permission, any company or individual shall not reprint, copy or distribute the content related to this product manual.
