RuiDa Technology Co., Ltd
Addr:
3th
floor,Technology
Avenue,Nanshan
Province,P.R.China
Tel:
0755--26066687
Fax:
0755--26982287
E-mail:
sales@rd-acs.com
Web:
www.rd-acs.com
SHENZHEN RUIDA TECHNOLOGY
Read this manual before operation
The content include of electric connections and operating steps
Read the manual to operate the systems
RDC6442U
Dual-head Asynchronous
Building,NO.,1067
District,Shenzhen
city,Guangdong
RDC6442U Dual-head Asynchronous
Nanhai
https://www.ruidacontroller.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ruida Technology RDC6442U
Summary of Contents for Ruida Technology RDC6442U

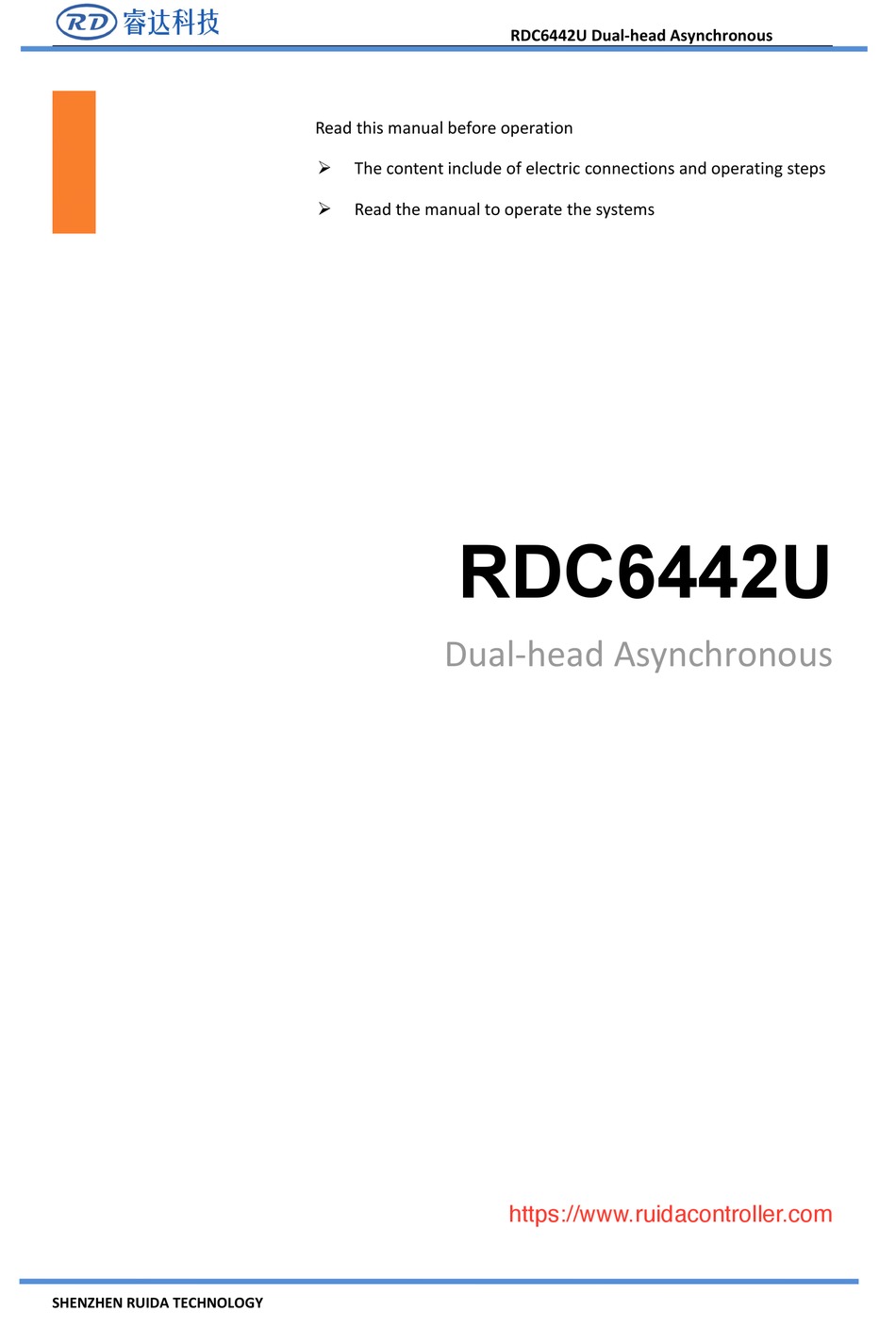

- Page 1 RDC6442U Dual-head Asynchronous Read this manual before operation The content include of electric connections and operating steps Read the manual to operate the systems RDC6442U Dual-head Asynchronous RuiDa Technology Co., Ltd Addr: floor,Technology Building,NO.,1067 Nanhai Avenue,Nanshan District,Shenzhen city,Guangdong Province,P.R.China...
- Page 2 RDC6442U Dual-head Asynchronous COPYRIGHT All rights reserved.You may not reproduce, transmit, store in a retrieval system or adapt thispublication, in any form or by any means, without the prior written permissionof RuiDa, except as allowed under applicable copyright laws. We have identifiedwords that we consider as trademarks.
- Page 3 RDC6442U Dual-head Asynchronous CERTIFICATION DECLARATION The product has been certified by the CE (Commutate European) safety certification. It has passed the corresponding conformity assessment procedure and the manufacturer's declaration of conformity, in accordance with the relevant EU directive. ROHS This product has been certified by EU legislation (Restriction of Hazardous Substances) Safety certification;...
- Page 4 RDC6442U Dual-head Asynchronous SAFETY INFORMATION When using this system, please make sure the operation is correct and the usage is safe. Some signs or text will be used to remind you to pay attention to the dangerous matters and some important information.
- Page 5 If any missing parts or damaged parts are found, please contact ruida technology immediately.Do not install or debug the equipment if any obvious damage is found.
-
Page 6: Table Of Contents
RDC6442U Dual-head Asynchronous Contents Section 1 Functions Instruction........................1 1.1 System Components..........................2 Section 2 Testing steps..........................3 2.1 Do testing and configuration the mian and auxiliary controller separately.........4 2.2 Joint Operation............................4 2.3 Set the distance between two axis origin points..................6 2.4 joint control mode..........................7 2.5 Software page size and safety distance Setting.................. -
Page 7: Section 1 Functions Instruction
RDC6442U Dual-head Asynchronous Section 1 Functions Instruction CONTENTS: System Components SHENZHEN RUIDA TECHNOLOGY... -
Page 8: System Components
RDC6442U Dual-head Asynchronous 1.1 System Components The dual-head asynchronous laser cutting machine is composed of two independent XY platform systems. The cutting data is distributed through the computer software and the systems communicate with each other to realize the double-head synchronous start and asynchronous cutting on the common work area. -
Page 9: Section 2 Testing Steps
RDC6442U Dual-head Asynchronous Section 2 Testing steps CONTENTS: Testing steps Joint Operation SHENZHEN RUIDA TECHNOLOGY... -
Page 10: Do Testing And Configuration The Mian And Auxiliary Controller Separately
RDC6442U Dual-head Asynchronous 2.1 Do testing and configuration the mian and auxiliary controller separately If user not select[Joint Operation Mode], the main controller and auxiliary controller can be used by switching the laser head 1 / laser head 2 respectively. - Page 11 RDC6442U Dual-head Asynchronous For double cantilever models, the hard limit is installed in the X direction; for double beam models, the hard limit is installed in the Y direction. Although the dual laser head hard limit protection has been set, the hard limit is only a guarantee under abnormal conditions.
-
Page 12: Set The Distance Between Two Axis Origin Points
RDC6442U Dual-head Asynchronous 2.3 Set the distance between two axis origin points The measurement method of the biaxial origin distance is to move the laser head 1 and the laser head 2 to origins, and then laser on separately to measure the actual distance between the two points. -
Page 13: Joint Control Mode
RDC6442U Dual-head Asynchronous 2.4 joint control mode Enable the joint control mode of the main controller and the auxiliary controller separately 2 . 5 S o f t w a r e p a g e s i z e a n d s a f e t y d i s t a n c e S e t t i n g The “Dual-axis origin distance”... -
Page 14: Coordinate Origin
RDC6442U Dual-head Asynchronous 2.6 C o o r d i n a t e o r i g i n The blue arrows in the software work area indicate the coordinate systems of the primary and secondary controllers. Select the machine type as "Double Cantilever"... -
Page 15: Section 3 Laser Cutting Function
RDC6442U Dual-head Asynchronous Section 3 Laser Cutting Function CONTENTS: Single head cutting SHENZHEN RUIDA TECHNOLOGY... -
Page 16: Single Head Cutting
RDC6442U Dual-head Asynchronous 3.1 Single head cutting The software supports cutting with a single head, and also supports dual head cutting. In general, single-head cutting is required during machine commissioning or some special occasions (such as cutting large graphics with a single head). -
Page 17: Joint Cutting
RDC6442U Dual-head Asynchronous 7 U s e " S t a r t " t o o u t p u t d i r e c t l y ; o r " D o w n l o a d " t h e f i l e t o t h e c o n t r o l l e r a n d s t a r t f r o m t h e p a n e l 3.2 J o i n t c u t t i n g... - Page 18 RDC6442U Dual-head Asynchronous 2 T h e o u t p u t p o r t d o e s n o t n e e d t o b e s e l e c t e d , a n d i s a u t o m a t i c a l l y d o w n l o a d e d t o t h e m a i n c o n t r o l l e r a n d t h e a u x i l i a r y c o n t r o l l e r a c c o r d i n g t o t h e g r a p h i c d i s t r i b u t i o n .
- Page 19 RDC6442U Dual-head Asynchronous 3 G r a p h i c p o s i t i o n i n g p o s i t i o n o p t i o n i s i n v a l i d . I n j o i n t w o r k i n g...
-
Page 20: Section 4 Hardware Description
RDC6442U Dual-head Asynchronous Section 4 Hardware description CONTENTS: Dual card + single panel hardware architecture SHENZHEN RUIDA TECHNOLOGY... -
Page 21: Dual Card + Single Panel Hardware Architecture
RDC6442U Dual-head Asynchronous 4.1 Dual card + single panel hardware architecture The hardware architecture is shown in the figure below, the panel is connected to the HMI interface of the main card, and the auxiliary card does not need to be connected. - Page 22 RDC6442U Dual-head Asynchronous 1、（ Slave） The secondary keyboard has five keys: up / down, left / right, and Fn. The function of the Fn key is currently unused. The up, down, left, and right keys are used to assist the XY movement of the laser head. Except for the other 16 keys of the secondary keyboard, it is similar to the display panel of a conventional RDC6442 system 2、Reset button...
- Page 23 RDC6442U Dual-head Asynchronous Once the set or restore factory parameters are selected in the lower-level menu of the Z / U key, and the correct password is entered, the two controllers are set or restored to the factory parameters at the same time.
-
Page 24: Special Note
RDC6442U Dual-head Asynchronous 4.3 Special Note The operation panel cannot view the files in the secondary card, but only the files in the main card. At the same time, during processing, the graphic dynamic track on the HMI screen also refers to the track of the main card. - Page 25 RDC6442U Dual-head Asynchronous Thank you for your selection of our production! All the copyright of this manual is owned by Ruida technology. Any person or company can not copy upload and send the manual without Ruida’s permission. Content will be revised or modified. We will not send message to every users.
