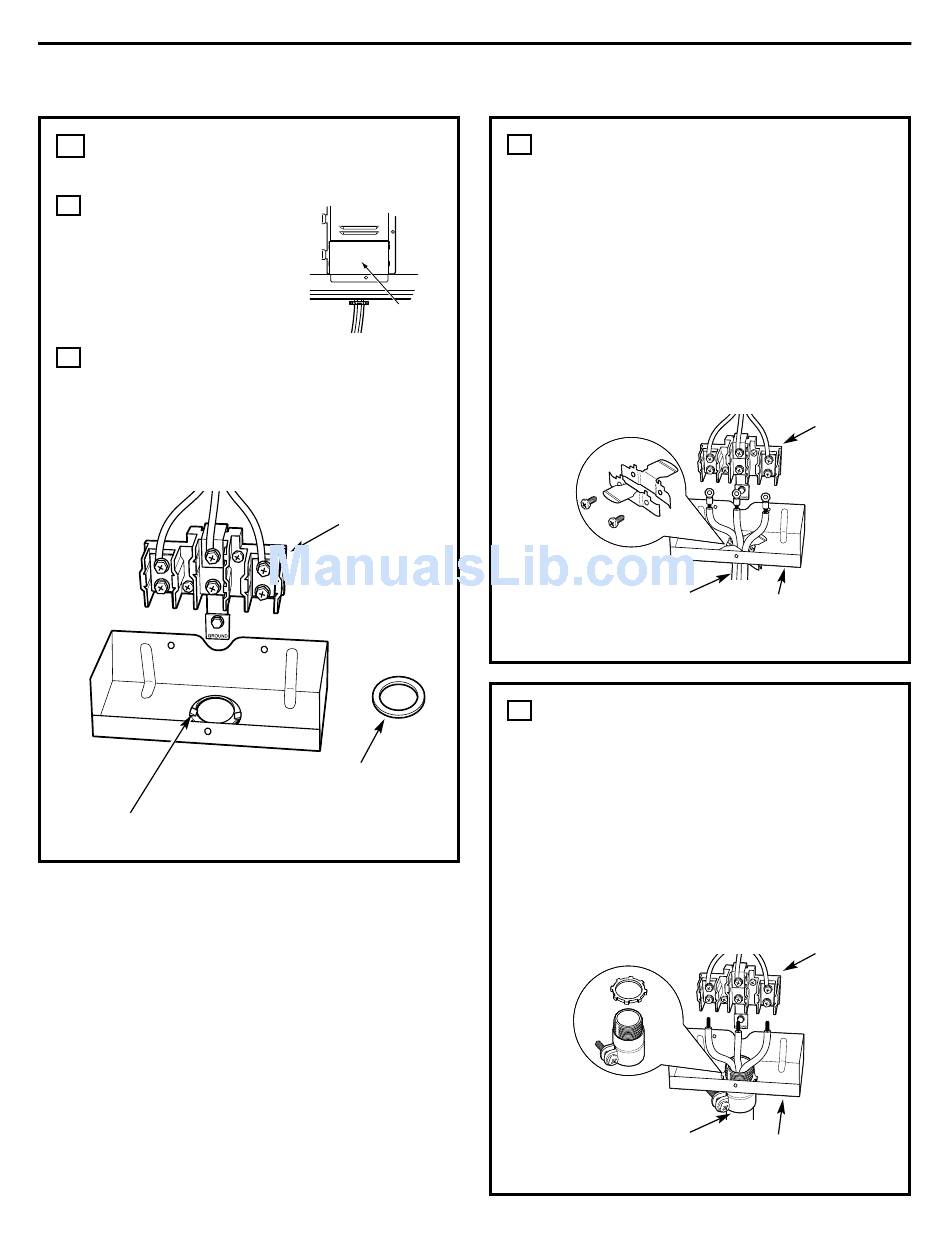

POWER CORD AND STRAIN
3
RELIEF INSTALLATION
A Remove the wire cover
(on the back of the
range) by removing 2
screws, using a 1/4"
nut driver.
Do not discard these
screws.
B Remove the knockout ring (1-3/8")
located on bracket directly below the
terminal block. To remove the knockout,
use a pair of pliers to bend the knockout
ring away from the bracket and twist
until ring is removed.
Knockout ring
in bracket
Installation Instructions
Wire
cover
Terminal
block
(appearance
may vary)
Knockout
ring removed
7
For power cord installations only (see
C
the next step if using conduit), assemble
the strain relief in the hole. Insert the
power cord through the strain relief and
tighten. Allow enough slack to easily
attach the cord terminals to the terminal
block. If tabs are present at the end of
the winged strain relief, they can be
removed for better fit.
NOTE: Do not install the power cord
without a strain relief. The strain relief
bracket should be installed before
reinstalling the rear range wiring cover.
Strain relief
Power cord
Skip to Step 4 or 5.
For conduit installations only, purchase
D
a squeeze connector matching the
diameter of your conduit and assemble
it in the hole. Insert the conduit through
the squeeze connector and tighten. Allow
enough slack to easily attach the wires
to the terminal block.
NOTE: Do not install the conduit without
a squeeze connector. The squeeze
connector should be installed before
reinstalling the rear range wiring cover.
Squeeze
connector
Conduit
Skip to Step 6 or 7.
Terminal
block
Bracket
Terminal
block
Bracket
