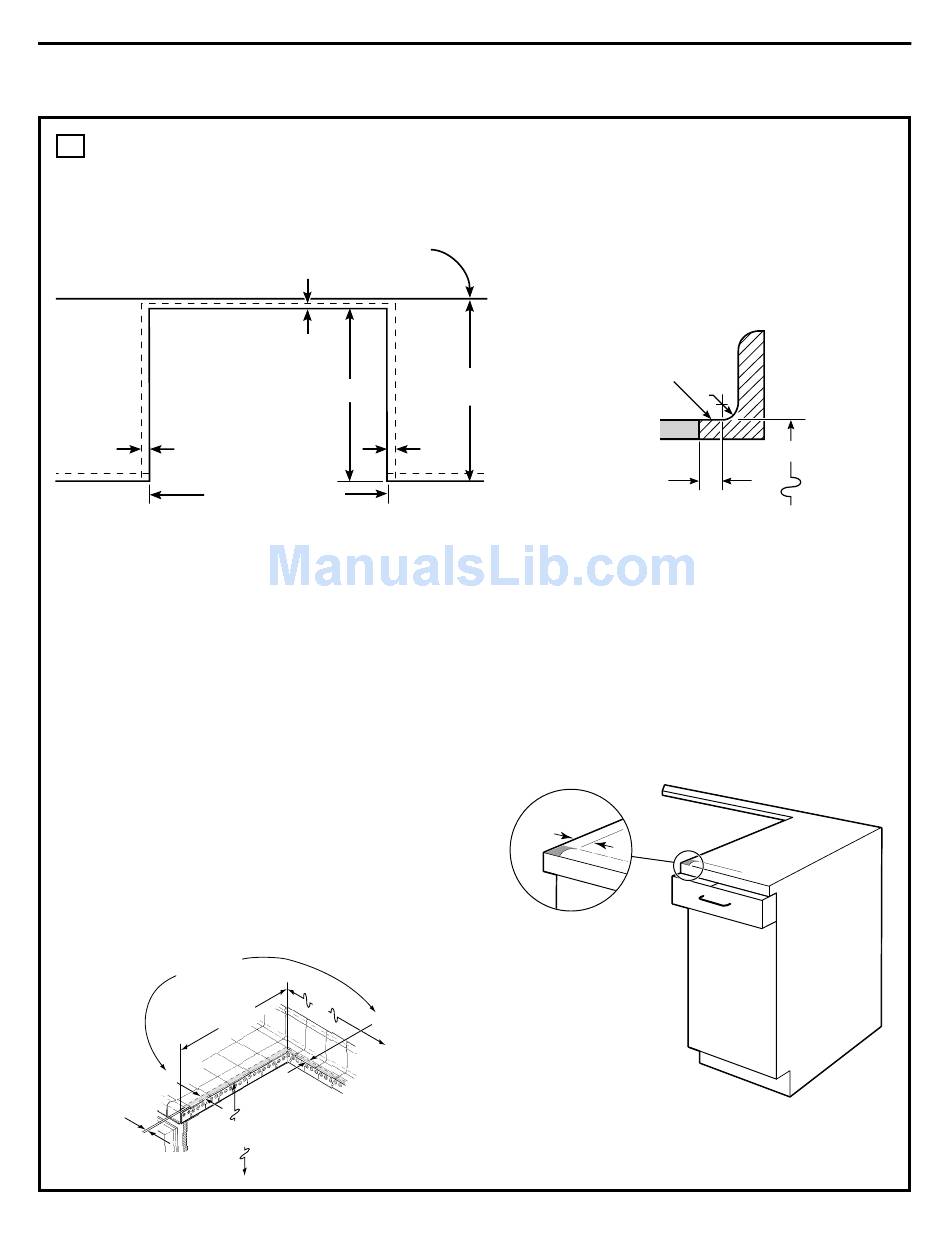

PRE-INSTALLATION CUTOUT
2
AND REQUIRED CLEARANCES
STANDARD INSTALLATION
9/16" Min.
Flat
29-15/16"–30-1/16"
Smooth Cut
If the construction of your cabinet cannot
provide a 1/4" flat area at the back of the
countertop opening, consider changing the
countertop to accommodate this dimension.
See Alternate Construction section. If the area
is not flat, excess tension may be applied to
the glass cooktop, causing breakage and
voiding the warranty.
If the existing cabinet opening is approximately
30-3/8," the Vertical Side Trim Kit (JXS86XX)
should be used to cover gaps between range
sides and cabinet. Refer to the kit instructions
for installation details.
When installing the range at the end of a
cabinet section that will expose the unfinished
side of the range, use Body Side Kit (JXS76XX).
Refer to the kit instructions for installation details.
If countertop height is between 36-1/2" and 38,"
a lower trim kit (JXS56XX) is recommended.
Refer to the kit instructions for installation details.
Flat & Level
With Back &
Opposite Side
3 / 1
2 3 -
1 "
9 / 1
6 "
E a
c h
S i d
3 / 4
e
3 6 -
t o
Installation Instructions
(cont.)
Wall
1/4" Min.
Flat
23-3/16"
9/16" Min.
3 0 "
6 "
"
1 / 4
3 8 "
" t o
o r
F l o
25"
Typically
Flat
• Center the 30" wide opening over the adjacent
cabinets and mark with a straight edge.
• Using a straight edge, mark the back line at
23-3/16" from the front edge of the counter.
• Be careful not to damage the adjacent
cabinets while cutting the countertop. Use a
hand or saber saw to make straight smooth
cuts.
• Remove countertop raised edge,
if incorporated.
9/16"
Shave raised edge
to clear 31-1/8"
wide control panel
5
Flat
Area
R
36"
1/4"
