INSTALL THE ANTI-TIP BRACKET

REPLACE THE WIRE COVER
8
Replace the wire cover
(on the back of the range)
by replacing the 2 screws
removed earlier.
NOTE: When reinstalling
the wire cover, make sure
that wires do not become pinched
between the wire cover and the housing.
9

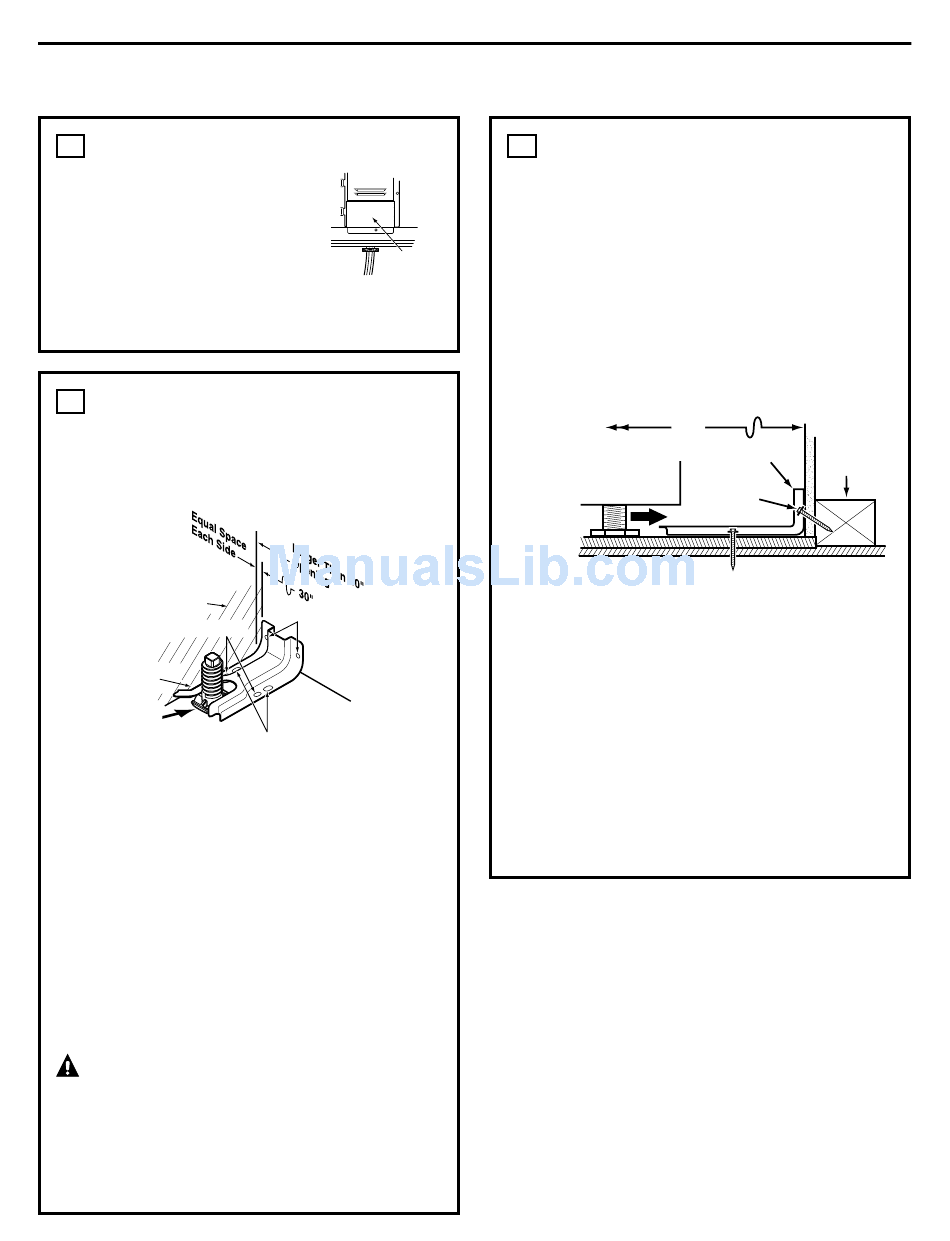

LOCATING THE BRACKET

• Decide whether the bracket will be installed
on the right or left side of the range opening.
• Place the bracket as shown below.
Adjacent Cabinet
FLOOR–WOOD
Bracket Side
Rear
Leveling Leg
FOR ISLAND INSTALLATION
Attach the Anti-Tip bracket per above, making
sure that the rear of the bracket is 25" from
the front of the countertop.
Be aware that the screws provided are long
and may penetrate through the back of the
island cabinets. In this event, use shorter
screws (not provided) or the screws provided
should be used in the floor.
Do not use the Backguard Kit with this
type of installation. Use Maintop Filler Kit
(supplied with this range) if required, and
install using Alternate Construction section.
WARNING:
by Anti-Tip bracket supplied. See instructions
to install (supplied with bracket). Unless
properly installed, the range could be tipped
by stepping or sitting on the door. Injury may
result from spilled hot liquids or from the
range itself.
Installation Instructions
Wire
cover
Wall
FLOOR–CONCRETE
Range must be secured
INSTALLING THE BRACKET
10
IN WOOD OR CONCRETE
INSTALLATION—WOOD CONSTRUCTIONS
• Locate the centers of the 4 holes identified
in the illustration at left as FLOOR–WOOD
and Wall.
• Drill a 1/8" pilot hole through the
pre-marked areas. Note the angle of the
wall screw in the illustration below.
• Mount the Anti-Tip bracket with the
4 screws provided.
To Front Edge
of Countertop
INSTALLATION—CONCRETE CONSTRUCTIONS
• For concrete installation, you will need two
1/4" x 1-1/2" lag screws and two sleeve
anchors.
• Locate the center of the 4 holes identified in
the illustration at left as FLOOR–CONCRETE
and Wall. Drill the recommended size holes
in each.
• Install the sleeve anchors into the predrilled
concrete holes and install the lag and wall
screws through the Anti-Tip bracket. Make
sure the screws are securely tightened.
10
25"
Bracket
Wall Plate
Screw
Must Enter
Wood
or Metal
