Installation Instructions
Standard Installation Instructions
D

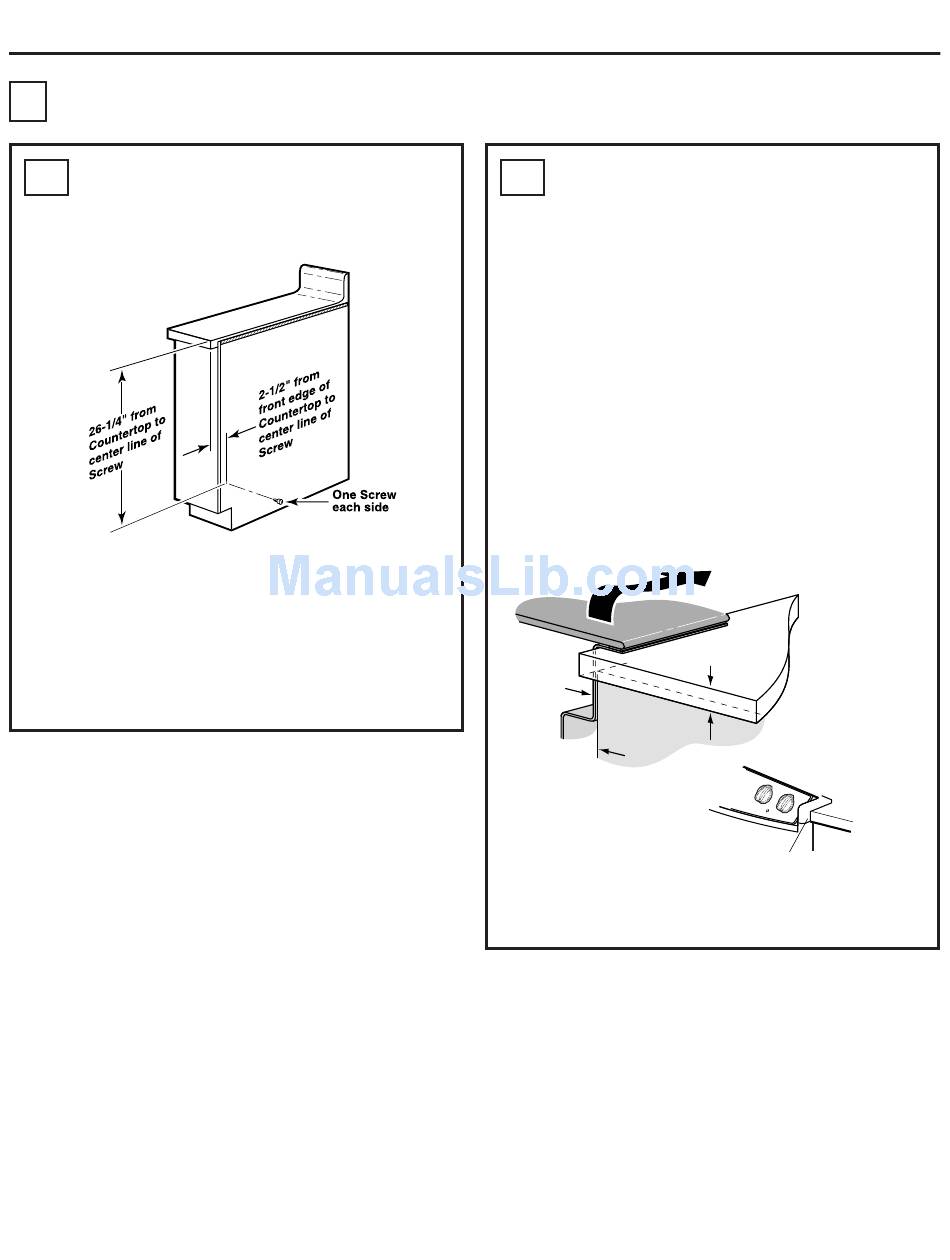

Install Stop Screw
D2
These screws prevent the range from
sliding out of position during operation.
Carefully mark the cabinet for the
location of the stop screws. Drill 1/8"
pilot holes into the cabinet, each side
of the range. (Make sure not to drill
entirely through the cabinet wall.)
Carefully turn the shoulder screws into
the pilot holes until they are tight.
Placing the Range into the
D3
Opening
It is suggested that two people lift the
range into place, carefully setting the
side metal flanges under the glass on
the edges of the countertop opening.
The protective channels must be in
place (if supplied) during this operation.
Carefully slide the range toward the
back of the opening. In the last 1" of
travel, lift the front of the range approx.
1/2" to clear the stop screws located in
the sides of the cabinet and slide the
range until the range is seated. Lower
front of the range on countertop.
Lift and Slide
Range on
Countertop
Range
Cabinet
10
cont.
Countertop
Countertop
Make sure the edge
of the countertop
fits flush against
the end of the
Front Control Panel
(Continued on following page)
