SPM VibChecker Quick Start page 2

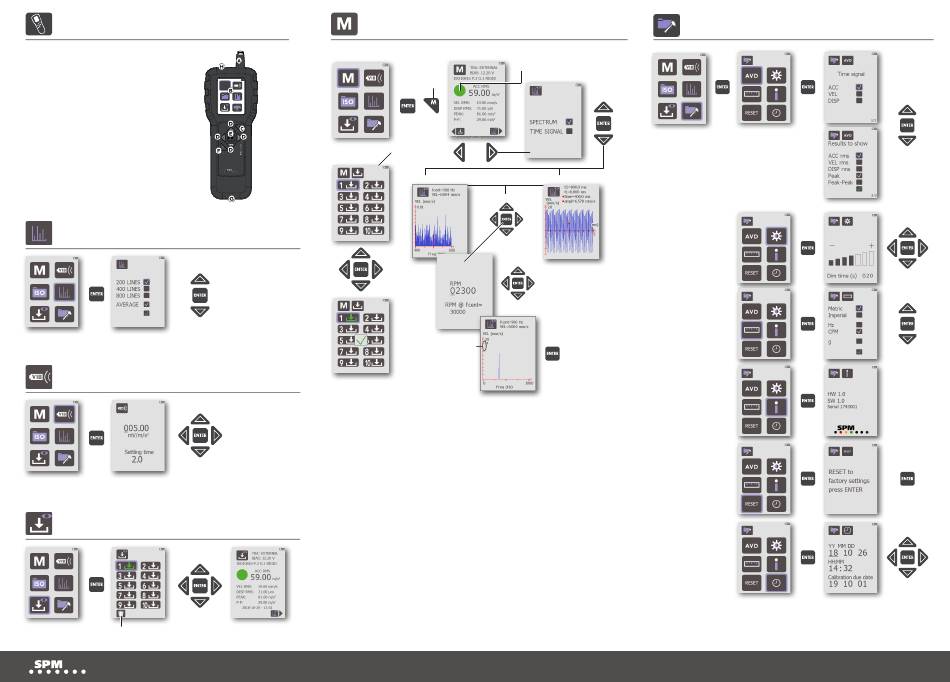

Instrument overview
A. Optional: built-in measuring probe
B. Graphical display with LED backlight
C. MEASURE key
D. Navigation keys
E. ENTER key
F. BACK key and power on
G. Mini-B USB output
H. Sensor input for optional
sensors and measuring cables
Spectrum settings
Sensor settings
View stored readings
Trash can will remove
all stored readings
Measurement
Main display
Press the probe
tip, or connect
external sensor,
and press 'M' from
the measurement
M
VIB
window
ISO
Saving measurement
Measuring:
1. Hold the BACK key to switch on the instrument.
2. Select acceleration, velocity or displacement, and what results to
show, in the AVD menu under General settings.
3. Select ISO standard (off, ISO2372 or ISO10816) for evaluation of
machine condition in the ISO menu.
4. When measuring with built-in probe:
Point the VibChecker straight at the measuring point and hold it
steady during measurement. Press the probe tip until the rubber
sleeve is in contact with the surface, and then press the MEASURE key
from the measurement window.
When measuring with external sensor:
Connect the external sensor to the input at the top of the
VibChecker. Place the external sensor in accordance with the user
guide and then press the MEASURE key from the measurement
window.
The green, yellow or red symbol indicates the machine condition. For
further analysis, use the right arrow to view spectrum or time signal.
Measurement
Condition status
(green/yellow/red)
Choose Spectrum
or Time signal
Spectrum Time signal
Zoom in
Move Move
left right
Zoom out
1x marker
General settings
