www.woodlineshade.com +27 (0)11 826 4033
PICOLLO WITH WOODEN
INSERT WITH WINCH
MECHANISM (NO TILT)
(SEE OVERLEAVE FOR ASSEMBY DIAGRAM)
1

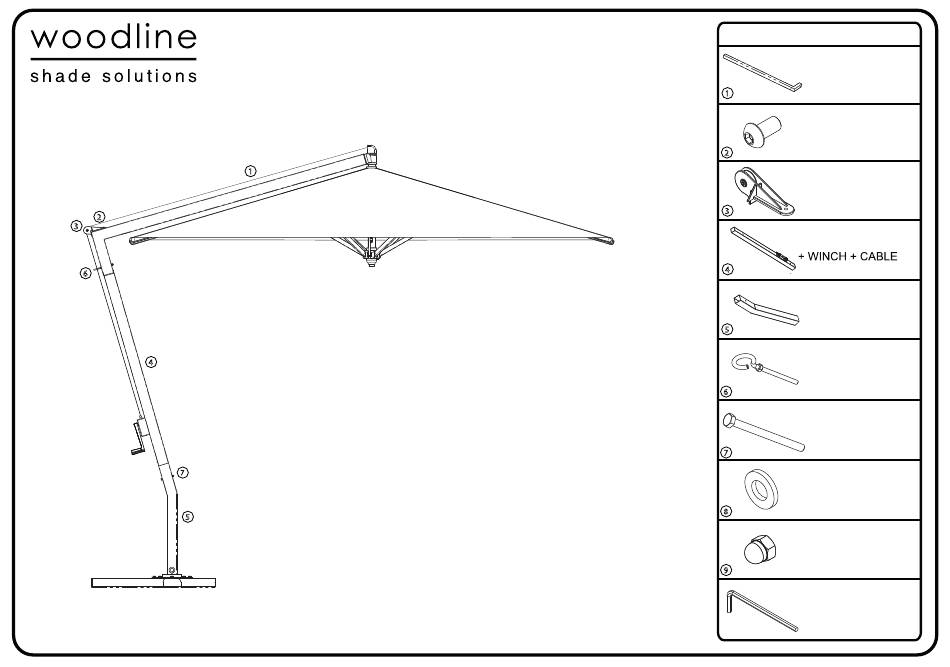

PARTS LIST
1 x HORIZONTAL
ARM WITH PIVOT
1
1 x BUTTON
HEAD SCREW
"ALREADY FITTED TO PART 1"
2
1 x CABLE PULLY
3
1 x WOOD MAST INSERT
4
1 x VERTICAL
ELBOW
5
1 x CABLE GUIDE
6
1 x BOLT M6
7
5 x WASHERS M6
8
2 x DOME NUTS M6
9
1 x ALLEN KEY
Advertisement
Related Manuals for Woodline PICOLLO
Summary of Contents for Woodline PICOLLO
- Page 1 PICOLLO WITH WOODEN PARTS LIST INSERT WITH WINCH 1 x HORIZONTAL MECHANISM (NO TILT) ARM WITH PIVOT (SEE OVERLEAVE FOR ASSEMBY DIAGRAM) 1 x BUTTON HEAD SCREW “ALREADY FITTED TO PART 1” 1 x CABLE PULLY 1 x WOOD MAST INSERT...
- Page 2 INSERT SCREW WITH STEP 2 STEP 1 PULLEY AT ANGLE. PICOLLO SCREW IN 3-4 TURNS, THEN FORCE PULLEY DOWN INTO PLACE AND MOVABLE ARM-ASSEMBLY TIGHTEN SCREW USING ALLEN KEY. DIAGRAM STEP 4 STEP 3 THE INSERT IS USED TO JOIN THE VERTICAL AND HORIZONTAL ARMS.
- Page 3 STEP 11 STEP 9 STEP 10 WARNING!! THE UMBRELLA SHOULD ONLY BE USED IN LIGHT TO MODERATE WINDS. UMBRELLA PRODUCTS SHOULD NEVER BE LEFT UNATTENDED WHEN OPEN! ONCE FRAME AND CANOPY ARE INSERTED PLACE CABLE OVER BACK PULLEY AND PULL DOWN TO SECURE HEAD PROPERLY. www.woodlineshade.com +27 (0)11 826 4033...
- Page 4 PICOLLO 06/12/17 CANOPY FOLDING INSTRUCTIONS HOW TO FIT YOUR COVER BAG CORRECTLY In order to avoid the canopy fabric from being jammed between the frame components, it is important to COVER BAG STICK pull the fabric out from the HOOK ROTATED...
