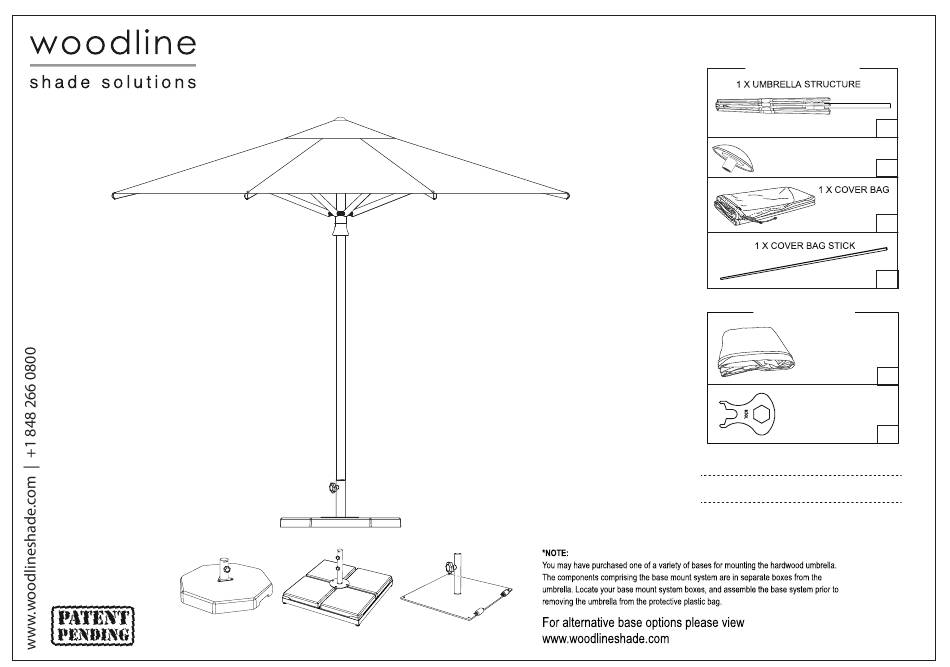

EASILIFT UMBRELLA
ASSEMBLY INSTRUCTIONS
Concrete Slab Base
Paver Base
Square Metal Base
EASILIFT 3/3/22
BOX CONTENTS
PACKED
1 X FINIAL (ATTACHED TO
PACKED
FRAME WITH ELASTIC)
PACKED
PACKED
CANOPY BAG
1 X CANOPY
PACKED
LOXX SPANNER
PACKED
PACKED
PACKED BY:
DATE:
CHECKED BY:
DATE:
1/6
Advertisement
Related Manuals for Woodline EA27RAS
Summary of Contents for Woodline EA27RAS
- Page 1 EASILIFT 3/3/22 EASILIFT UMBRELLA BOX CONTENTS ASSEMBLY INSTRUCTIONS PACKED 1 X FINIAL (ATTACHED TO PACKED FRAME WITH ELASTIC) PACKED PACKED CANOPY BAG 1 X CANOPY PACKED LOXX SPANNER PACKED PACKED PACKED BY: DATE: CHECKED BY: DATE: Concrete Slab Base Paver Base Square Metal Base...
- Page 2 EASILIFT 3/3/22 EASILIFT UMBRELLA - CORRECT PLACEMENT EA27RAS 8’10” 8’2” 7’1” 8’0” 3’1” 4’5” 2.7m 2.49m 2.17m 2.46m 0.93m 1.35m 8 ribs EA35RAS 11’5” 9’9” 7’5” 10’2” 2’9” 5’7” Canopy size: Round: size is measured from tip to tip through the center 3.5m...
- Page 3 EASILIFT 3/3/22 FITTING THE CANOPY: After assembling the base and making sure the fastening handwheel is loosened, remove the umbrella structure from the protective bag, remove all protective wrapping and place the umbrella pole into the base tube, tightening the handwheel to ensure the umbrella is secured. To fit the canopy you will require a step ladder (although this process can also be done while laying the umbrella structure on its side on a clean flat surface, taking special care not to dirty the canopy).
- Page 4 EASILIFT 3/3/22 TO OPEN THE UMBRELLA Make sure the umbrella strap is loose. Gently pull outwards and upwards on a rib end to begin raising the structure - once you reach a certain point the self-lifting mechanism will take over, opening the umbrella with hardly any effort required on the part if the user.
- Page 5 EASILIFT 3/3/22 COVER STICK HOLDER POUCH FOR STORAGE OF COVER BAG STICK WHEN THE UMBRELLA IS CLOSED provide extra protection to prolong the lifespan and preserve the color of the canopy. Cover bag stick can be placed in the special pouch within the cover bag for safe keeping.
- Page 6 EASILIFT 3/3/22 UV RESISTANT STAIN RESISTANT BLEACH SAFE STRONG & DURABLE MOLD RESISTANT EASY CARE www.woodlineshade.com | +1 848 266 0800...
