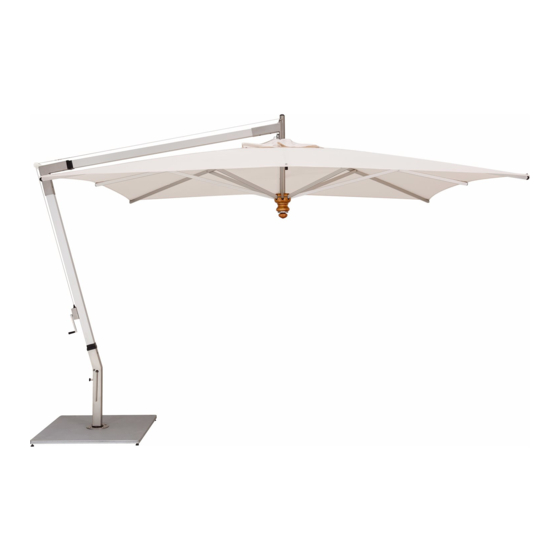

- Page 1 Locking Pin LOXX SPANNER (IN ZIPLOC BAG ATTACHED TO RUNNER ON THE UMBRELLA STRUCTURE)

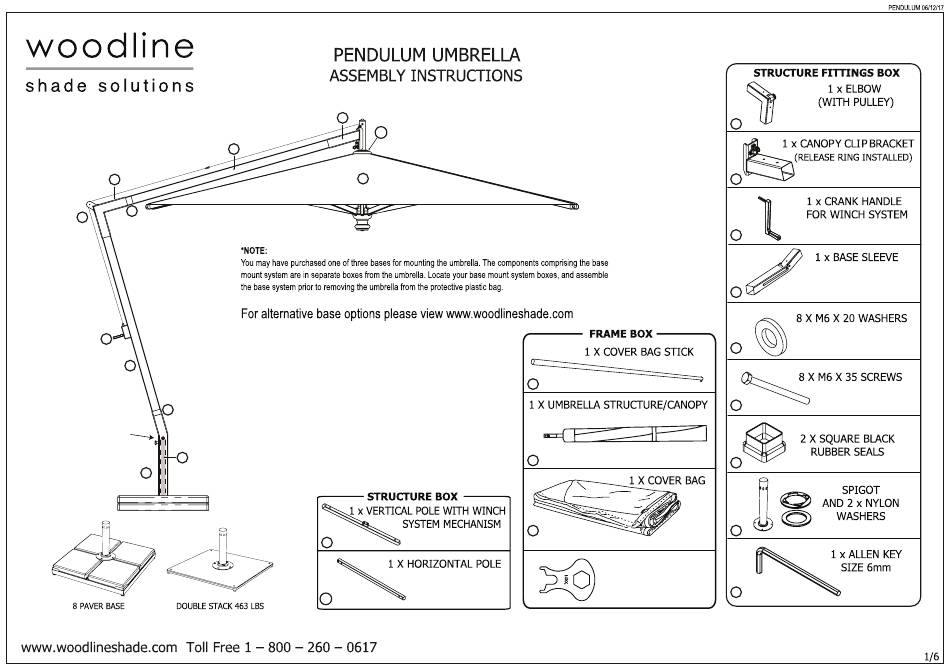

- Page 2 PENDULUM 06/12/17 STEP 1: STEP 2: STEP 4 Remove all bolts at ends of vertical and horizontal STEP 3 poles . Push small end of rubber seal onto end of pole with winch box. Connect base sleeve and vertical pole with winch box as illustrated, and fasten bolts with washers.
- Page 3 PENDULUM 06/12/17 STEP 7: STEP 8: Remove the protective cardboard ring from the bottom of the ribs. To attach the canopy ends to the rib ends, use your fingers to pull the top half of the LOXX fastener up, and place it onto the ball stud mounted in the rib.
- Page 4 PENDULUM 06/12/17 HOW TO FIT YOUR COVER BAG CORRECTLY CANOPY FOLDING INSTRUCTIONS COVER In order to avoid the canopy fabric from being jammed STICK between the frame VELCRO components, it is important to STRAP COVER BAG STICK pull the fabric out from the HOOK ROTATED umbrella structure by putting a UPWARD TO HOOK...
- Page 5 2.23 m 2.08 m 3.07 m 3.70 m 3.55 m 0.55 m 0.86 m 1.73 m A Canopy size: Round – size is measured from tip to tip through the center PE35SAS Square 11'5" 13'6" 7'9" 6'10" 10'1" 14'4" 12'8" 1'10"...
-
Page 6: Care And Maintenance
CARE AND MAINTENANCE Every Woodline shade solution is meticulously engineered to maximize not just their form and functions, but also to make sure that they outlast even the harshest conditions. Each item is crafted from the finest marine grade weather-resistant materials, specifically selected for their ability to endure.
