Owner's Manual

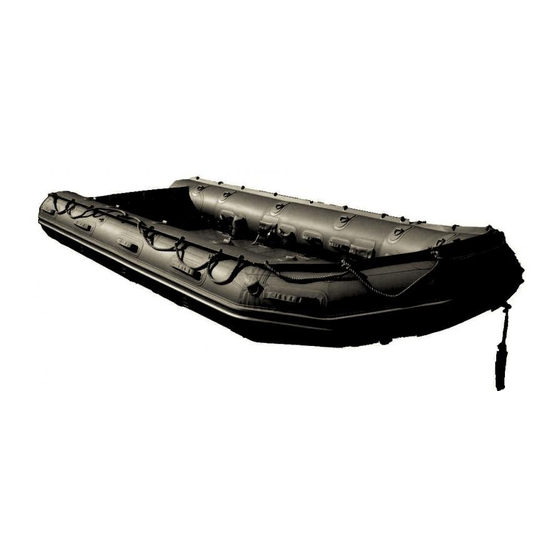

FUTURA COMMANDO
FC 470 EVO 7
Z65319
October 2013
READ THIS MANUAL CAREFULLY BEFORE USING YOUR BOAT.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Milpro FUTURA COMMANDO and is the answer not in the manual?

Questions and answers

Related Manuals for Zodiac Milpro FUTURA COMMANDO

Summary of Contents for Zodiac Milpro FUTURA COMMANDO

  • Page 1 Owner’s Manual FUTURA COMMANDO FC 470 EVO 7 Z65319 October 2013 READ THIS MANUAL CAREFULLY BEFORE USING YOUR BOAT.

  • Page 2: Table Of Contents

    VOLUME 2 • • • • READ THIS MANUAL CAREFULLY BEFORE USING YOUR BOAT. • • • • THIS OWNER’S MANUAL CONSISTS OF 2 VOLUMES THAT SHOULD BE KEPT TOGETHER. WARNING - The Owner’s Manual is divided into 2 volumes: - Volume 1 gives general rules of the road and boat use recommendations, which should be followed onboard during NOTE...

  • Page 3: Assembly Instructions

    ASSEMBLY INSTRUCTIONS To identify the boat, turn to the APPENDIX: Technical specifications (pages A-2, A-3) Descriptions (pages A-4 to A-10) ASSEMBLE BOAT IN THE ORDER WE RECOMMEND AND FOLLOW INSTRUCTIONS CAREFULLY. REFER TO THE PAGES INDICATED BELOW FOR STEP BY STEP INSTRUCTIONS. ATTENTION Assembly instructions and storage Page Section...

  • Page 4: The Inflation System

    INFLATION SYSTEM The inflation system is composed of: INFLATION PUMP WEGU BRAVO 9 (a) adapter (b) hose tip (c) hose base (d) air outlet (e) high pressure valve (f) cover To inflate: Place the hose tip in the air outlet. To inflate correctly, the pump should be flat on the ground.
  • Page 5 INFLATION SYSTEM (CON’T) KEEL AUTOMATIC INFLATION SYSTEM The keel automatic inflation system comes provided in a bag (in the boat). It permits the inflation of the keel from the Main Buoyancy Tube. This is achieved through the accessory composed of two banjo fittings, one into the bow of the main buoyancy tube &...
  • Page 6 INFLATION SYSTEM (CON’T) RAPID INFLATION PORTS - SCUBA (1) Screw on valve cover (2) ‘O’ ring (3) Valve base is part of the boat. The rapid inflation valve ports allow the boat to be inflated using a SCUBA cylinder and an optional quick inflation system.

  • Page 7: Boat Assembly

    BOAT ASSEMBLY ASSEMBLE THE BOAT ON A SMOOTH CLEAN SURFACE HIGH PRESSURE DECK ASSEMBLY Illustrations in APPENDIX page A-6 The H2P, 70 – 2¾”, High pressure floor (Fig 1) is a fast deployment inflatable structure designed to work with the FC 470® Evo 7, whose main attribute is to be inflated completely with a 100ft³ off the shelf SCUBA bottle.
  • Page 8 12 o'clock and verifying the boats pressure with the pressure gauge by inserting it into any one of the I/C valves and topping up boat if necessary. ALL ZODIAC BUOYANCY TUBE OPERATIONAL PRESSURE MUST BE 240 mbar = 3.4 PSI (+/- 5%)
  • Page 9 AIR PRESSURE Before checking the boat’s air pressure, turn all I/C valves to the NOTE "INFLATION POSITION" (“red area”). at 12 o’clock, Operating pressure for the buoyancy tube and the keel is 240 Mbar / 3.4 PSI (+/- 5%) Operating pressure for the H2P is 1100 mbar / 15.95 PSI (+/- 20%) How to foresee pressure changes: Check and adjust the pressure in the compartments (by inflating or deflating) when noticeable temperature changes occur, especially in tropical areas where important temperature variations occur between morning and night.
  • Page 10 AIR PRESSURE (CON’T) RISK OF OVER PRESSURE OR OVER INFLATION Example: The boat is inflated to the recommended pressure (240mb / 3.4PSI) at the beginning or end of the day, low outdoor temperature =10°C/50°F. Later in the day, the boat is exposed to full sunlight 50°C/122°F, either on the beach or on deck.

  • Page 11: Wash, Clean, Deflate And Boat

    WASH – CLEAN – DEFLATE AND BOAT STORAGE WASH AND DRY THE BOAT BEFORE STORING IT - or - DEFLATING IT FOR STORAGE: Remove all equipment & rinse the boat with fresh water (do not get water inside of the foot pump). Wash the boat with mild soap &...

  • Page 12: Boat Deflation And Folding

    BOAT DEFLATION AND FOLDING Place the boat in the bag using the following procedures (Fig. 4): Place the folded boat over its bag. Fold over the top and buckle the lanyards. Tighten the lateral tightening cords, making sure no accessories are sticking out. Fig.

  • Page 13: General Information

    O-rings, and calibrate them where applicable. Service all I/C valves every 6 months or as required. Change all O-rings every 12 months, as that is their life expectancy. Check, clean and grease the intercommunicating valves with Triple-Guard grease Zodiac P/N Z65134.
  • Page 14 TEST DURATION : 24:00 hours minimum As specified in I.S.O 6185, authorized pressure drop is 20% in 24 hours. For buoyancy tubes whose operating pressure is 240 Mbar, Zodiac allows the following tolerances. Boats between 0 & 1 year 12,5% or 30 Mbar Per 24 hours Boats between 1 &...
  • Page 15 GENERAL INFORMATION (CON’T) Second Example: When temperatures rise: Date Time Pressure Temp Jan 01 16:00 240 mbar 20°C Jan 02 16:00 210 mbar 25°C Difference 24hrs 30 mbar + 5°C x 4 = -20 (when pressure rises: subtract!) Result 210 mbar = 190 mbar Corrected Pressure = 240 mbar –...

  • Page 16: Optional Accessories

    OPTIONAL ACCESSORIES ROLL UP FLOOR Illustrations in APPENDIX page A-7 The slatted floorboard decking, arranged in a folding mat (Fig. 1), is completely removable and is able to roll up normally with the fold of the boat. It is constructed as a single, mat-type roll-up flooring system consisting of slats made from anodized aluminum that are factory covered with wear-proof fabric.
  • Page 17 OPTIONAL ACCESSORIES (CON’T) Place the aft element (5) against the transom (6). (fig.2). Place elements (3) and (4) in a pointed “roof” (or a Teepee) position (Fig. 2). Make sure the elements are straight and lined up. Flatten the “roof” by getting into the boat and pulling UP on the grab lines (this prevents the fabric from getting pinched (Fig.
  • Page 18 OPTIONAL ACCESSORIES (CON’T) FC470 EVO 7 QUICK INFLATION SYSTEM Illustrations in APPENDIX page A-11 to A-12 INFLATION PRESSURE OF THE BUOYANCY CHAMBER, KEEL AND SMALL BUOYANCY CHAMBERS: 240 mbar (3.4 PSI) INFLATION PRESSURE OF THE DECK: 1100 mbar (15.95 PSI) NOTE INSTALLING THE QUICK INFLATION SYSTEM: Connect up the inflation system:...
  • Page 19 OPTIONAL ACCESSORIES (CON’T) INFLATION WHILE SAILING: When sailing, you can selectively reinflate the buoyancy chamber or the deck. Inflating the buoyancy chamber, the keel or the small buoyancy chambers: Remove the plugs from the buoyancy chamber overpressure valves. Close the deck inflation valve on the quick inflation system. Check that both buoyancy chamber inflation valves are open.
  • Page 20 OPTIONAL ACCESSORIES (CON’T) INFLATION – NAVIGATION The boat inflates in about 3 minutes at 20 °C (70 degrees F). Do not prevent unfolding. Open the carrying bag and lightly unroll the boat on a flat surface, to reach the SCUBA first stage air control inflation tap.
  • Page 21 APPENDIX APPENDIX Technical Specifications A2-A3 Description A4-A5 Illustrations : Boat assembly A6-A8 Inflation system A9-A10 Optional components A11-A12...

  • Page 22: Technical Specifications

    TECHNICAL SPECIFICATIONS FC470 EVO 7 FC 470 EVO 7 FC 470 EVO 7 ALUMINIUM H2P FLOOR ROLL UP FLOOR FLOOR 4,70 m 15’5’’ (ft) 3,40 m 11’2’’ (ft) 1,90 m 6’3’’ (ft) 0,90 m 2’11’’ (ft) 0,50 m 20’’ (ft) (ISO 6185) 10 man 1250...
  • Page 23 TECHNICAL SPECIFICATIONS All weights, measures and dimensions indicated, have a tolerance of ± 3% NOTE * The maximum payload has been calculated according to ISO 6185 standards. Operating at or near maximum payload is only advised in calm water and at reduced speeds. ** The weights indicated do not include accessories *** Suggested engine HP correspond to the most efficient use of the boat with an average load.

  • Page 24: Description

    DESCRIPTION FC 470 EVO 7...
  • Page 25 DESCRIPTION English Bow deflation valve Main Buoyancy Tubes Inflatable keel Accessory pouch H2P inflation/deflation valve Inter Communication valve H2P High pressure floor Paddle sheath D ring Over pressure valve H2P fast inflation valve Bottle sheath Lower tube clamp Heavy Duty tow-rings Fast Inflation valve Floor stop block Inter Communication valve...
  • Page 26 BOAT ASSEMBLY Retaining straps Transom batten Figure 1 Securing cuffs Transom batten retaining groove Figure 2 Transom batten Securing cuffs Retaining buckle Figure 3 Retaining strap Figure 4 Connection between bow skirt and H2P floor...
  • Page 27 BOAT ASSEMBLY Figure 1 Connection between bow skirt and roll up floor Retaining batten profile M6 x 35mm bolt Aluminium slat Figure 2 Transom Figure 3 Fabric floor Figure 4...
  • Page 28 BOAT ASSEMBLY Fig. 1-A Fig. 1-B a – floorboards Floorboard b – hull/main buoyancy tubes male/female c – corner reinforcement flange assembly d – bottom-hull Fig. 2 : Make a tent & step on it to push boards down Fig. 4 Fig.
  • Page 29 INFLATION SYSTEM Figure 1 Figure 2 Figure 3 Clamp...

  • Page 30: Inflation System

    INFLATION SYSTEM INFLATION Gonflement Inflation Intercommunication valve Clamp Keel automatic inflation valve Overpressure OPEN valve NAVIGATION Gonflement Inflation Intercommunication valve Clamp Keel automatic inflation valve Overpressure valve CLOSED...
  • Page 31 OPTIONAL COMPONENTS QUICK INFLATION SYSTEM Starboard buoyancy Port buoyancy chamber Quick inflation Quick inflation valve - chamber inflation valve inflation valve valve - port starboard IN CLOSED POSITION IN OPEN POSITION Quick inflation Deck inflation valve valve - deck in closed position Pressure Diameter reduction adaptor reducing valve...

  • Page 32: Optional Components

    OPTIONAL COMPONENTS Scuba bottle connection: To H2P fast inflation valve To starboard fast inflation valve To SCUBA botle To port fast inflation valve VENTURI QUICK DEFLATION SYSTEM (4) Pressure reducer (3) Air compressed feed hose (1) Connecting hose to Venturi (2) Venturi Deflation Valve...
  • Page 33 32 bis, boulevard Haussmann 75009 PARIS Z65319 October 2013 © ZODIAC MILPRO INTERNATIONAL...
