Pace Technologies MEGA-T300S Instruction Manual
  1. Manuals
  2. Brands
  3. Pace Technologies Manuals
  4. Cutter
  5. MEGA-T300S
  6. Instruction manual

Pace Technologies MEGA-T300S Instruction Manual

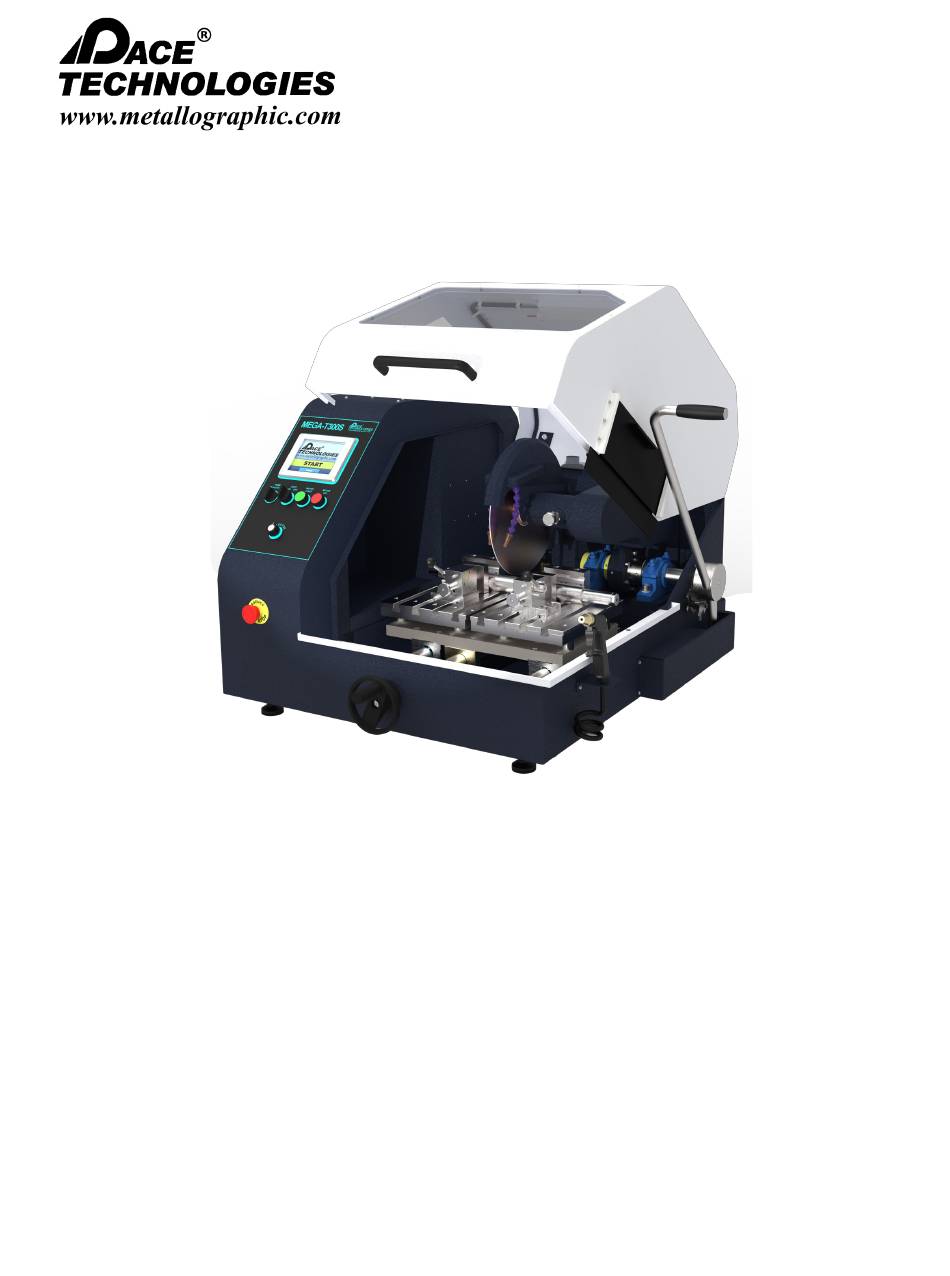

300 mm (~12-inch) manual abrasive cut-off machine
Hide thumbs

Advertisement

Quick Links

Download this manual
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲
3601 E. 34th St. Tucson, AZ 85713 USA Tel. +1 520-882-6598 Fax +1 520-882-6599 email: pace@metallographic.com
Equipment Type:
Model:
Electrical Requirements:
Frequency:
Motor Horsepower:
Manual Revision Date:
Please read this instruction manual carefully and follow all installation, operating and safety guidelines.
Abrasive Cutter
300 mm (~12-inch)
Manual Abrasive Cut-off Machine
MEGA-T300S
208Y / 380 Volts (3-phase)
50/60 Hz
5.5 hp (4 KW) (3-phase)
October 10, 2021
MEGA-T300S
I
M
NSTRUCTION
Web: http://www.metallographic.com
This instruction manual is
provided with each piece of
delivered equipment.
ANUAL

Advertisement

loading

Related Manuals for Pace Technologies MEGA-T300S

Summary of Contents for Pace Technologies MEGA-T300S

  • Page 1 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 2 Technologies option, of any PACE Technologies Product or part which proves to be defective as provided herein. PACE Technologies reserves the right to either inspect the product at Buyer’s location or require it to be returned to the factory for inspection. Buyer is responsible for freight to and from factory on all warranty claims.
  • Page 3 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...

  • Page 4: Table Of Contents

    MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...

  • Page 5: Product Description

    1.0 Product Description The MEGA-T300S is equipped with a powerful belt driven servo motor. In The MEGA-T300S is a manual wheel feed addition, the motor has an inductive brake or table feed abrasive cut-off machine for for faster stopping of the blade (approx. 2 cutting materials ranging from soft seconds).
  • Page 6 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 7 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 8 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 9 3601 E. 34th St. Tucson, AZ 85713 USA Tel. +1 520-882-6598 Fax +1 520-882-6599 email: pace@metallographic.com Web: http://www.metallographic.com 1.3 Mechanical Schematic Note: Installation of the MEGA-T300S should be on a flat sturdy surface, with easy access to electrical connections. Please read this instruction manual carefully and follow all installation, operating and safety guidelines.
  • Page 10 Measures WxHxD: Approx. 36 x 40 x 35-inch Weight: Approximately 550 lbs. 2.2 Shipping When moving crate, lift from bottom. To move MEGA-T300S use support bars provided with the machine. The MEGA-T300S is constructed of sensitive electronic and mechanical components. Do not drop.
  • Page 11 3601 E. 34th St. Tucson, AZ 85713 USA Tel. +1 520-882-6598 Fax +1 520-882-6599 email: pace@metallographic.com Web: http://www.metallographic.com 2.3 Installation Install unit carefully! Improper installation voids warranty. Main The MEGA-T300S should be placed on a flat stable surface. Power Connect coolant tank supply, drain and electrical connections.
  • Page 12 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...

  • Page 13: Safety Guidelines

    Make sure that the cut-off blade is rotating down and into the sample. 3.3 Emergency Statement The MEGA-T300S abrasive cutter has been designed for cutting metallographic specimens. DO NOT CUT oversize samples. Always follow proper operational guidelines and avoid contact with moving parts, lubricants and abrasives. Seek appropriate medical care for cutting injuries.
  • Page 14 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲ 3601 E. 34th St. Tucson, AZ 85713 USA Tel. +1 520-882-6598 Fax +1 520-882-6599 email: pace@metallographic.com Web: http://www.metallographic.com Recirculation tank The MEGA-T300S is equipped with a Electrical coarse filter to remove large particulate Pressure...
  • Page 15 3601 E. 34th St. Tucson, AZ 85713 USA Tel. +1 520-882-6598 Fax +1 520-882-6599 email: pace@metallographic.com Web: http://www.metallographic.com 3.4 Safety Tests Examine and verify that the MEGA-T300S safety devices and operating performance are in good working condition prior to use. The following safety checks are...

  • Page 16: Start-Up And Operation

    3601 E. 34th St. Tucson, AZ 85713 USA Tel. +1 520-882-6598 Fax +1 520-882-6599 email: pace@metallographic.com Web: http://www.metallographic.com 4.0 Start-up and Operation 4.1 General The MEGA-T300S is a manual wheel and manual table feed cutter. 4.2 Control Panel Information Screen...
  • Page 17 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 18 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 19 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 20 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 21 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...

  • Page 22: Maintenance

    5.0 Maintenance 5.1 Introduction The recommended maintenance for the MEGA-T300S includes the following: 1. Use an anti-corrosion cutting fluid such as the MAXCUT 2 cutting fluid. It is recommended that the cutting fluid be changed every 50 cuts or weekly for maximum effectiveness.

  • Page 23: Trouble Shooting

    MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 24 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 25 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 26 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 27 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 28 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 29 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 30 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 31 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 32 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 33 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 34 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 35 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 36 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 37 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 38 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 39 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 40 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 41 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 42 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 43 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 44 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 45 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 46 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 47 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 48 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 49 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 50 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 51 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 52 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 53 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 54 MEGA-T300S Abrasive Cutter NSTRUCTION ANUAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
