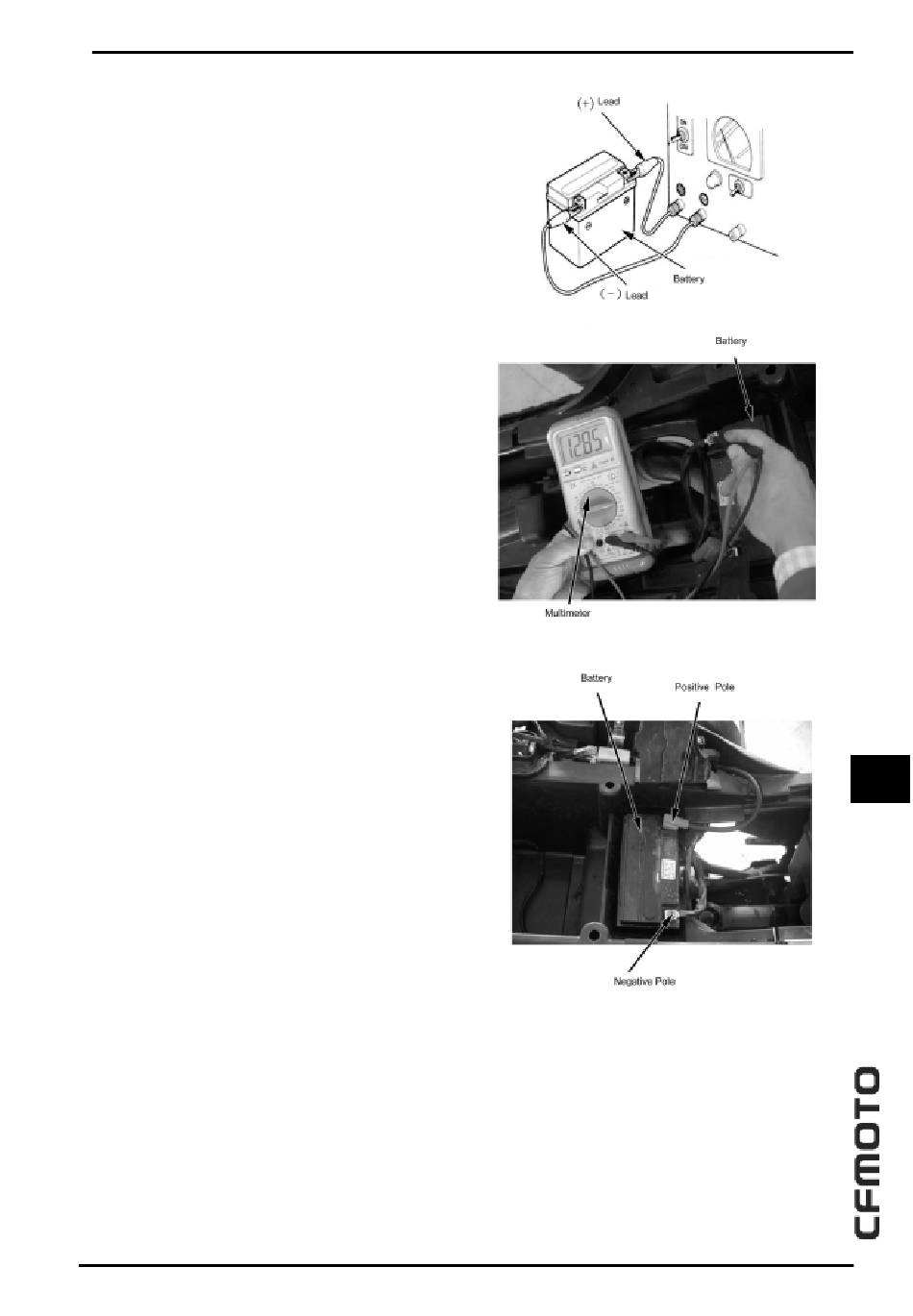

Connect charger's positive wire to battery's positive
pole.
Connect charger's negative wire to battery's negative
pole.
Charging current/time: Standard: 0.9A/5~10hours
Note:
Keep the electrolyte temperature under 45¡æ
Reduce current to adjust the temperature if it is too
high.
Fast charge will reduce battery's life or cause
damage to battery. Do not use fast charge unless in emergency case.

Inspection of Charging System

Inspect charging status
Remove battery (-15-4) and install a fully charged
battery.
Keep ignition switch at "OFF" position.
Connect voltmeter between battery's terminals after
engine is started and warmed up.
Note:
Avoid short circuit when measuring
Overvoltage may be generated when removing or
joining the battery terminals with switch ON and
will damage the multimeter and the electrical parts.
Operation should be done with ignition switch OFF.
Use a fully charged battery for inspection.
Start engine and turn on high beam.
Increase engine speed slowly. Check voltage between
battery terminals.
Voltage between terminals at engine speed of
(5000r/min): 13.5-15V
Standard:
Battery's monomer voltage
<charging voltage<15V (5000rpm)
Electric Leakage Test
Remove seat (-2-3)
Remove battery fixing plate (--2-3)
Open battery cover
Keep ignition switch at the "OFF" position, and remove
negative wire from battery.
Fast charge: 4.0A/60mins
11 Battery,Charging System
11 11 11 11 11
11-5
