Summary of Contents for Uniden NVR - 8

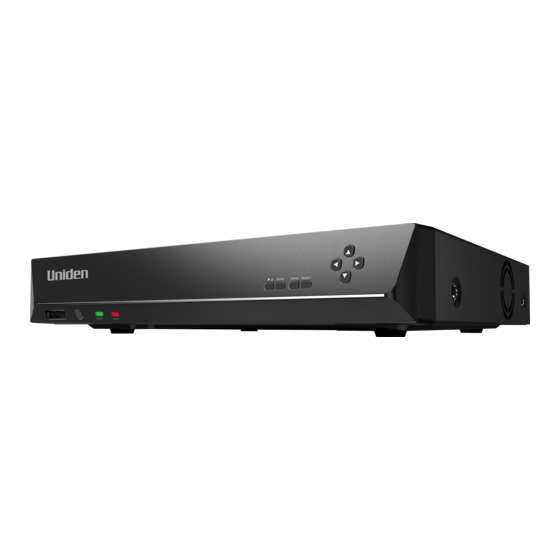

- Page 1 App Cam 4K NVR - 8/16 Quick Start Guide...
-
Page 2: What's In The Box
What’s in the Box App Cam 4K NVR NVR Power Adaptor 1m Ethernet Cable USB Mouse Quick Start Guide HDMI Cable... -
Page 3: General Introduction
General Introduction USB Port QUAD MENU SELECT Power LED HDD LED Control Panel USB Port Power Switch Audio Out Power Input AUDIO DC48V HDMI HDMI Port VGA Port LAN Port PoE Ports* Note: App Cam 4K NVR-8 has only 8 x PoE Port while App Cam 4K NVR-16 has 16x PoE Port. The actual appearance and components may vary. -
Page 4: Connection Diagram
Connection Diagram Connect the NVR (LAN port) to your router with an Ethernet cable. Next, connect the mouse to the AUDIO DC48V HDMI USB port of the NVR. Connect the NVR to the monitor HMDI with a VGA or HDMI cable. Note: AUDIO AUDIO... - Page 5 Connect the NVR to a power outlet and turn on power switch. AUDIO DC48V HDMI Note: Cameras are not included in the package. App Cam 4K Bullet and App Cam 4K Dome cameras are compatible with Uniden App Cam 4K NVR.
- Page 6 Search “Uniden Solo” in App Store (for iOS) or Google Play (for Android), download and install the app. Launch the Uniden App, add the system and follow the instructions on the app to access the NVR.
-
Page 7: Troubleshooting
Troubleshooting No Video Output on the Monitor If there’s no video output on the monitor from Uniden, please try the following solutions: • TV/monitor resolution should be at least 720p or above. • Double check the HDMI/VGA connection, or swap another cable or monitor to test. -
Page 8: Specifications
Specifications Model App Cam 4K NVR-8 IP Video Input PoE IP Camera x 8 Video & Audio Input Audio Input Cameras with Built-in Mic HDMI Output 3840x2160, 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768 Video & Audio Output VGA Output 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768 Audio Output 1CH RCA Live View/Playback Resolution... - Page 9 Model App Cam 4K NVR-16 IP Video Input PoE IP Camera x 16 Video & Audio Input Audio Input Cameras with Built-in Mic HDMI Output 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768 Video & Audio VGA Output 1920x1080, 1280x1024, 1280x720, 1024x768 Output Audio Output 1CH RCA Live View/Playback Resolution...
-
Page 10: Warranty
Accessories 90 Days If a warranty claim is made, this warranty will not apply if the Product is found by Uniden to be: A. Damaged or not maintained in a reasonable manner or as recommended in the relevant Owner’s Manual;... - Page 11 Product does not conform with this warranty, you should deliver the Product, together with satisfactory evidence of your original purchase (such as a legible copy of the sales docket) to Uniden. Please refer to the Uniden website for address details. You should contact Uniden regarding any compensation that may be payable for your expenses incurred in making a warranty claim.
- Page 12 THANK YOU FOR BUYING A UNIDEN PRODUCT © 2021 Uniden Australia Pty Limited V1.0 Printed in PRC...
