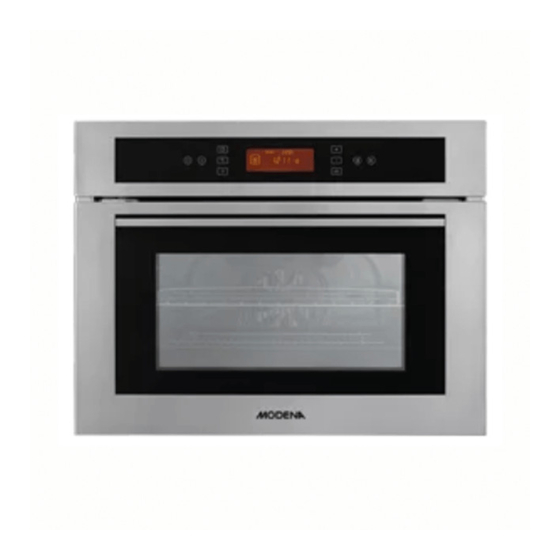

- Page 1 NOMOR: IMKG.545.02.2020 User Manual Book Built – In Steam Oven Vicino Series BT 6435 BT 3435...
-
Page 2: Table Of Contents
: Name Of Parts Part 3 : Installation Part 4 : How To Use Part 5 : Maintenance Part 6 : Troubleshooting Part 7 : Precaution Action Part 8 : Spesification Thisguidebookexplainseverythingyouneedtoknowaboutyournewproduct.Pleasecontactou rCustomer Care should you need further assistance through www.modena.com. -
Page 3: Part 1 : Safety Warnings
PART 1 : SAFETY WARNINGS • Please independently use sockets with rated current above 16A. Reliable grounding must be guaranteed. Please do not use loose or poor contact power sockets, or it easily leads to electric shock, short circuit and fire; if the equipment share one socket with other electric appliances, fire may be caused for abnormal heating. -
Page 4: Part 2 : Name Of Parts
PART 2 : NAME OF PARTS BT 3435 Notes : Control Panel Shelves Support Steam Tray Steam Plate Oil Receptor Plate Door Hinge Receiving Tank Door Water Tank Control Panel Notes : On / OffKey Program Key Lamp Key Timer Key Temperature Setting Key Display Screen Plus Key... - Page 5 BT 6435 Notes Control Panel Water Tank Gate Control Switch Steaming Rack Steaming Plate Oil Receive Tray Door Hinges Water Catcher Door Panel kontrol Notes Power On / Off Key Increase Key Function Selection Key Decrease Key Lighting Key / Child Lock Key Presetting Key / Key for opening water tank Temperature Regulating Key...
-
Page 6: Part 3 : Installation
Please keep this guide book in an easy place to find, so it will be easier if necessary to use at any time. Include this guide book if you are handing the appliance over. • Ifyoudonotunderstand abouttheinstallation of steamoven, youshould contact MODENA Call Centerto perform theinstallation. •... - Page 7 Insert oven into the kitchen set space by installing a screw type A into the four holes in the steam oven. Screws can be found on the side of the oven frame. Connect the power plug to the wall outlet and the oven is ready to use. For the most efficient air circulation, the steam oven must be installed in accordance with the dimensions shown in Picture 1-2.
-
Page 8: Part 4 : How To Use
PART 4 : HOW TO USE BT 3435 Starting the steam function Step1:Pressthepowerkey , the display will light up and appliance is in standby mode. Step 2: Pressthe Time Set button twice, cooking time will be shown on the lower left screen. Step 3: Press the key key,setthedesiredcookingtime,thenpressthe"OK"keytoconfirm. - Page 9 Descaling function Firstly, take out the water tank, inset detergent and fill it with water halfway. Install the tank on the tank support insidethesteamoven,closethedoor,press button and choose to startthefunction. Display screen will show symbol, then choosedescaling function. Setthealarm, then thedisplay willshow tap icon When the alarm goes off,take out watertank,refill halfway and reinstall on the tank support.
- Page 10 Rapid Heat up When you select a pure grill and the setting temperature exceeds 100 degrees and the pre – heat function completed,usercanpressthekeytostarttherapidheat- upmode.Thisfunctionwillusecircleheatingelement + total grill heating element + fan with power of 230V / 3050 W BT 6435 Quick Start Enable The Heating Function Step II: Press "...
- Page 11 Detailed Instructions Standard time setting (clock function) When the equipment is electrified for the first time, or when it is standby, the user can keep pressing the key " ", and then the clock on the display screen will flicker. And then the user can press key “...
- Page 12 Ring Upper Back Upper Upper Heating Function Upper Heating Evaporating Heating Heating Heating Coil + Steam Unfreezing Heating Coil + Fan Coil + Coil + Coil Fan + with fan + Steam Coil Descaling Steam Steam +Fan Default 50°C 220°C 220°C 220°C 100°C 120°C...
-
Page 13: Part 5 : Maintenance
Selecting container materials Select the appropriate containers depending on the food. Use a non-toxic materials especially those that will endure high temperature, and remove the lid when using the containers with steam oven. It is advised to use provided containers such as steam platter. These are the recommended containers: •... -
Page 14: Part 6 : Troubleshooting
Broken pumps MODENA Call Center. Appliance is in Child Lock mode Deactivate Child Lock mode Control panel cannot Broken operation board Call MODENA Call Center. be operated Putting the lid on the food Remove the lid Steaming unfamiliar No steam generated Call MODENA Call Center. -
Page 15: Part 8 : Spesification
However, if there is damage on the appliance, do not try to fix it yourself. Repairs that carried out by inexperienced person could potentially cause injuryor further damage to the appliance. Contact MODENA Call Center for repair. • Do not lay or lean heavy objects on the oven door. - Page 16 08/21...
