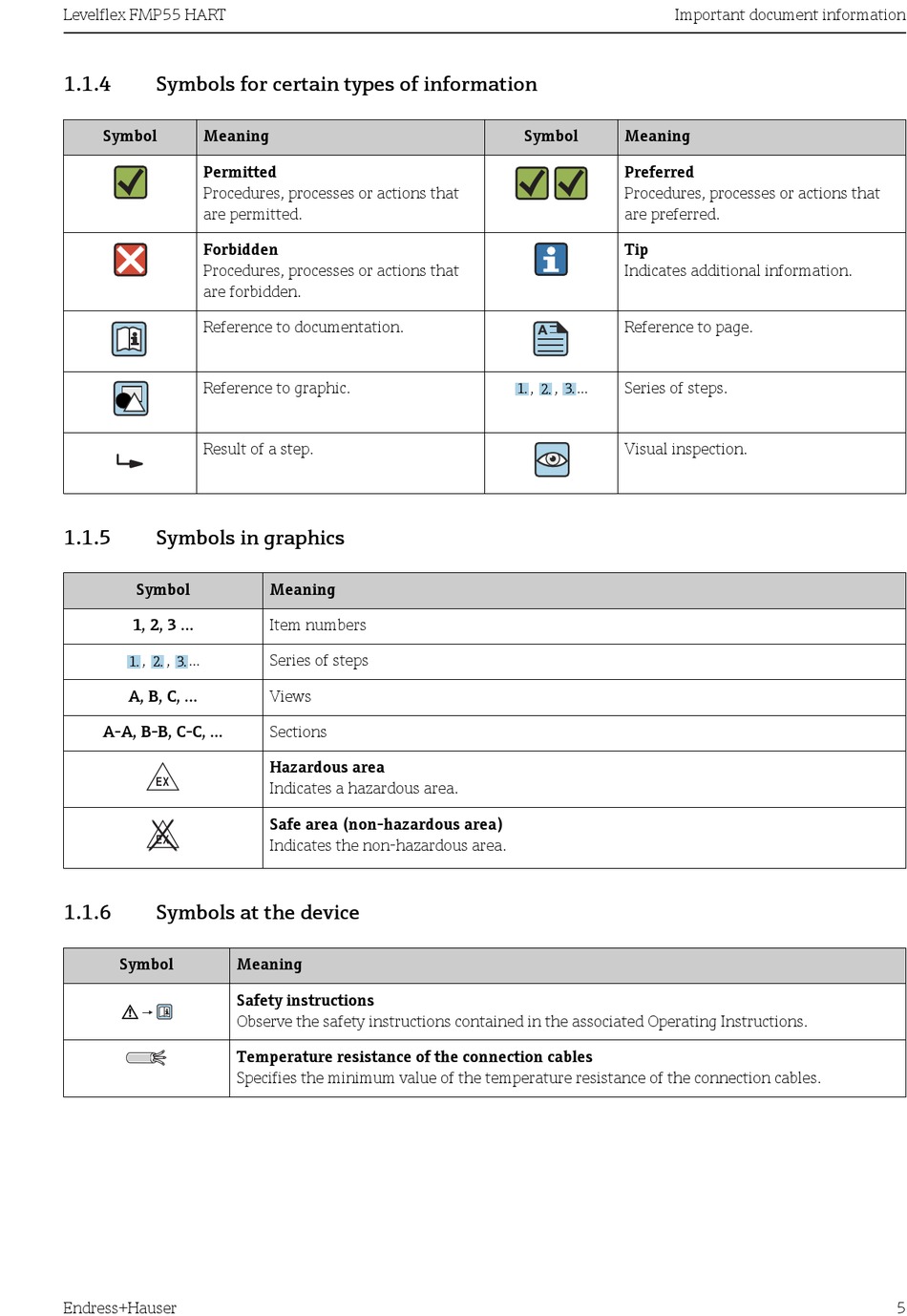

Levelflex FMP55 HART
1.1.4
Symbols for certain types of information
Symbol
Meaning
Permitted
Procedures, processes or actions that
are permitted.
Forbidden
Procedures, processes or actions that
are forbidden.
Reference to documentation.
Reference to graphic.
Result of a step.
1.1.5
Symbols in graphics
Symbol
1, 2, 3 ...
,
,
...
1.
2.
3.
A, B, C, ...
A-A, B-B, C-C, ...
-
.
1.1.6
Symbols at the device
Symbol
Endress+Hauser
Meaning
Item numbers
Series of steps
Views
Sections
Hazardous area
Indicates a hazardous area.
Safe area (non-hazardous area)
Indicates the non-hazardous area.
Meaning
Safety instructions
Observe the safety instructions contained in the associated Operating Instructions.
Temperature resistance of the connection cables
Specifies the minimum value of the temperature resistance of the connection cables.
Important document information
Symbol
Meaning
Preferred
Procedures, processes or actions that
are preferred.
Tip
Indicates additional information.
Reference to page.
A
,
,
...
Series of steps.
1.
2.
3.
Visual inspection.
5
