Levelflex FMP55 HART
Mounting the electronics housing
A
122 (4.8)
161 (6.34)
4

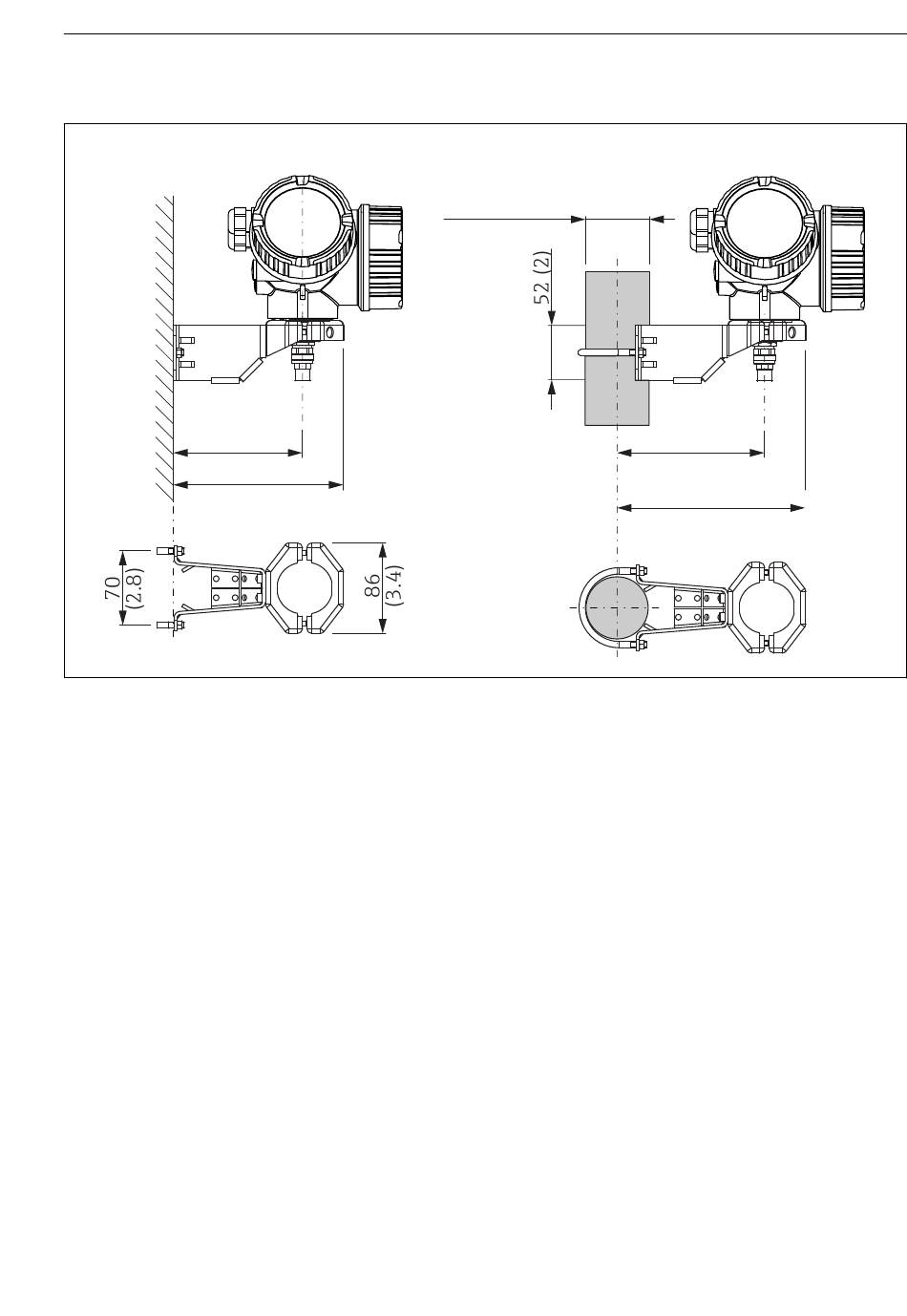

Mounting the electronics housing using the mounting bracket; dimensions: mm (in)
A
Wall mounting
B
Pipe mounting
Connecting the cable
Required tools:
Open-end wrench 18AF
Endress+Hauser
B
ø42...60
(1.65...2.36)
127...140
(5...5.51)
162...175
(6.38...6.89)
Mounting
A0014793
17
